Zorro
Radiomaster
Name | Value |
---|---|
Price | 99.9 |
Weight | 350 |
Display | 128*64 Monochrome LCD |
Gimbals | Hall-effect |
Module | Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
Battery | 2 x 18350 (Not included) |
Protocol | ELRS |
Sticks type | M3 |
Description

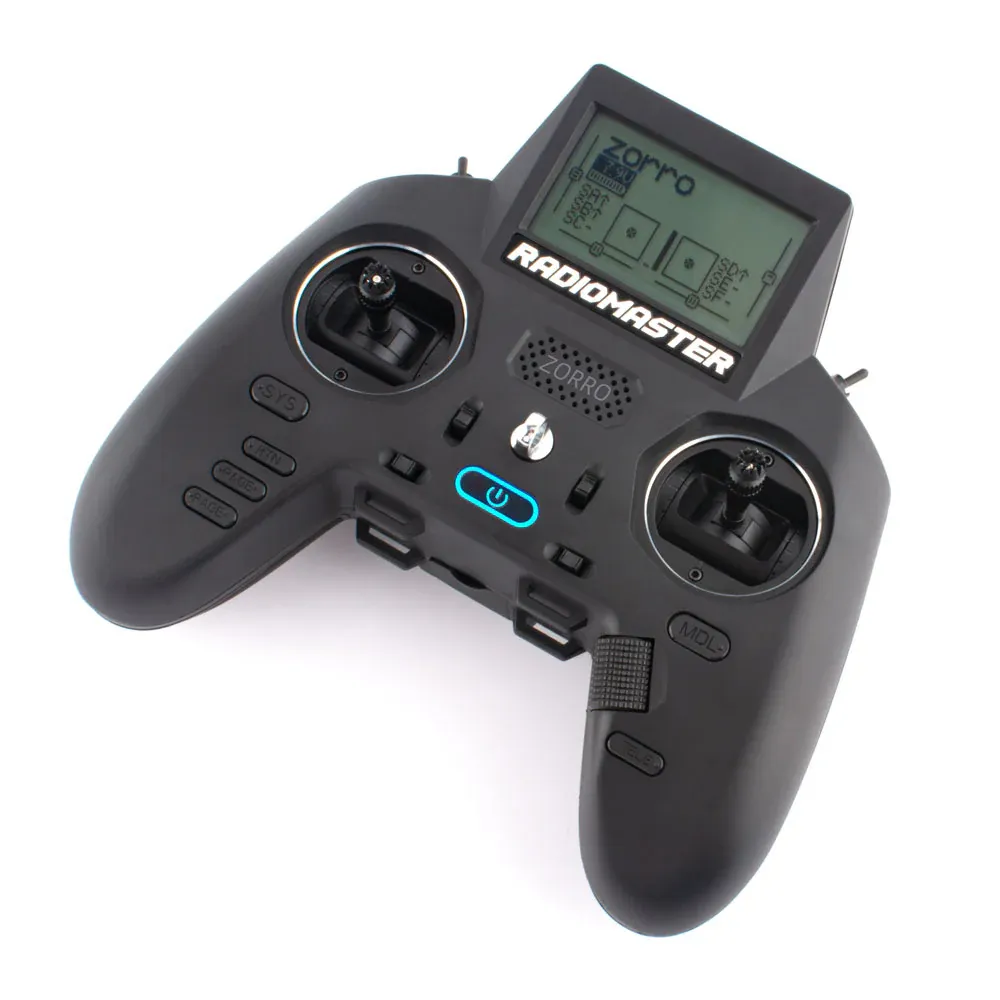

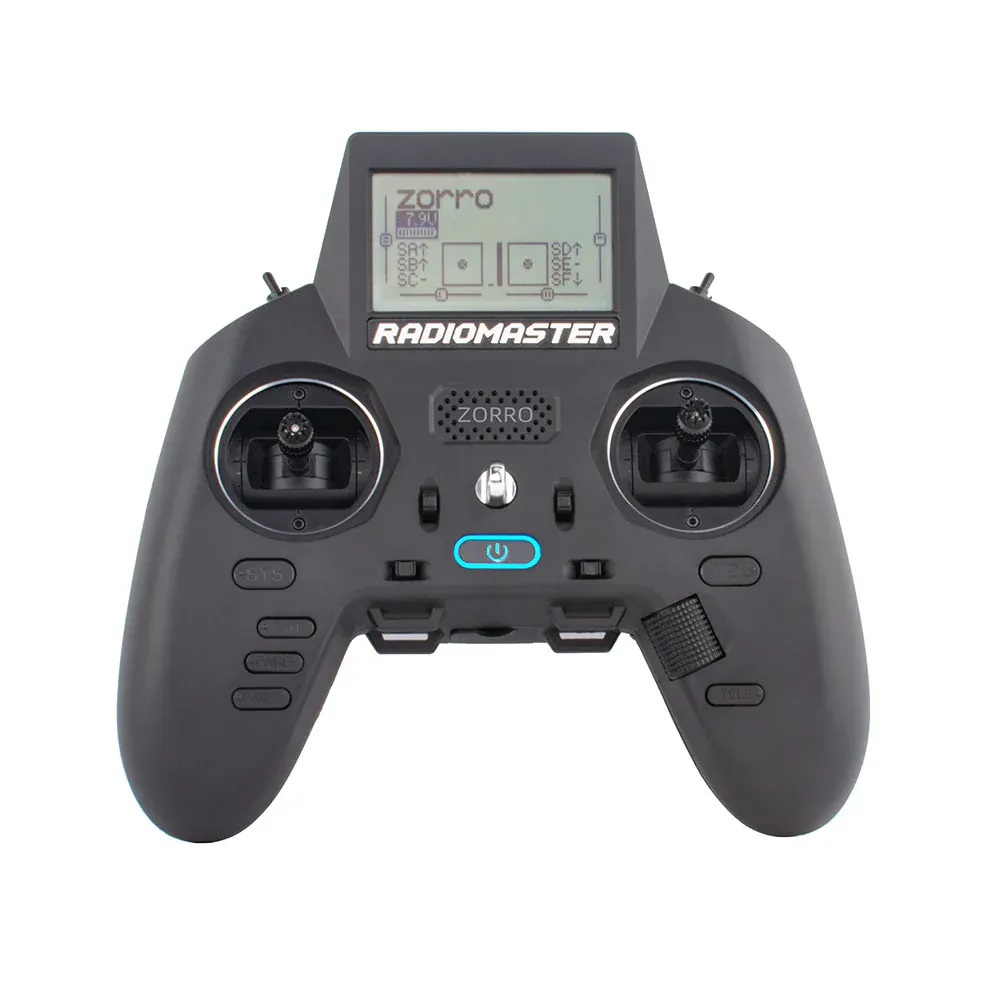

RadioMaster Zorro Radio Controller
The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMaster's 7 button menu navigation system, headphone audio output, external power source input and a host of RF options, the RadioMaster Zorro is set to change the game once again.
Specifications
Versions
- CC2500
- 4-in-1
- ELRS
- ELRS Starter Set
- CC2500 + TBS Nano Crossfire Combo
Physical Dimensions
- Size: 170x159x108mm
- Weight: 350 grams
Operating Frequency
- 2.400GHz-2.480GHz
Internal RF Options
- CC2500 multi-protocol
- 4-in-1 multi-protocol
- ELRS
Supported Protocols
- CC2500: Module dependent
- 4-in-1: Module dependent
- ELRS: ELRS
- CC2500 + TBS: Module dependent
RF Power
- CC2500: Default 100mW
- 4-in-1: Default 100mW
- ELRS: Default 100mW
Antenna Gain
- Folding: 2db
Operational Current
- 160mA @ 8.4V
Operational Voltage
- 6.6-8.4V DC
Control Distance
- > 2km
Operating System
- OpenTX / EdgeTX Compatible
Control Channels
- Maximum: 16 (Rx dependent)
Display
- 128x64 Monochrome LCD
Battery
- 2 x 18350 (Not included)
Charging
- Built-in USB-C Charging
Gimbal
- Hall-effect
Module Bay
- Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade Method
- Via USB or SD card
Versions
FCC Version and EU LBT Version
Standard FCC Version
- CC2500 (FCC): Supports all CC2500 protocols
- 4-in-1 (FCC): Supports all MPM protocols
- ELRS (FCC): Pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)
EU LBT Version
- CC2500 LBT (Europe): Limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
- 4-in-1 LBT (Europe): Limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
- ELRS LBT (Europe): Pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Features
- Support OpenTX & EdgeTX
- Support 4 RF Configurations
- Switchable in Mode 1 and Mode 2: Supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
- Adjustable Hall Gimbals
- External Module Bay: Compatible with Crossfire / ELRS and other compatible modules.

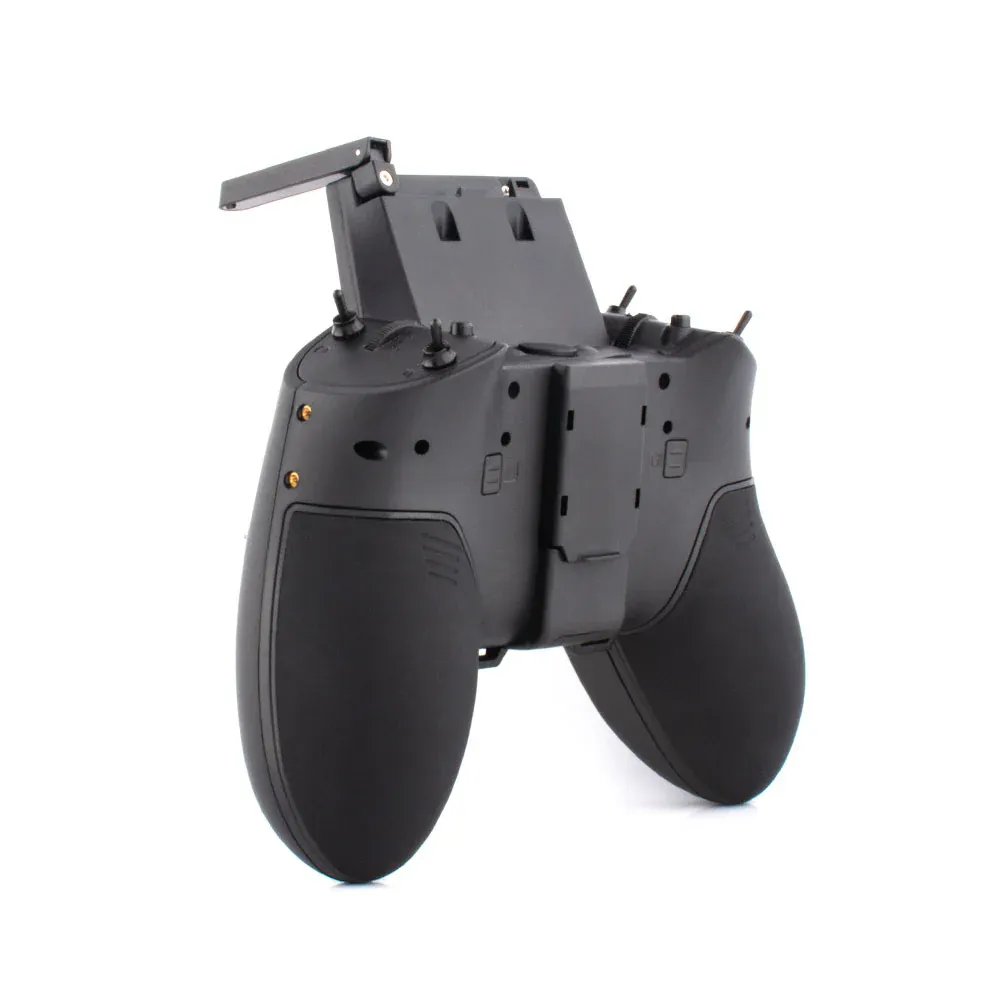

- 18350 Battery Compartments
- USB-C Direct Charging
- Supports External 2S Battery Power Supply
- Oversized LCD & Foldable Antenna
- DIY Attachment Points
- Ergonomically Designed
Accessories
- 18350 900mAh Battery
- RP1 ExpressLRS 2.4GHz Nano Receiver
- RP2 ExpressLRS 2.4GHz Nano Receiver
- Carry Case for Zorro Radio
- XT30 to JST 3 Pin connector for Zorro Radio
- User Manuals & Firmware
Package Includes
CC2500 Version
- 1 * Zorro Radio Controller CC2500 Version
4-in-1 Version
- 1 * Zorro Radio Controller 4-in-1 Version
ELRS Version
- 1 * Zorro Radio Controller ELRS Version

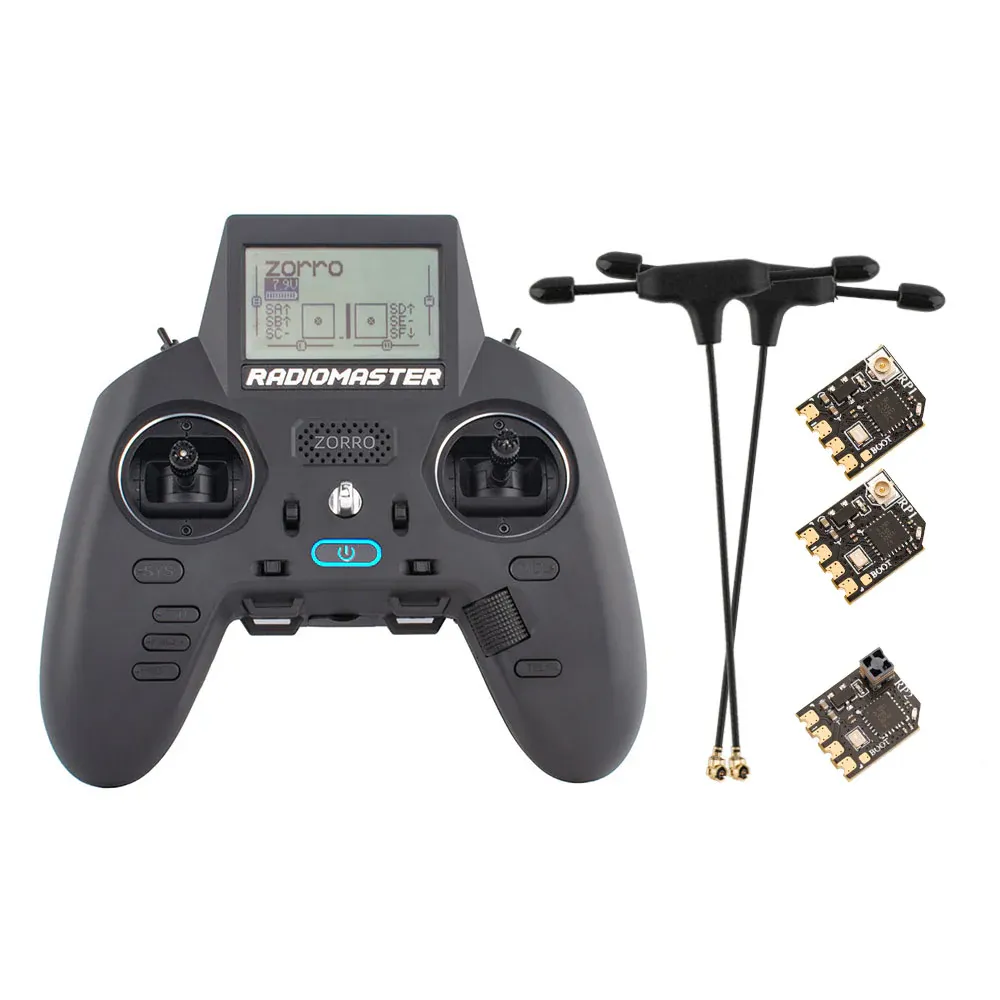

ELRS Starter Set
- 1 * Zorro ELRS Radio Control
- 2 * RP1 ExpressLRS 2.4GHz Nano Receiver
- 1 * RP2 ExpressLRS 2.4GHz Nano Receiver

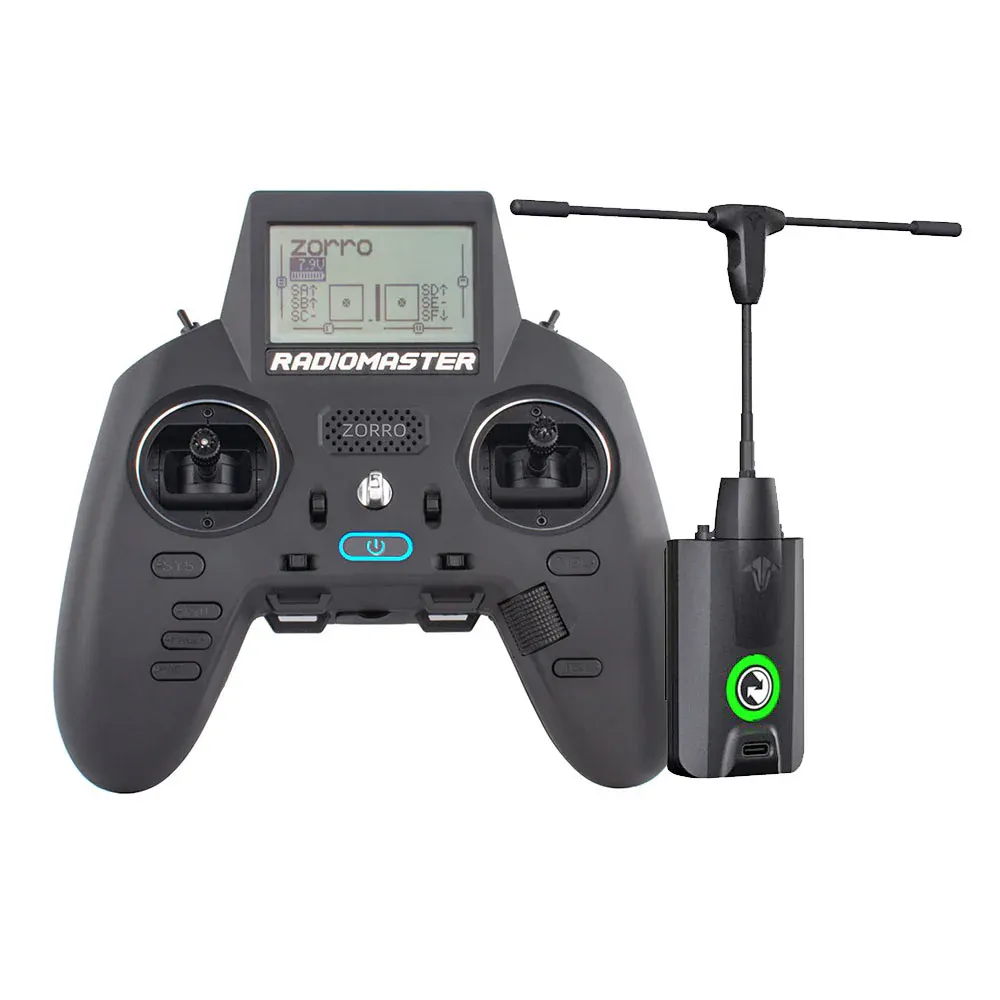

CC2500 + TBS Nano Crossfire Combo
- 1 * Zorro Radio Controller CC2500 Version
- 1 * TBS Nano Crossfire Module
