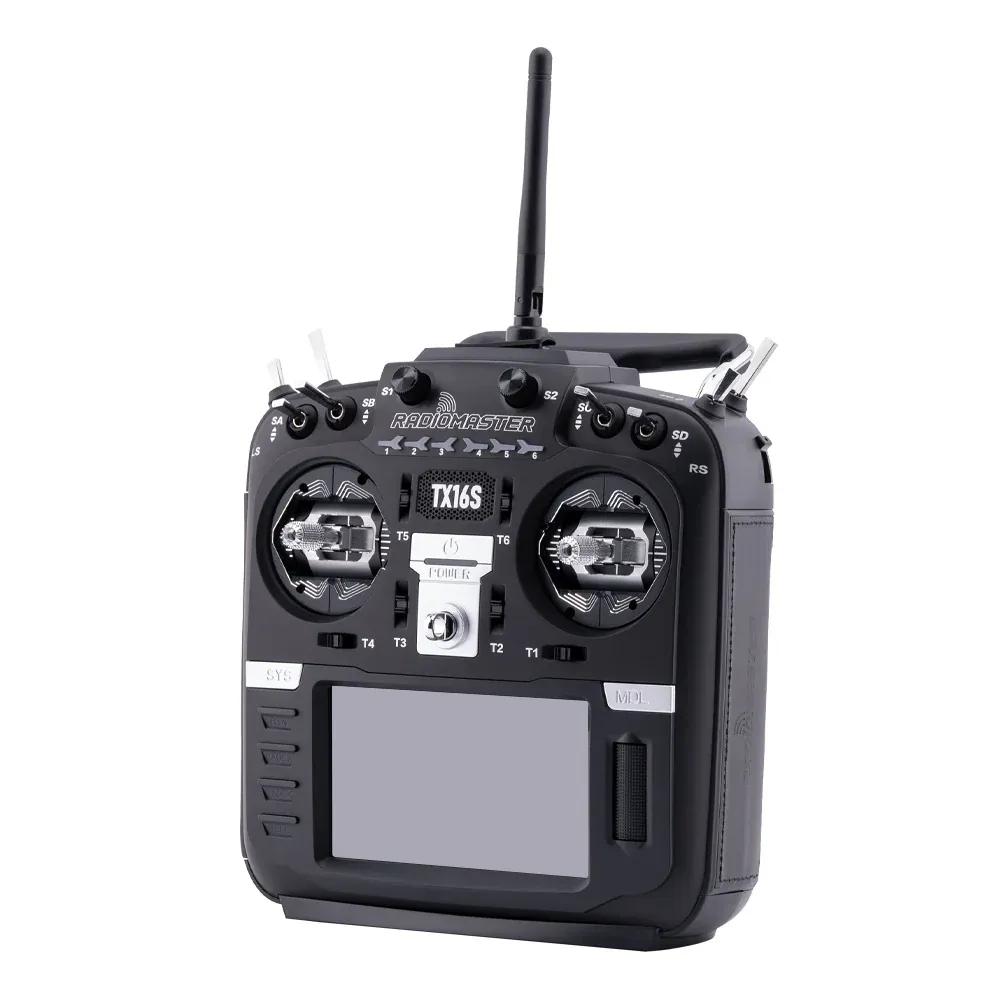

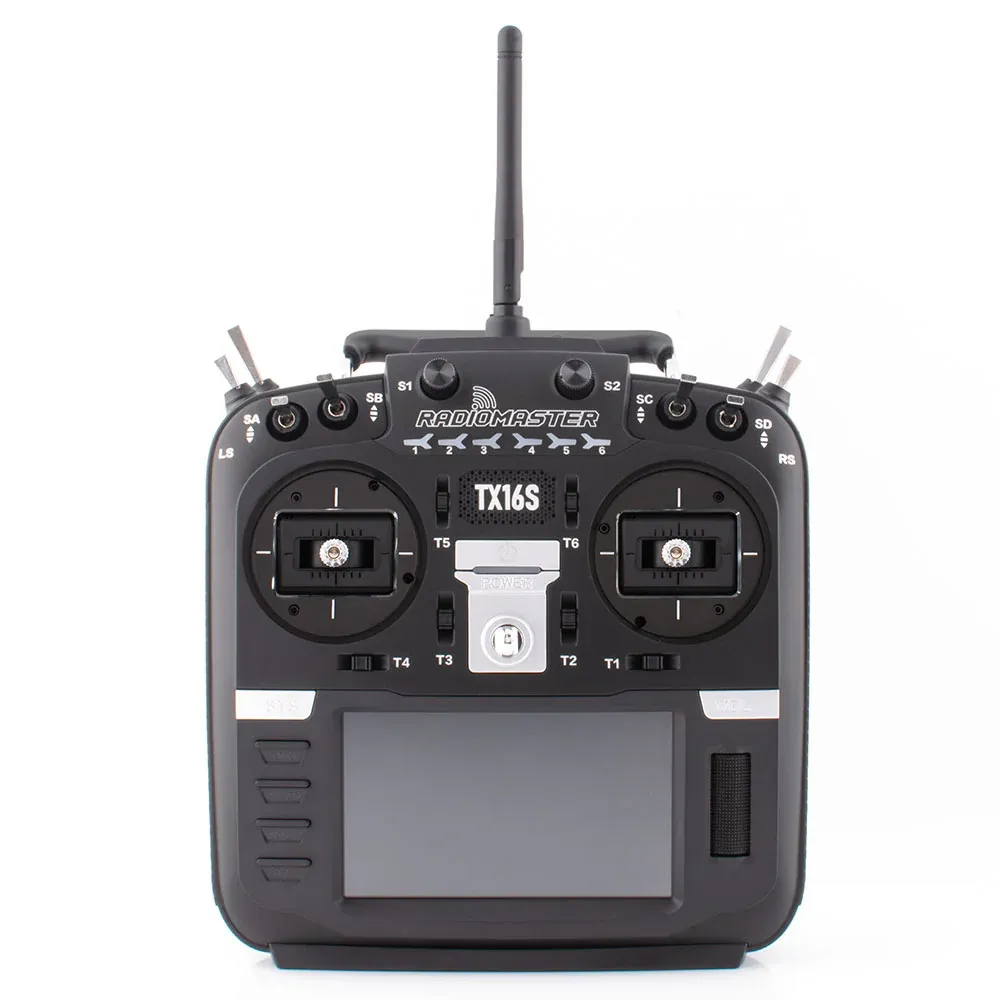

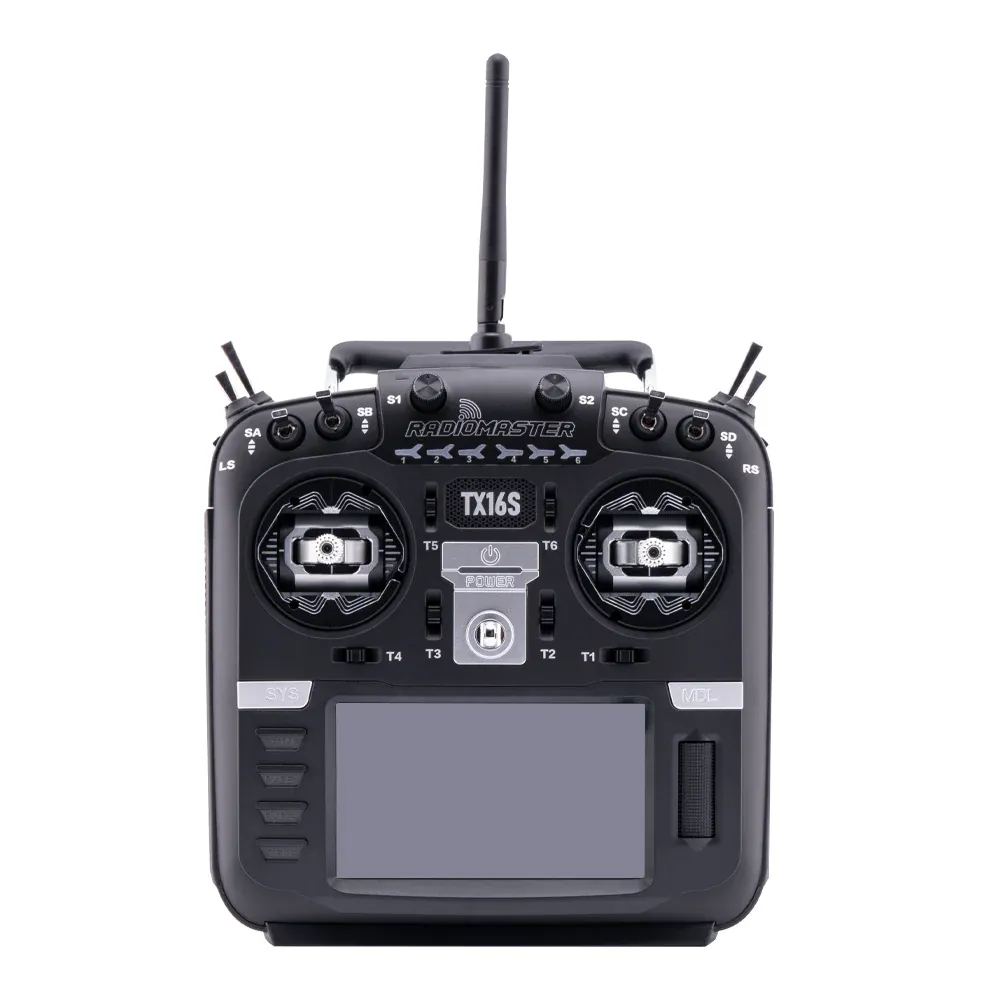

RadioMaster TX16S Mark II Radio Controller

The best just got better! Introducing the RadioMaster TX16S Mark II Radio Controller! The latest in radio controller technology and the ultimate open-source radio. Now with our version 4.0 gimbals and 4 precision bearings for an improved feel and perfect centering. A thorough redesign of the plastics has improved fit and finish and increased durability. The TX16S Mark II offers optimized power supply with reverse polarity protection and up to 2.2 amps of charging through the USB-C port. The 4.3" IPS color display provides easy programming with touch panel precision. We tried to think of everything, but just in case, we also added a DIY accessory socket for your bright ideas.

Features

• Improved internal circuitry and optimized power supply
• New charge circuitry with integrated reverse-polarity protection
• Optimized charge IC now allows up to 2.2A internal USB-C charge current
• Rear-mounted audio jack provides headphone output
• V4.0 Gimbals with improved centering and temperature stability (Same circuitry as AG01)

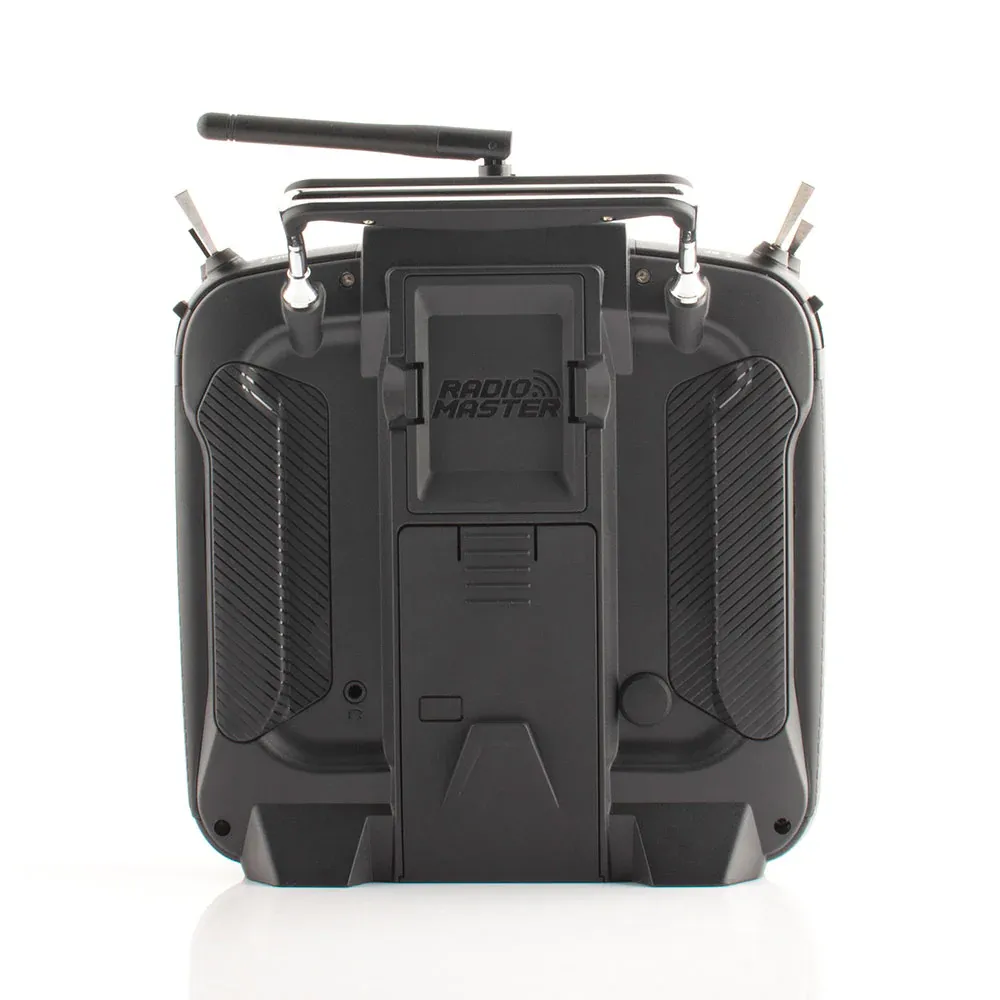

• Optional high/low rear grips for improved ergonomics
• Improved S1/S2 knobs with clear center-detents
• Improved LS/RS Sliders with smoother feel and better center-detents
• Redesigned battery cover for improved battery access
• Retooled body shell with improved fit and finish
• Trainer socket changed to standard TRS 3.5mm socket
• Rear DIY Socket added for personalized mods
• Improved internal plastics for better longevity
• Built-in ExpressLRS Backpack and 4in1 versions

Specification

• Item: TX16S Mark II
• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module:
  • Option 1: Internal 4-in-1 multi-protocol module (CC2500, CYRF6936, A7105, NRF2401)
  • Option 2: Internal ELRS (SX1280)
• SD card: 256MB by default, 8GB maximum
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Radio firmware: EdgeTX
• Module Firmware: Multiprotocol-Module (4IN1) -OR- ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-color touch display with a resolution of 480x272
• Gimbal:
  • Option 1: V4.0 Hall sensor with Aluminum fascia
  • Option 2: AG01 CNC Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade
• Support: EdgeTX and OpenTX (EdgeTX is installed by default with touch screen enabled)

Versions

FCC Version and EU LBT Version

Standard FCC Version

• 4in1 (FCC) Version supports all MPM protocols
• ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)

EU LBT Version

• 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT, and DSMX
• ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Gimbal Options

V4.0 Hall Gimbals

• Standard version with V4.0 Hall Gimbals, same chipset as the AG01
• Optimized hall sensor circuitry, improves center point positioning and temperature stability
• Stick travel, self-centering, and stick tension are now externally adjustable

AG01 Gimbals

• Fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel
• Featuring front-accessible tension and travel adjustment for easy fine-tuning

More Options

• TX16S Mark II with V4.0 Hall Gimbal or AG01 Hall Gimbal
• TX16S Mark II Max V4.0 Hall Gimbal or AG01 Hall Gimbal
• TX16S Mark II Max Joshua Bardwell Edition
• TX16S Mark II Max Pro MCK Edition

Accessories

• AG01 Full CNC Hall Gimbal
• Replacement HALL V4 Gimbal
• 21700 5000mAh Battery
• TX16S Radio Carry Case Large

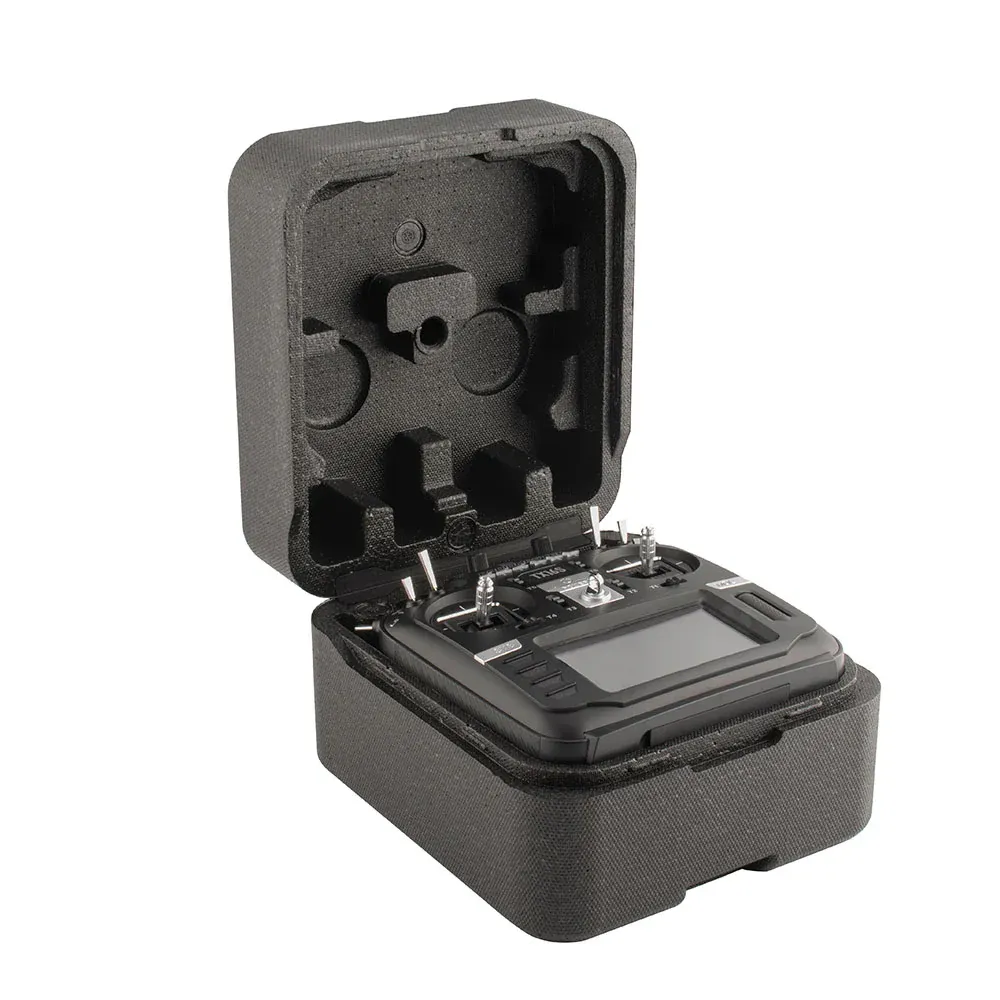

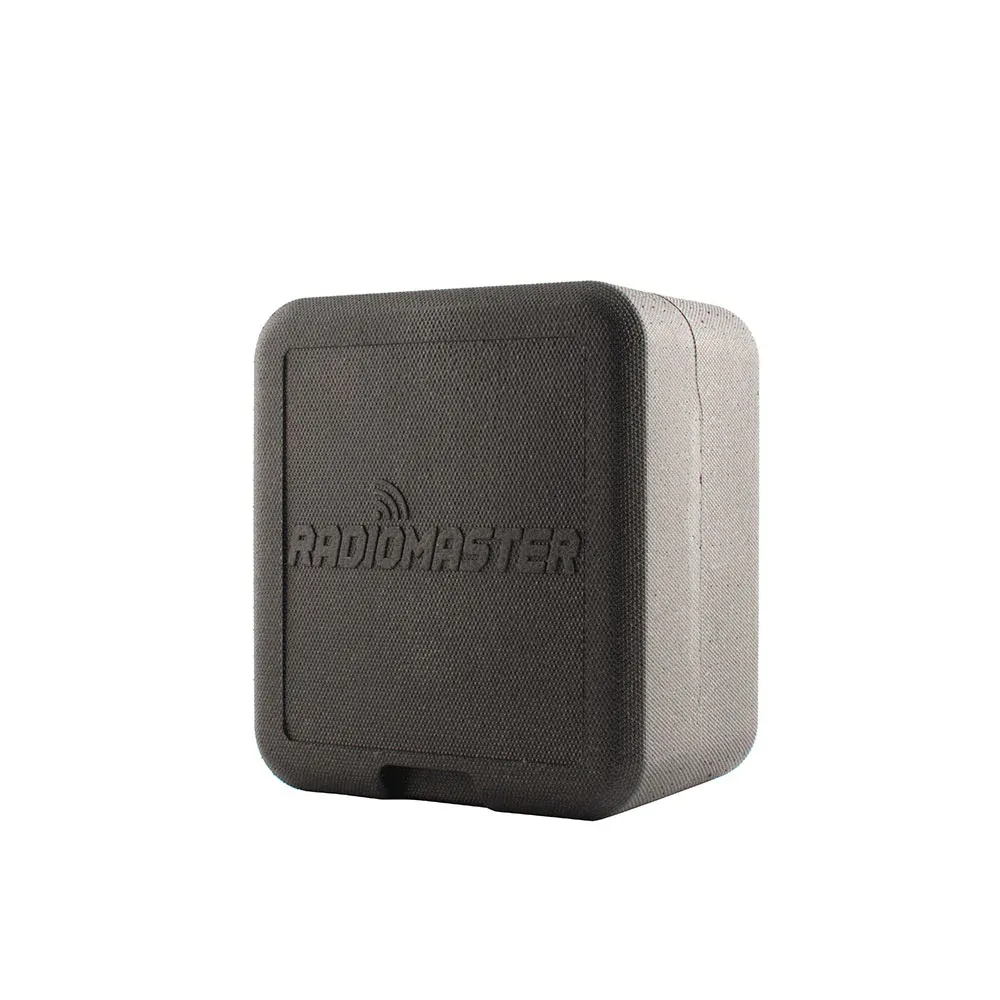

• TX16S Foam Box Zipper Cover
• TX16S Replacement Switch Assemblies (SA+SB/SC+SD/SF+SE/SH+SG)
• TX16S Mark II CNC Upgrade Parts Set

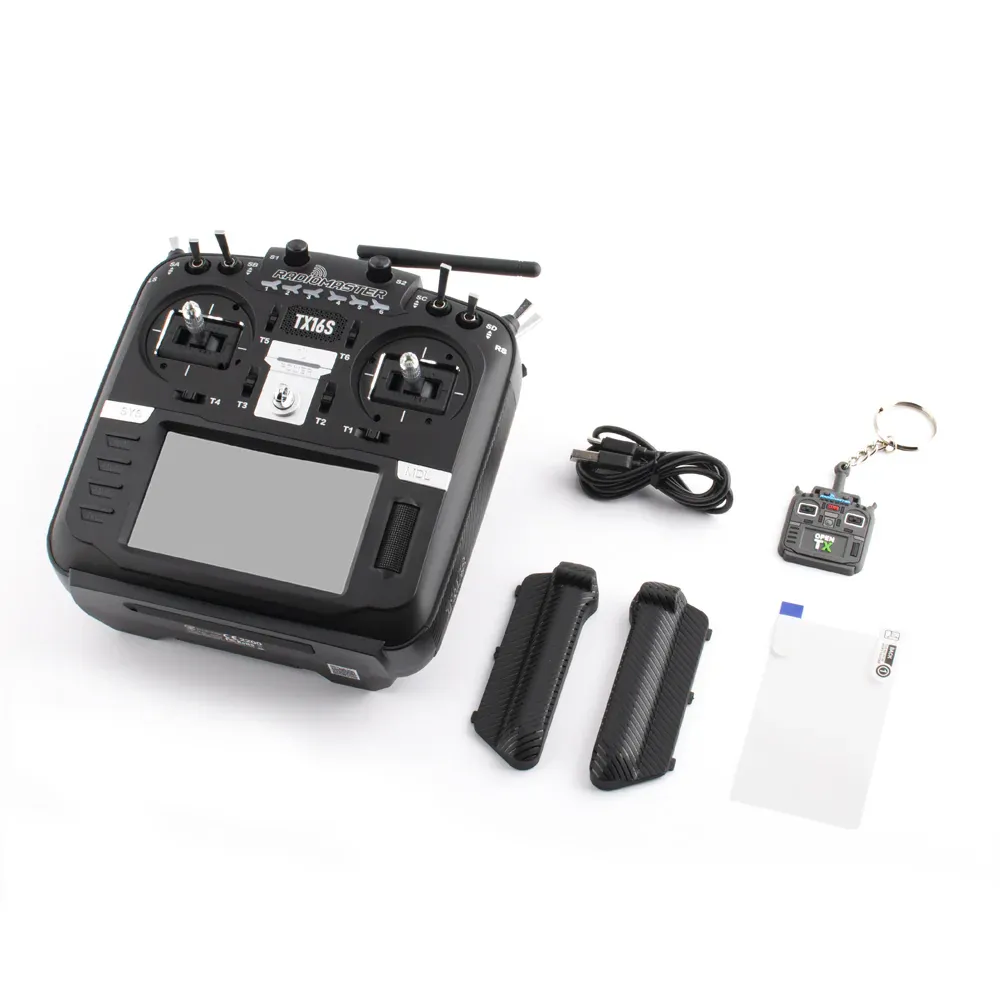

Package Includes

• 1 * TX16S Mark II Radio Controller
• 1 * 18650 Tray
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 pair of flat grips
• 1 pair of raised grips (installed on radio by default)
• 1 * TX16S Key Chain
