LiteRadio 2 SE

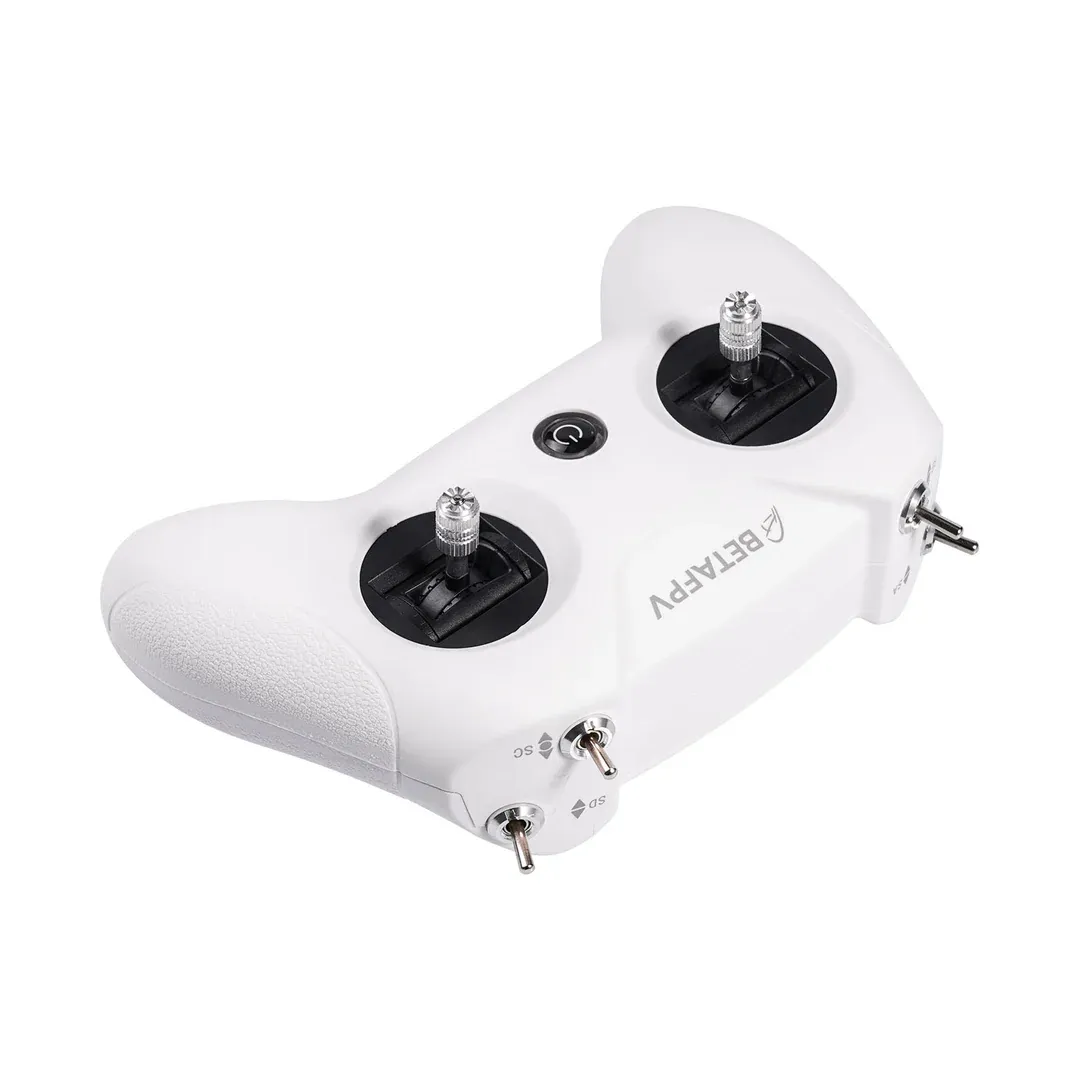

LiteRadio 2 SE Radio Transmitter

• Color: White
• Frequency Range: 2.4G (2403MHz-2447MHz)
• System: NRF24L01 / CC2500 / SX1280
• Channels: 8
• Supported Protocols: Bayang / Futaba S-FHSS / Frsky FCC D16 / Frsky LBT D16 / Frsky D8 / ExpressLRS 2.4G
• Power: ≤100mW
• Battery: Built-in 1000mAh 1S Battery
• Charging Connector: USB 3.0 Type-C
• USB Charging / Firmware Update
• Supports BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
• LED Light: Green-Power On / Red-Low Battery Warning / Blue-Normal
• Ergonomic Design: Comfortable rubber-coated handles with anti-slip texture
• USB Joystick Mode: Acts as a joystick when connected to a PC
• Included: USB Type-C Cable, User Manual

BETAFPV Configurator

• Utility for updating, configuring, and tuning the radio transmitter
• Supports basic setup, RF module control, and full ExpressLRS configuration
• Firmware update capability

Protocol Switching

• To change protocols, power off the transmitter, press and hold the bind button while powering it back on
• LED flashes indicate selected protocol:
  • Flash Once: Frsky FCC D16 (supports ACCST 1.X version)
  • Flash Twice: Frsky LBT D16 (supports ACCST 1.X version)
  • Flash Three Times: Frsky D8
  • Flash Four Times: Futaba S-FHSS
