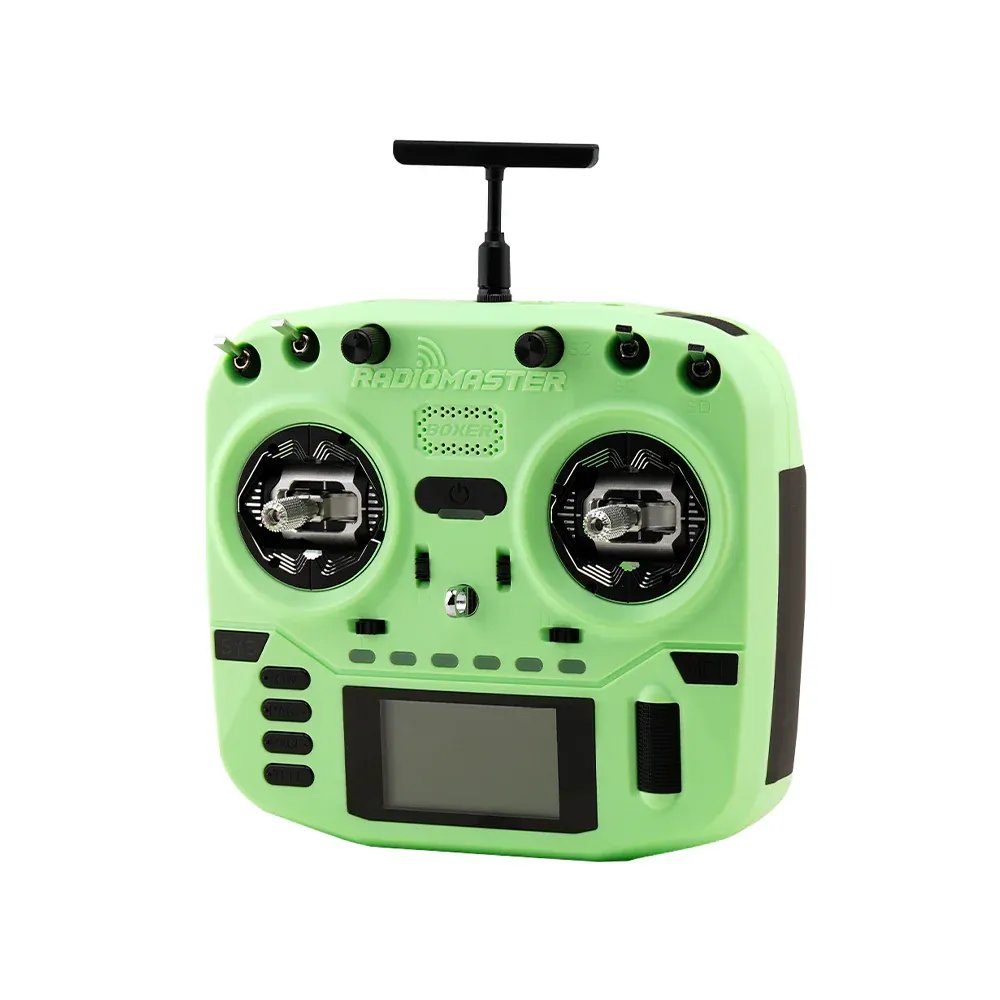

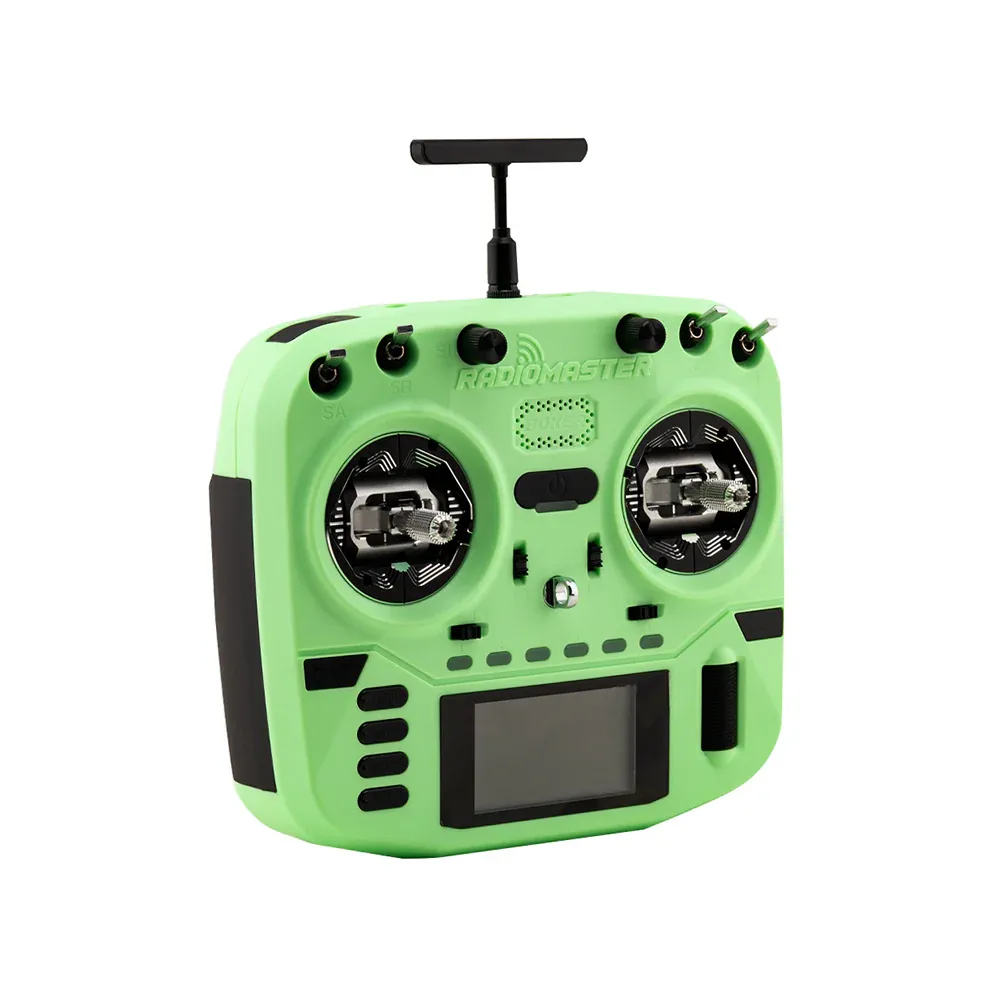

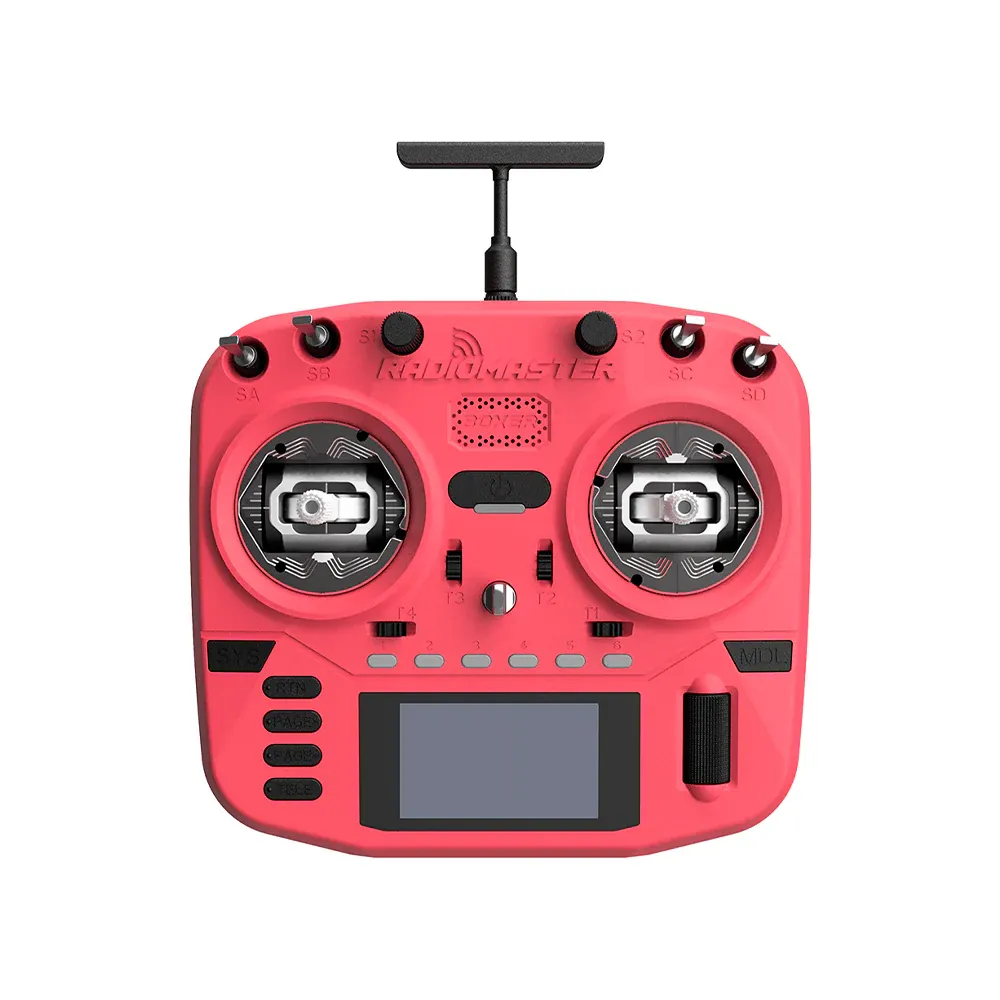

Boxer Crush Radio

Features

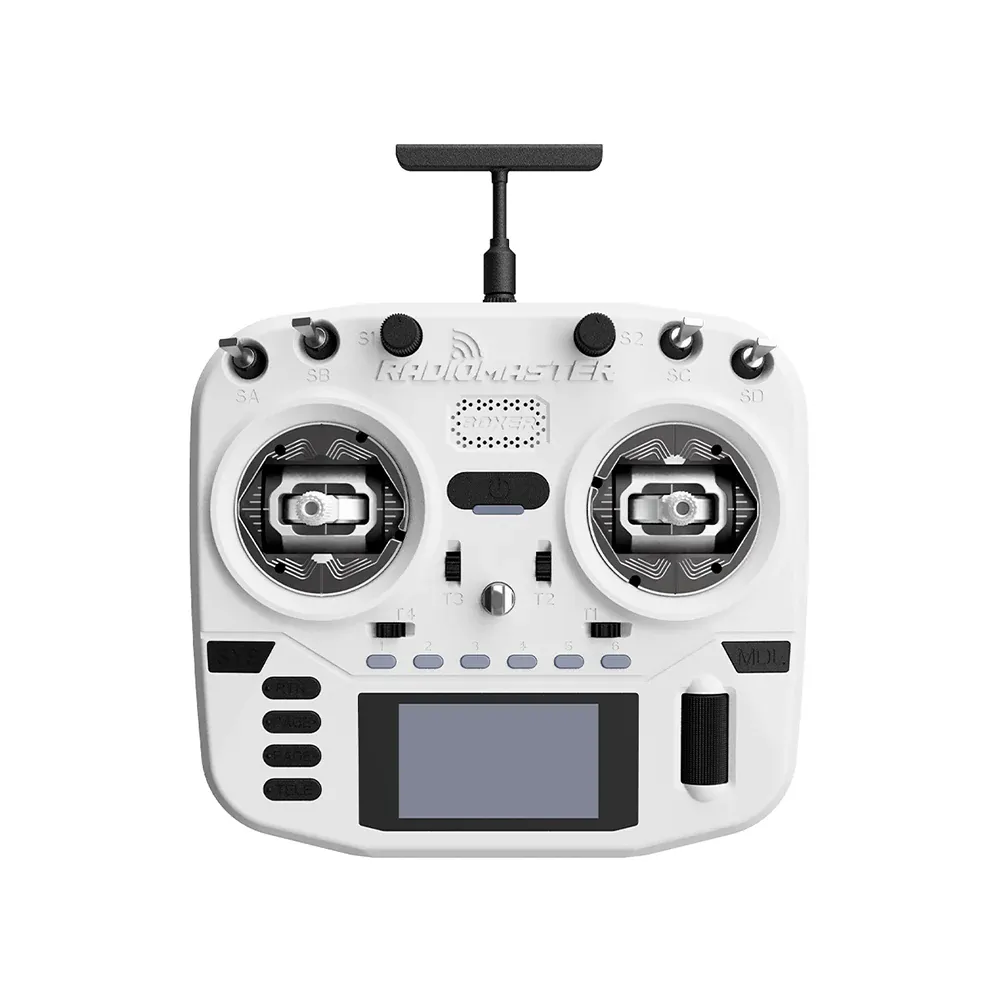

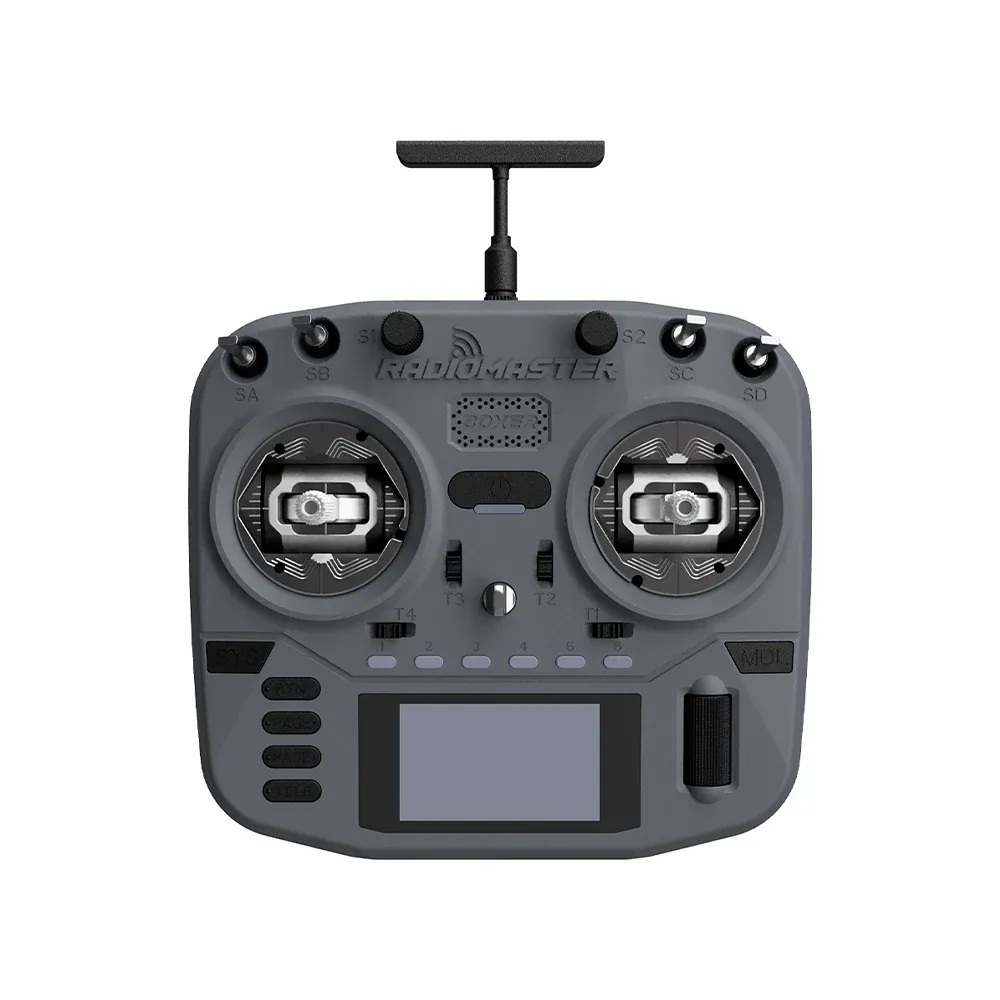

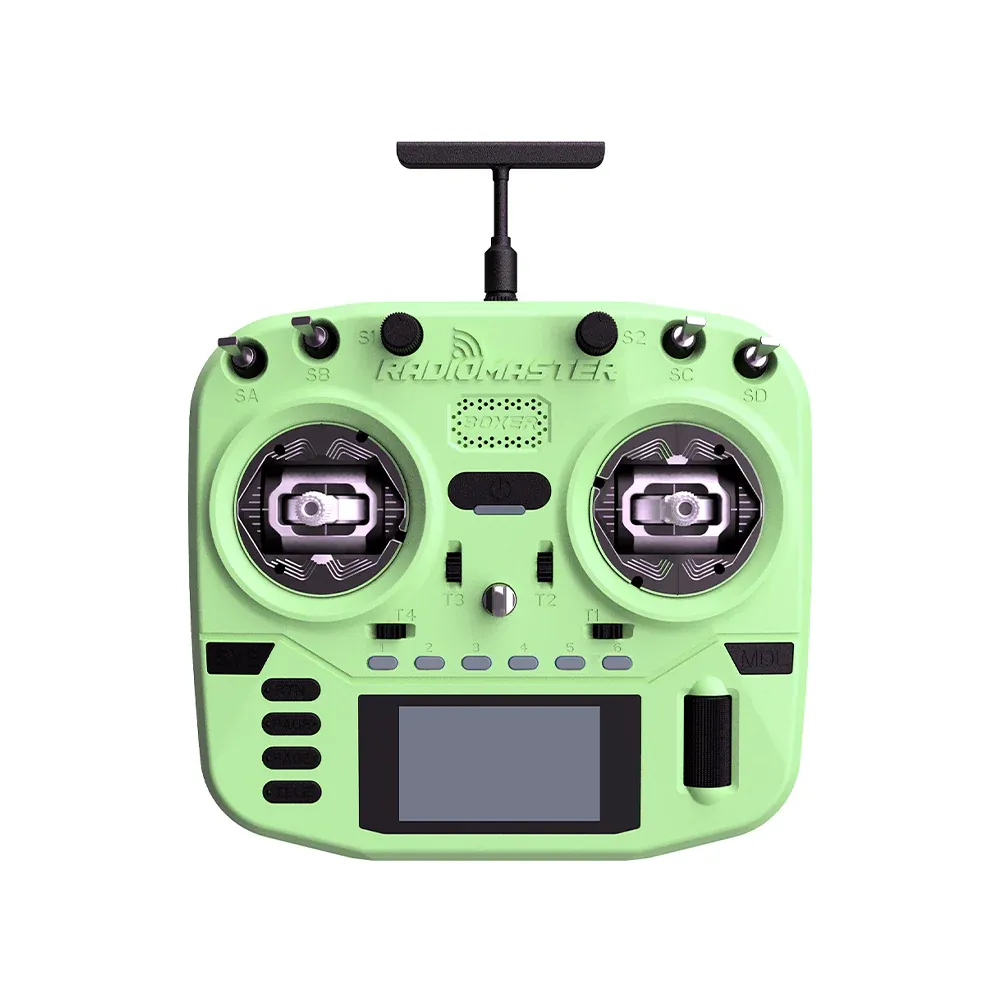

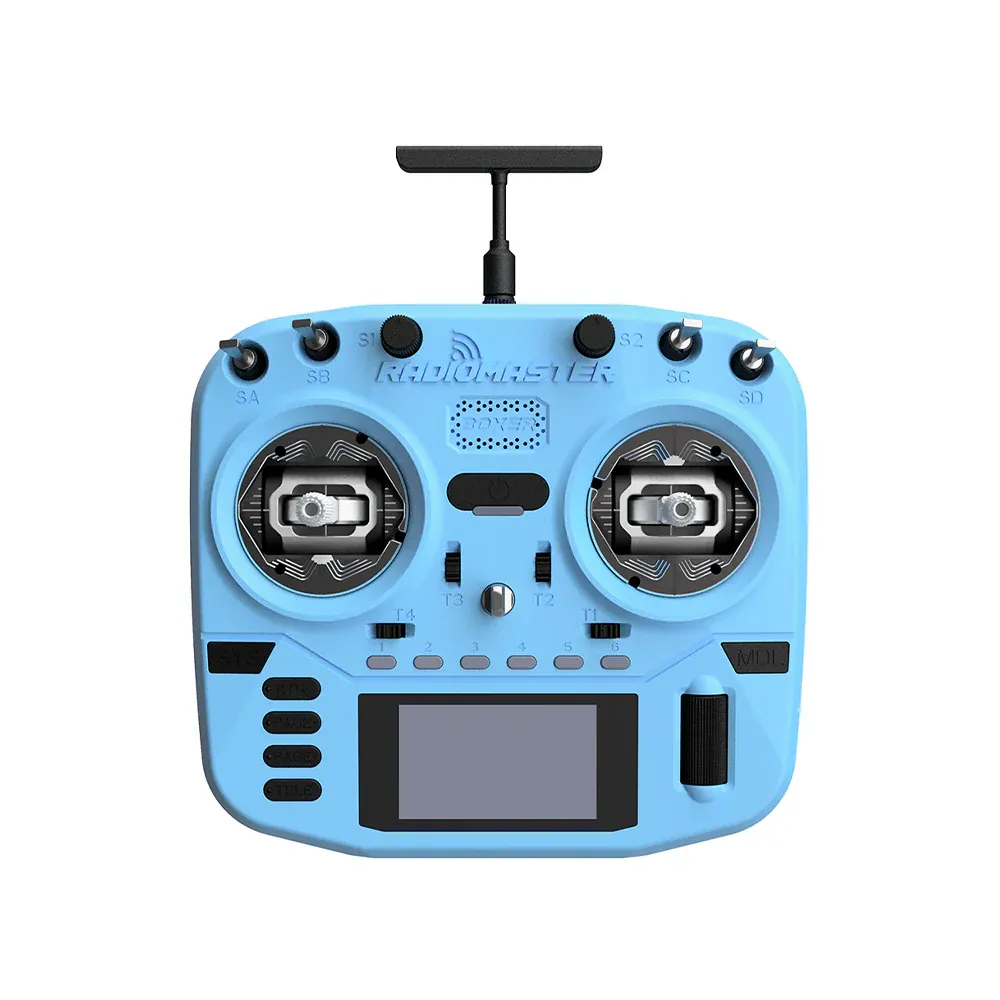

• Optional Colors: Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, Lemon Twist Yellow
• CNC Aluminum AG01 Hall-effect Gimbal
• Built-in ExpressLRS Backpack (Optional)
• Powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX Firmware
• Internal ExpressLRS Module capable of 1,000Hz refresh rate
• Adjustable ExpressLRS RF Output
• QC3.0 Fast Charging support, 2.0A MAX
• Compact Design with excellent ergonomics
• New Low-Profile Latching SE Switch and momentary SF switch
• Oversized Battery Compartment
  • Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Standard JR Module Compartment
• Internal Module Cooling Fan built-in
• RadioMaster Standardized Button Layout
• Versatile 6-Position Switch for flight mode access
• Adjustable and Removable T-shape Antenna

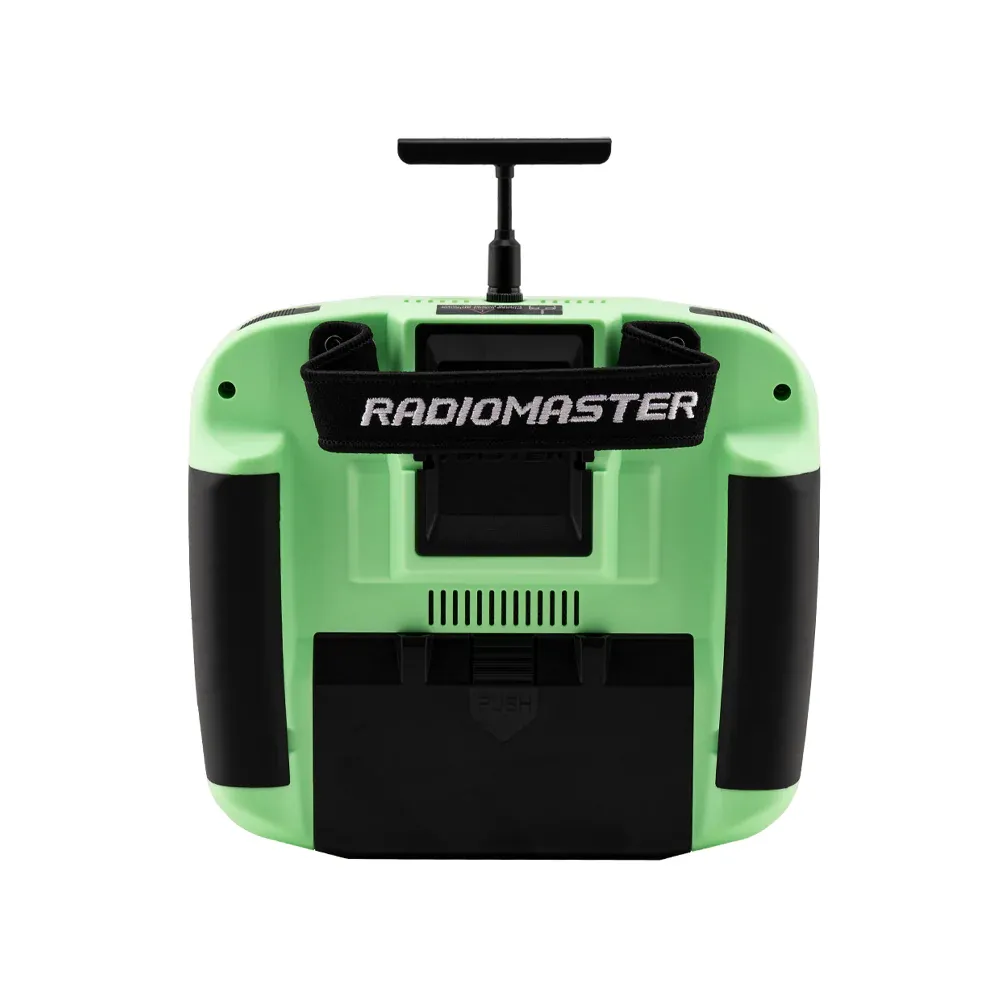

• Industry First Fabric Handle for improved portability
• Changeable, Ergonomic Grips
• Redesigned SD Card Slot with new and improved 512MB pre-loaded SD card included
• External Module Power Slots in battery cover
• RadioMaster Signature Carry Case and gimbal protector included to ensure your radio stays safe while on the move

Specifications

• Item: Boxer Crush Radio
• Color Options: Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, Lemon Twist Yellow
• Size: 235 x 178 x 77mm
• Weight: 617.1g
• Frequency: 2.400GHz - 2.480GHz
• Internal RF: ExpressLRS 2.4GHz
• Supported Protocols: Module dependent
• Cooling Fan: Built-in
• Voltage Range: 6.6V - 8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Display: 128 x 64 Monochrome LCD display
• Gimbal: AG01 CNC Hall Gimbal
• External Module Compatibility: JR / FrSKY / Crossfire compatible
• Upgrade Method: USB / SD card & EdgeTX Companion PC software

Preinstalled Software

The Boxer Crush Radio comes preinstalled with EdgeTX and ExpressLRS, providing cutting-edge software fit for its class-leading hardware. RadioMaster collaborates closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience, continuing to support open standards into the future.

Associated Products

• Boxer Radio Controller
• Boxer Max Radio Controller
• Boxer Radio Transparent Version
• 2S 7.4V 6200mAh Lipo Battery
• AG01 CNC Hall Gimbal Sets (New Colors)

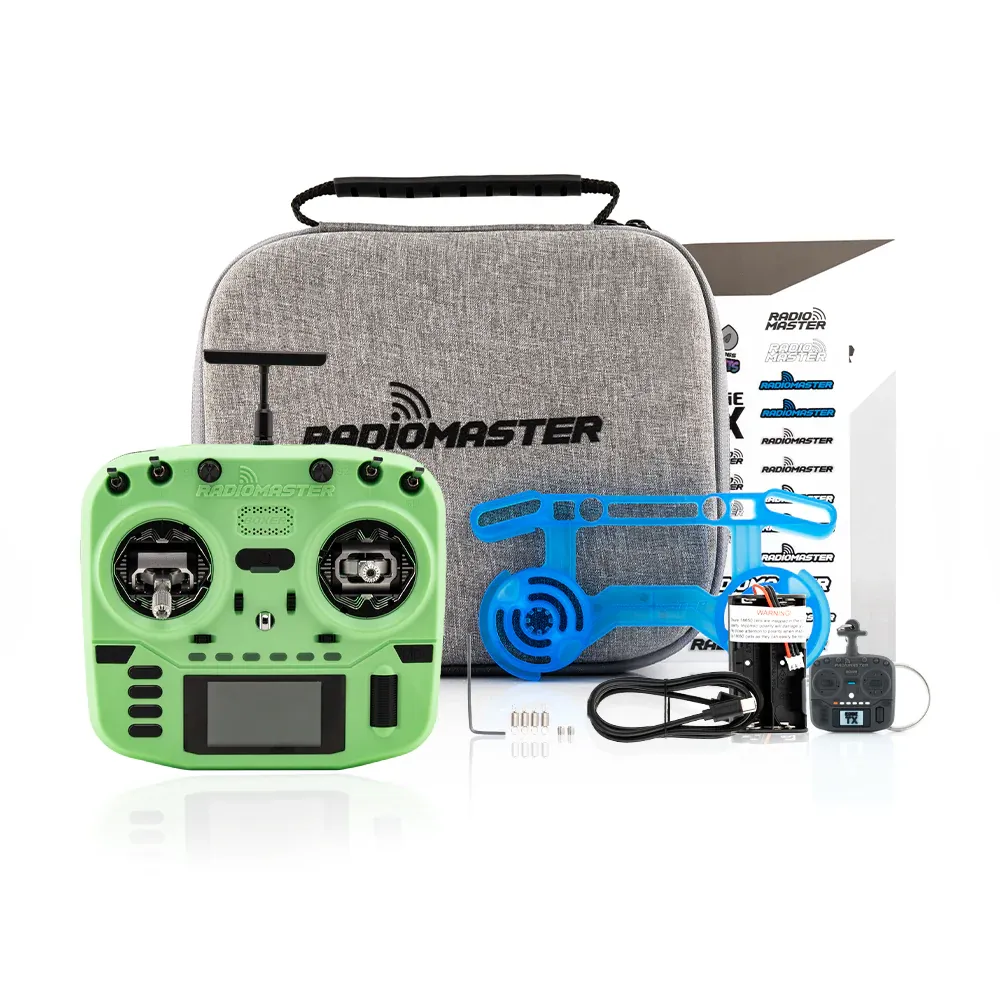

Package Includes

• 1 * Boxer Crush Radio
• 1 * Signature Carry Case
• 1 * T Antenna
• 1 * USB-C Cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen Key
• 2 * M4*4 Screws
• 4 * Low Tension Springs
• 1 * 18650 Battery Tray
• 1 * Stickers
• 1 * Manual
