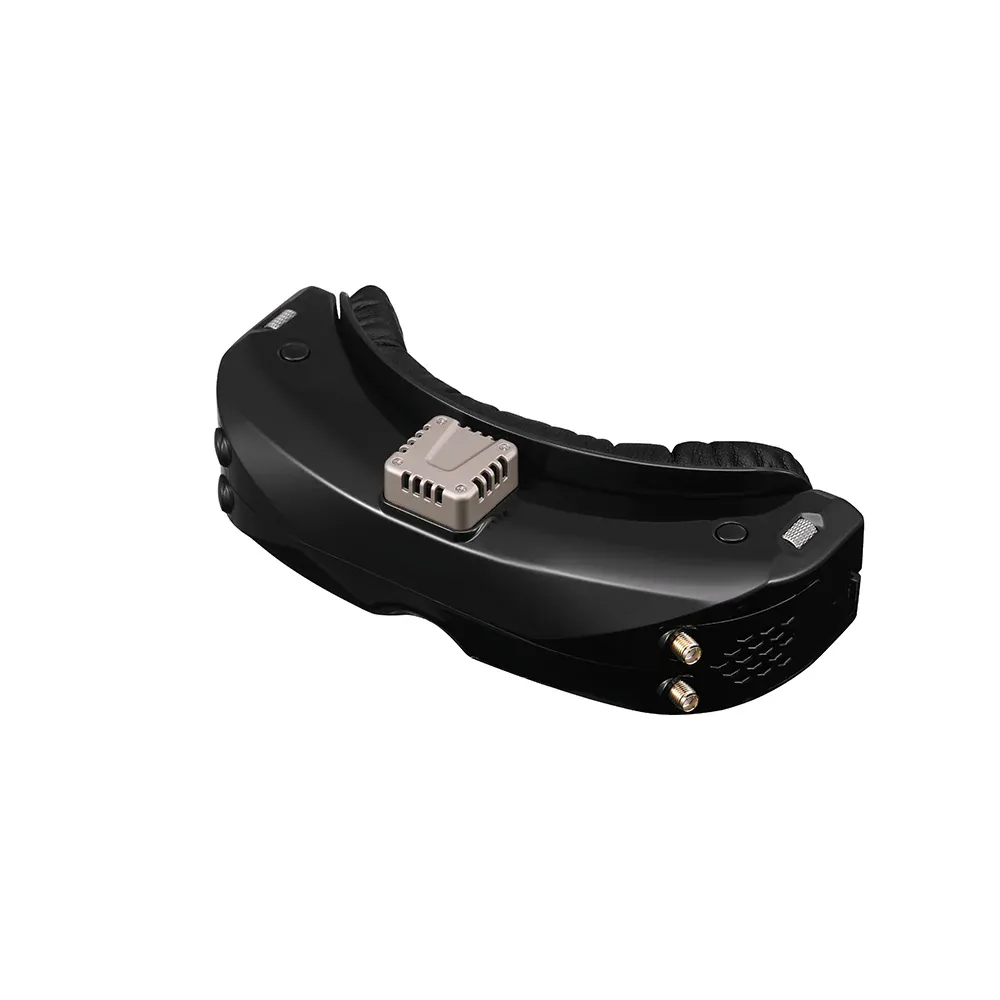

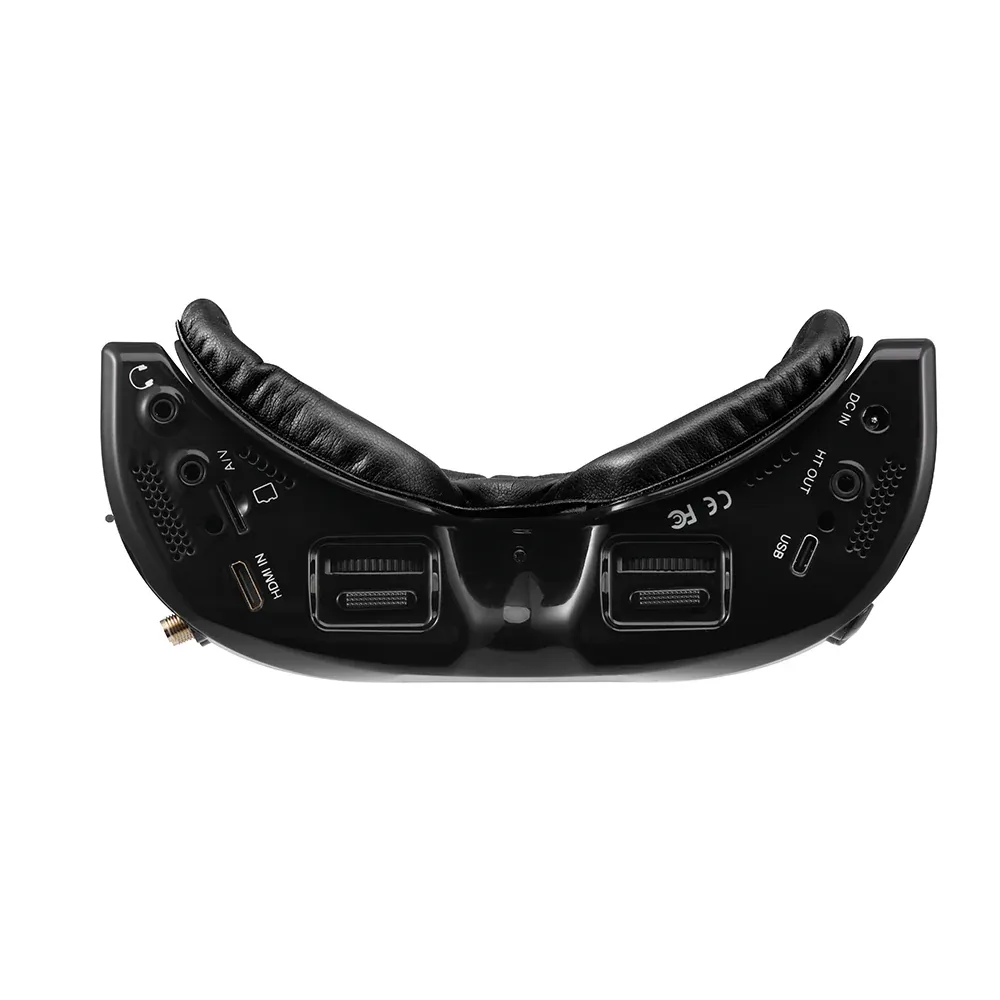

SKYZONE FPV Goggles SKY04X

The SKYZONE FPV goggles SKY04X is the first SKYZONE Goggle for RC airplane racing drones with focus adjustment. The 04x 1280*960 high-resolution screen has vivid color and a high contrast ratio, allowing pilots to see more details in the racing.

SKY04X V2 FPV Goggles offer a superior experience with 60 frames-per-second, 1280x960 OLED resolution, and 48-channel 5.8GHz transmission. With its built-in Steadyview Receiver and comfortable design, you can enjoy clear, stable video and improved image latency, supporting HDzero or Fatshark. The V3.3 Steadyview receiver merges two signals into one, avoiding image tearing and rolling, making the image more stable and clear in challenging conditions. The new SKY04X designed optics have a focus adjustment feature and 46 degrees Field of View, giving pilots a more immersive FPV experience. The new SKYZONE Google 04x OS with 10 languages to set select, the pilot has no trouble with the menu system, and with the shuttle wheel and new user interface, the pilot can set all the settings just by rolling the wheel without taking off the goggles.

Features:

• SteadyView receiver merges two signals into one, making the image more stable and clear in challenging conditions.
• Module bay, goggles have more capability to upgrade.

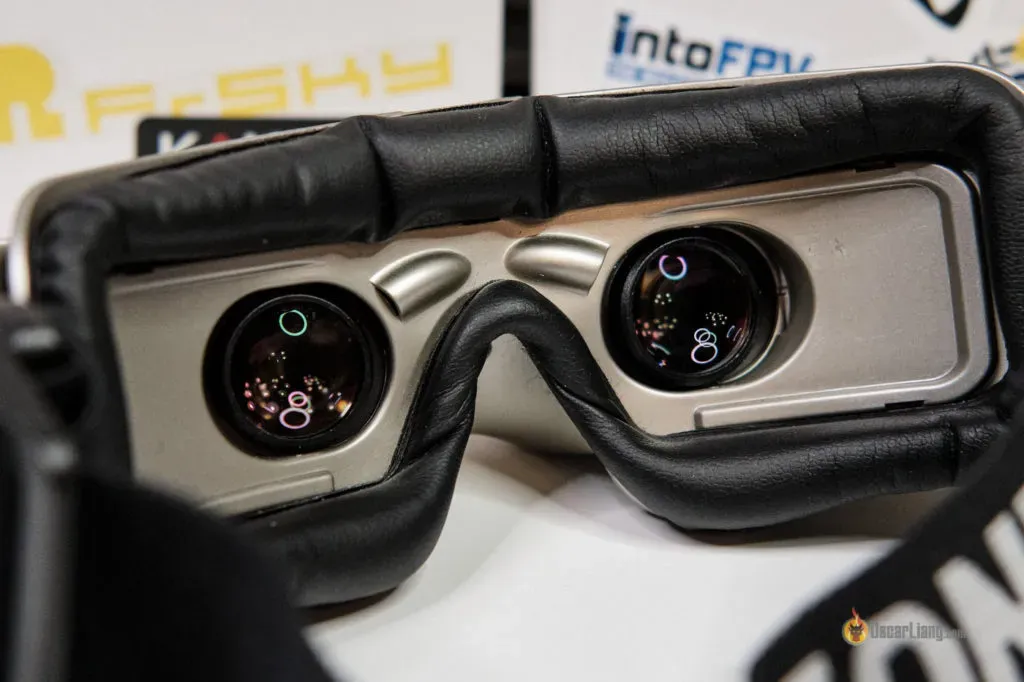

• Focus Adjustment, The new Optics have a large Field of View (46 degrees). and the Optics have a Focus adjustment feature (-6~+2), no need diopter anymore.
• OLED Screen, The 1280*960 screen has high resolution and vivid color, high contrast ratio, so pilots can see more details.
• Advanced Screen Settings, The aspect ratio is switchable, and 4 Preset screen settings and 3 customized settings for indoor, and outdoor flight, or different weather.
• Shuttle Wheel Control, No more confusing multi-function button or 5-way Joy stick, with smooth and natural shuttle control, easy to navigate.
• New User Interface with 10 languages, New UI with shuttle wheel, easy to navigate, 10 languages to choose from for local users.
• 60FPS DVR, support HDzero or Fatshark.
• Built-in DVR.

SKY04X Specifications:

• Screen: OLED
• Resolution: 1280X960
• FOV (Diagonal): 46°
• Aspect Ratio: 4:3/16:9
• Focus: -6~+2 adjustable
• Interpupillary distance (IPD): 58-71mm
• Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
• Language: 10 languages
• Power Supply: DC6.5-25.2V/USB5V
• Power Consumption: 720mA at 12V
• DVR: H264, 60fps, MOV 6Mbps, SD Card support up to 128Gb
• Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
• Dimensions: 185*75*67mm
• Weight: 267g

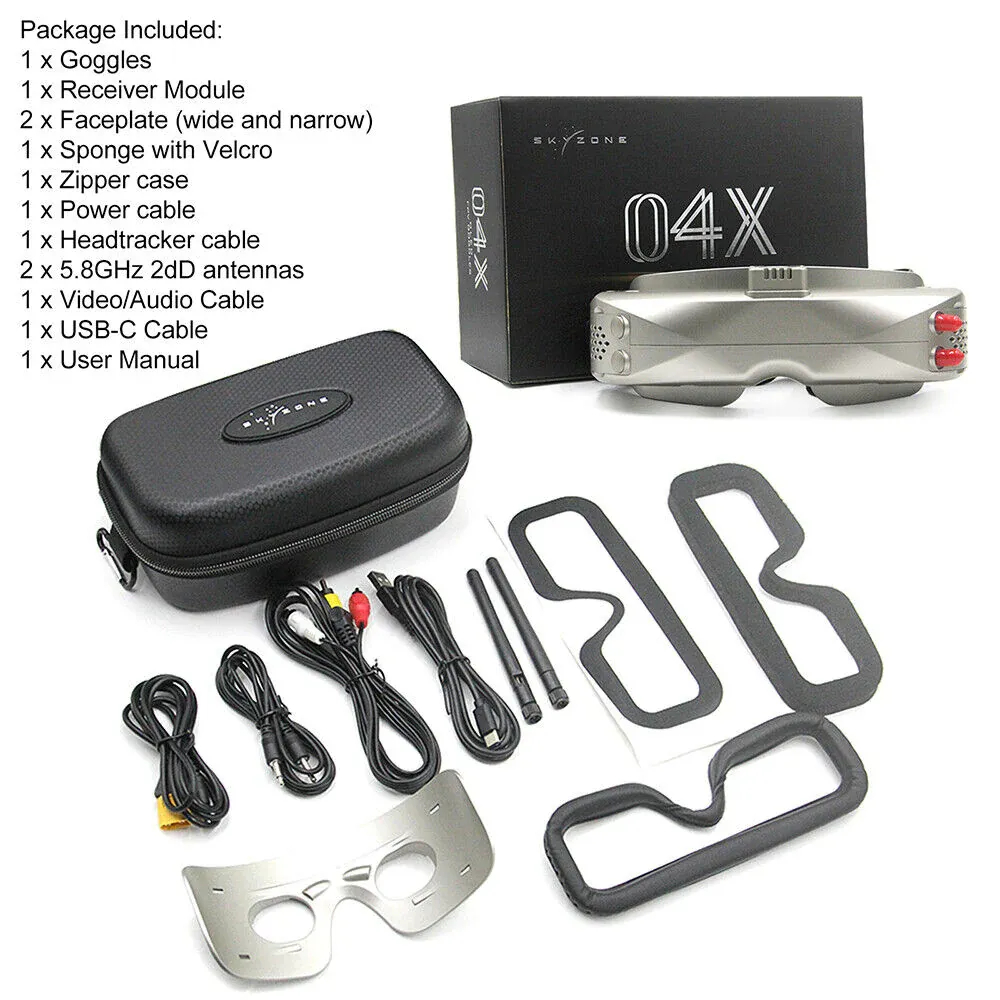

Package Included:

• 1x SKY04X V2 Goggles
• 1x Steadyview V3.3 Receiver Module
• 2x Faceplate (wide and narrow)
• 1x Sponge with Velcro
• 1x Zipper case
• 1x Power cable
• 1x Headtracker cable
• 2x 5.8GHz 2dB antennas
• 1x Video/Audio Cable
• 1x USB-C Cable
• 1x SKY04x User Manual
