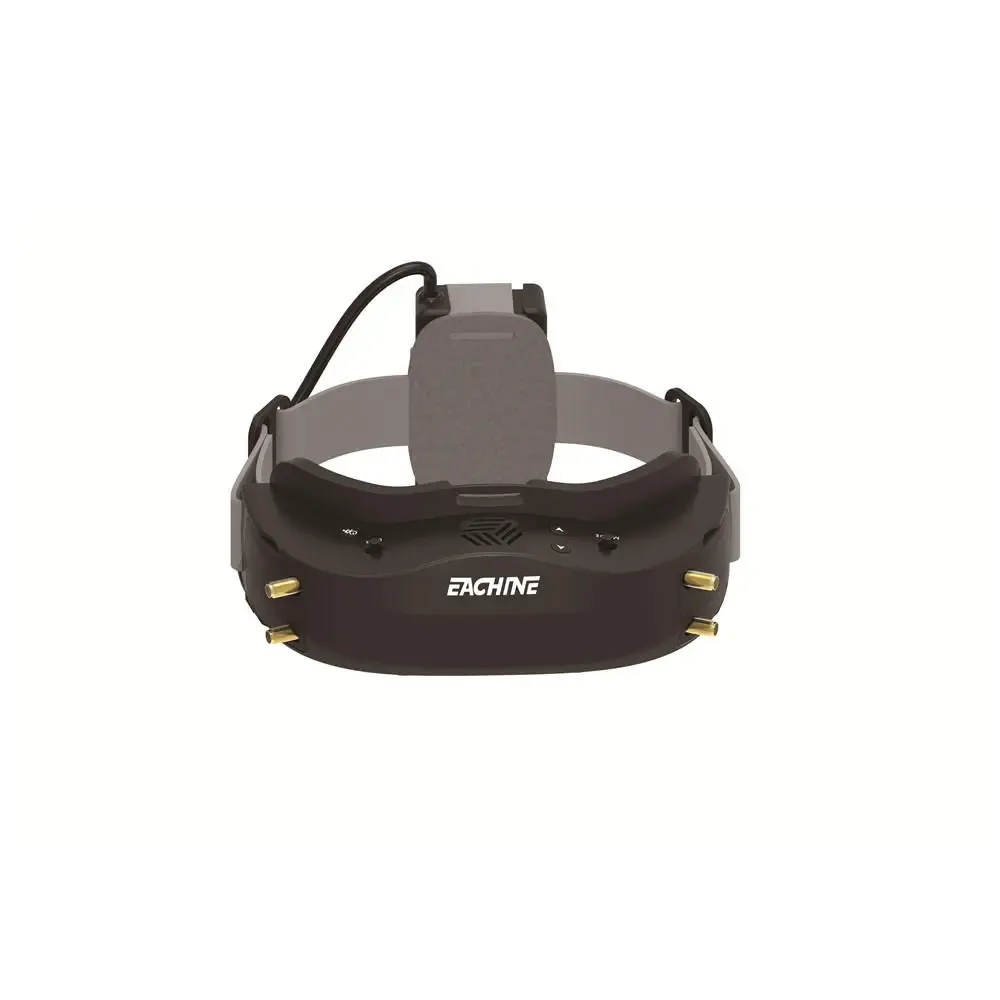

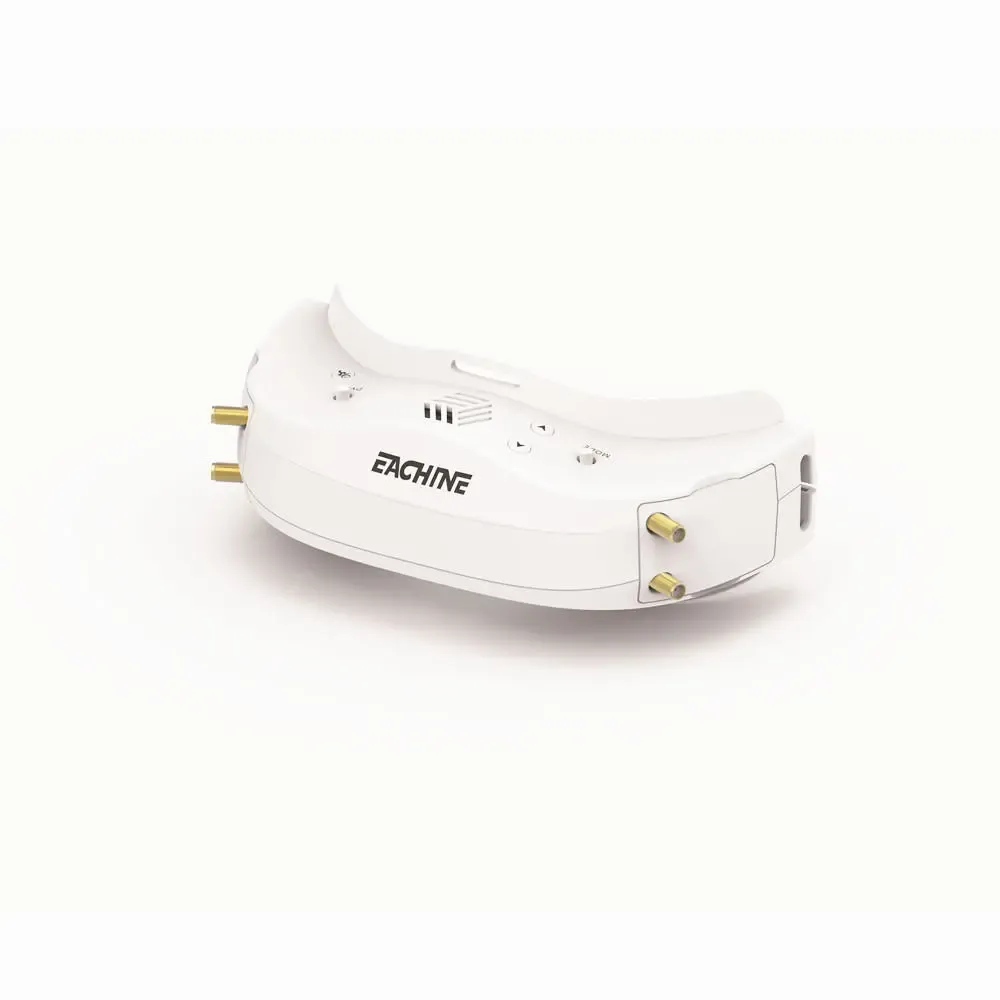

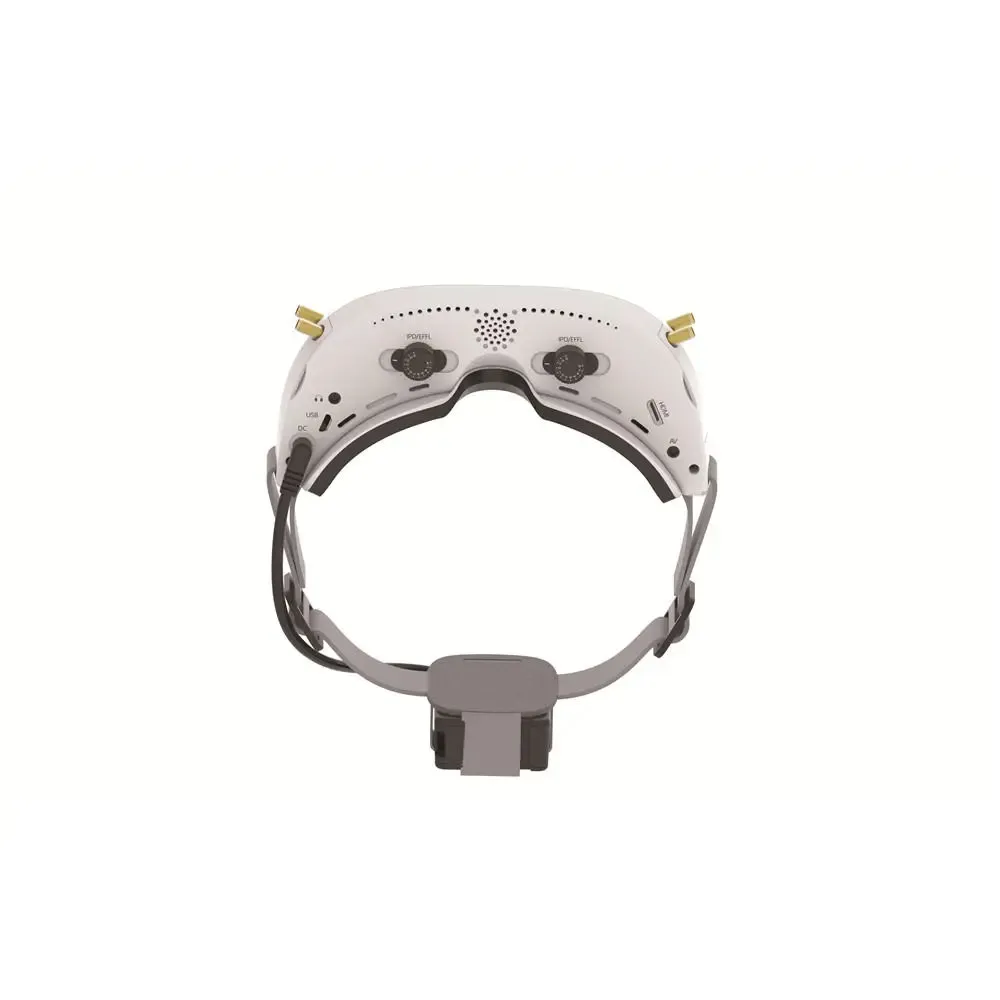

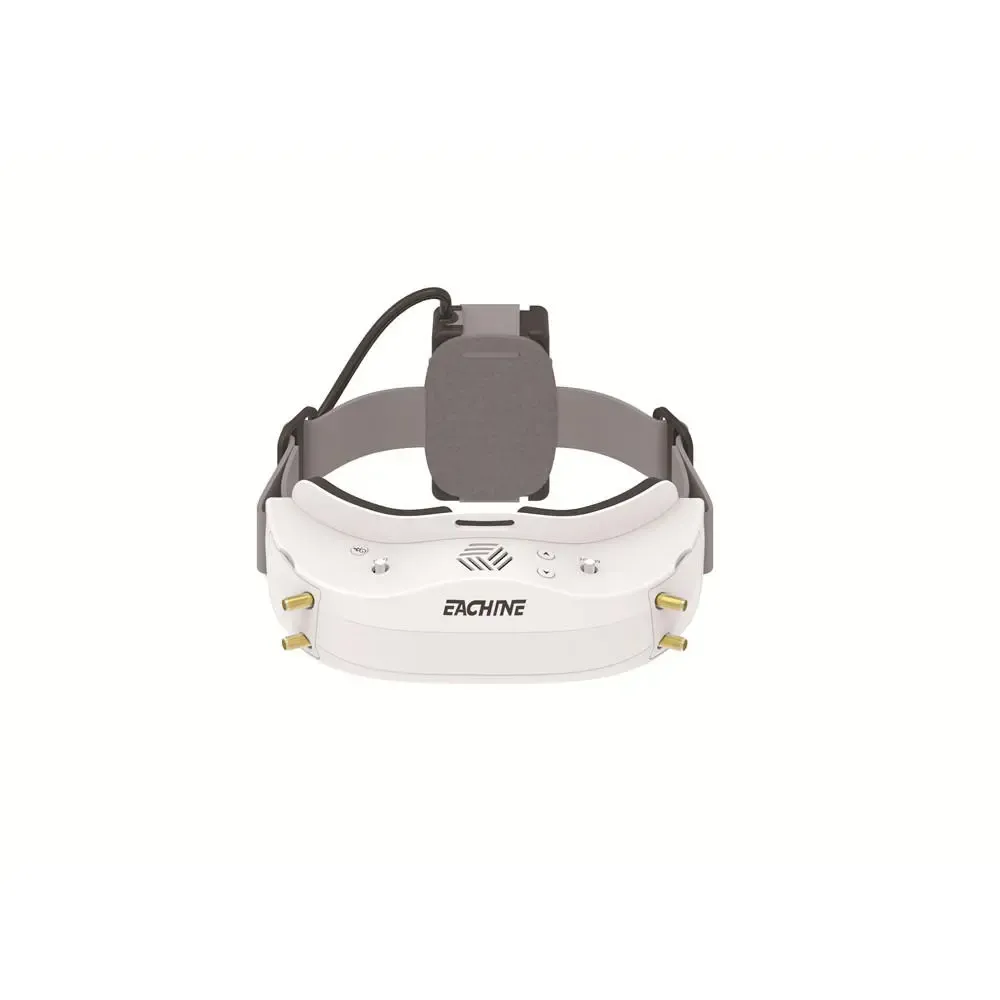

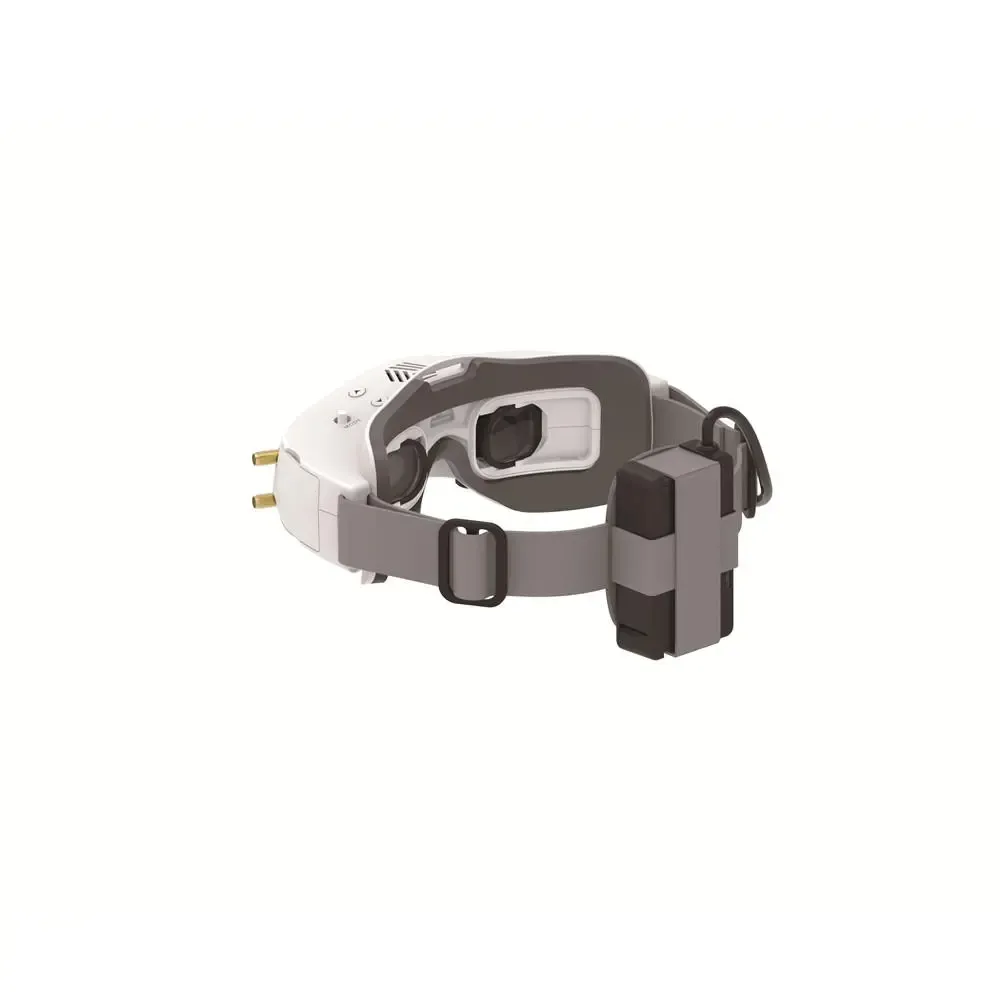

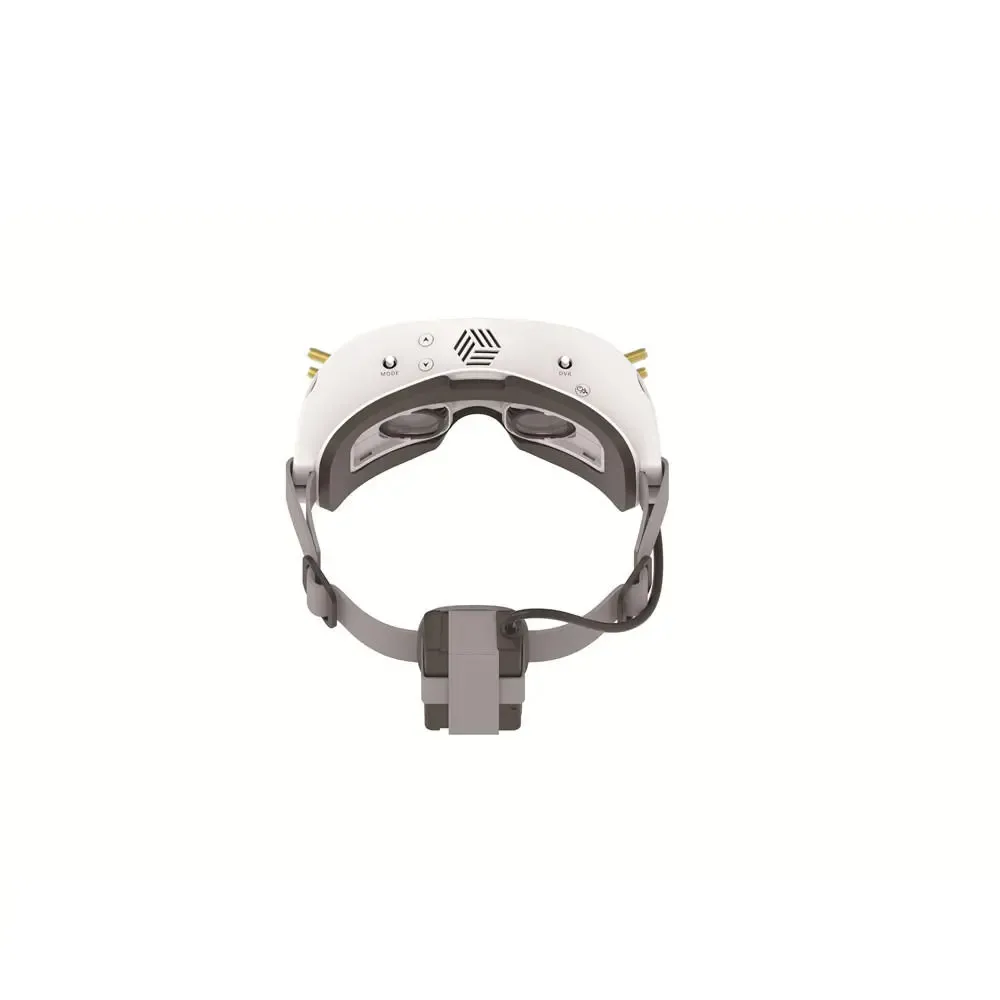

EV300D
Eachine
| Name | Value |
|---|---|
| Field of view | 42 |
| Resolution | 1280x960 |
| DVR | |
| Ratio | 4x3, 16x9 |
| IPD from | 56 |
| IPD to | 72 |
| Weight | 208 |
| Display type | LCOS |
| HDMI in | |
| Audio input | |
| Focal adjust from | -8 |
| Focal adjust to | 3 |
| System | Analog |
| Lens type | Binocular |
| Price | 289.99 |
Description
Specifications:
- Frequency: 5.8GHz
- Frequency Range: 5333—5945MHz
- Receiver Sensitivity: ≤ -93dB
- Antenna Impedance: 50Ω
- Audio and Video: AV in/out
- Video Format: NTSC/PAL
- Brightness: Adjustable
- Contrast: Adjustable
- Pupil Distance Adjusting: 56-72mm
- Focal Length Adjusting: Under 800 degrees of myopia and 300 degrees of hyperopia
- Eyeglass Frames: Astigmatism/myopia/hyperopia (Diopter lens not included)
- Power Input: DC 7.4V-28V
- Minimum Voltage: 6.8V
- Operating Temperature: -10°C to 40°C
Package Included:
- 1 X EV300D goggles
- 1 X Zipper case
- 1 X 18650 battery case
- 1 X Sponge
- 2 X EVA pad
- 2 X Eyeglass frames
- 2 X Third-party module cover
- 2 X FPV receiver
- 1 X Lens wiping cloth
- 1 X User Manual
Note: Battery and antenna are not included.
