EV200D

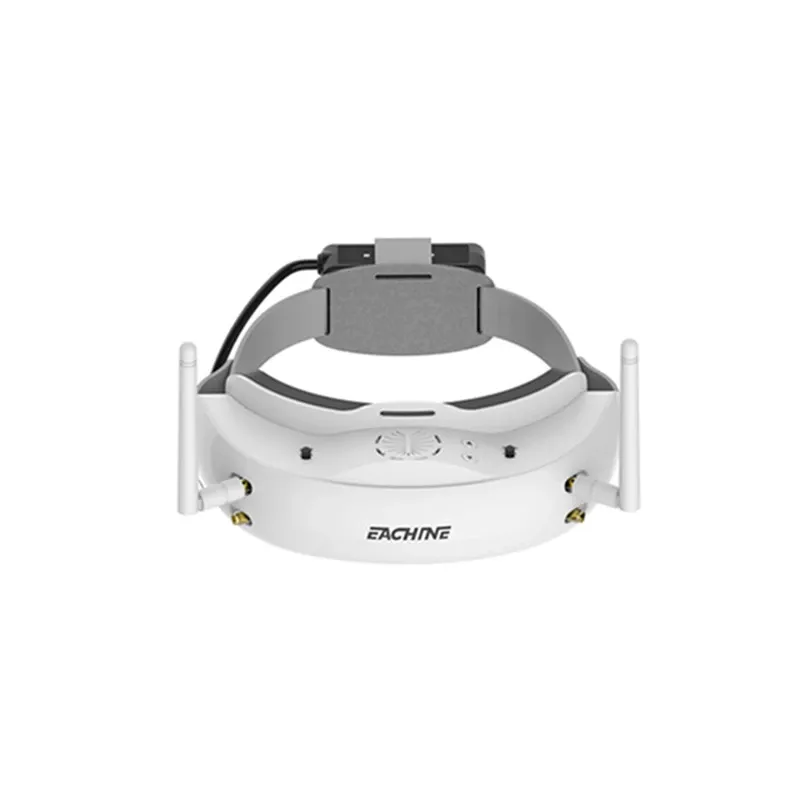

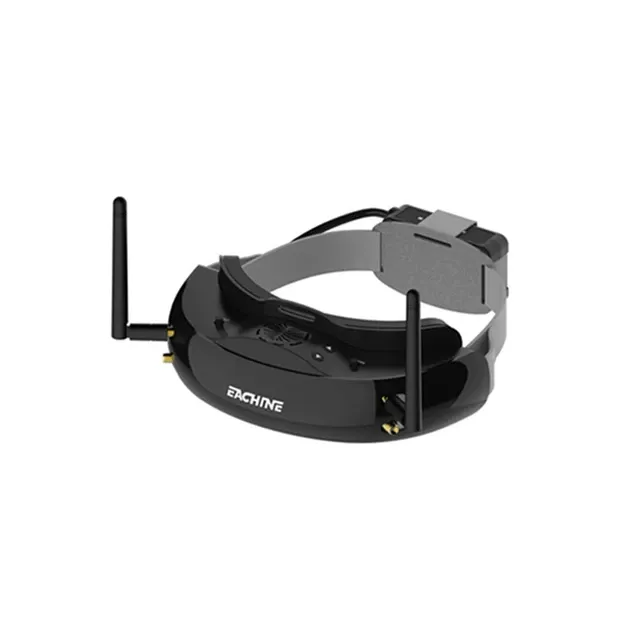

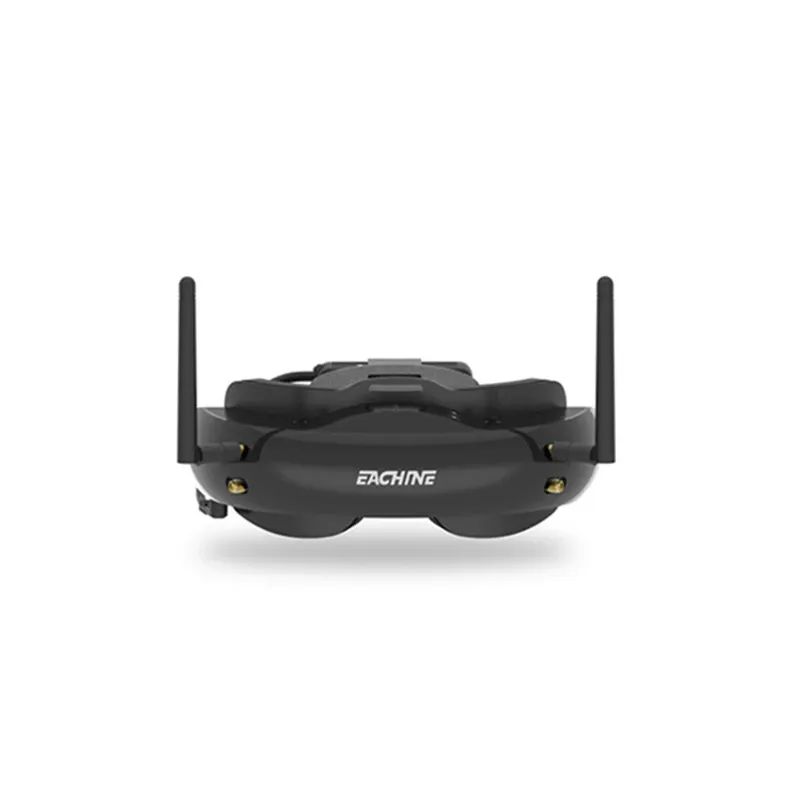

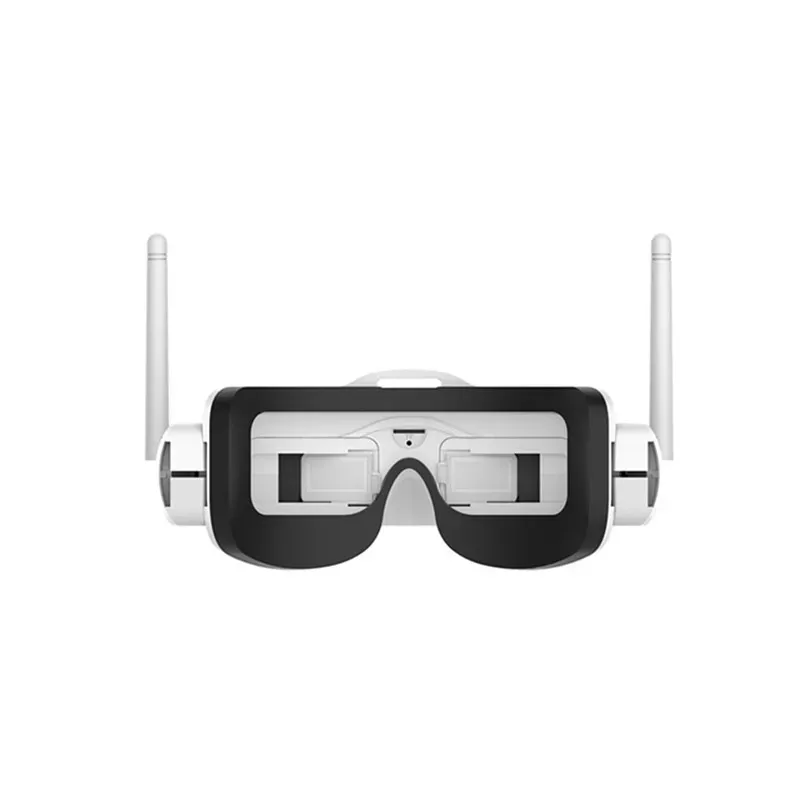

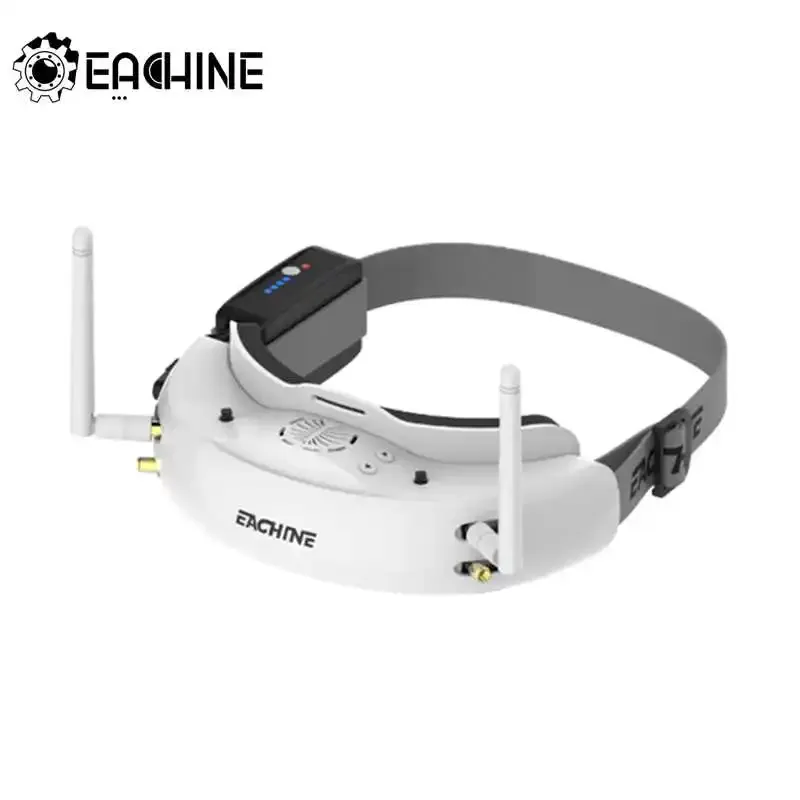

Eachine EV200D FPV Goggles

Specification:

• Brand Name: Eachine
• Item Name: EV200D
• Frequency: 5.8GHz
• Debug Frequency: 5300MHz
• Frequency Range: 5333-5945MHz
• Receiver Sensitivity: ≤ -93dB
• Antenna Impedance: 50Ω
• Audio and Video: AV in/out
• Video Format: NTSC/PAL
• Brightness: Adjustable
• Contrast: Adjustable
• Pupil Distance Adjusting: 56-72mm
• Power Input: 7.4V
• Minimum Voltage: 6.8V
• Operating Temperature: -10°C-40°C

Features:

• FOV: 42°
• Built-in DVR
• USB Power Supply
• Resolution: 1280*720
• Battery: 7.4V 1800mAh with LED indicator
• Aspect Ratio: 16:9/4:3, Default display is 16:9
• Supported Display Mode: HD Port in 2D/3D; AV in 2D/3D
• IPD Adjustable: 56mm-72mm, wide-ranging IPD, suits more pilots
• Optional Diopter Lens: Compatible with Fatshark diopter lens, 200/400/600 degrees selectable (diopter lens not included)
• Dual True Diversity: Supports open source RX modules

Package Included:

• 1 x EV200D goggles
• 1 x Zipper case
• 1 x 7.4V 1800mAh Battery
• 1 x Sponge
• 2 x FPV receiver (optional)
• 1 x USB Cable
• 1 x HD Port Cable
• 1 x Lens wiping cloth
• 1 x User Manual
