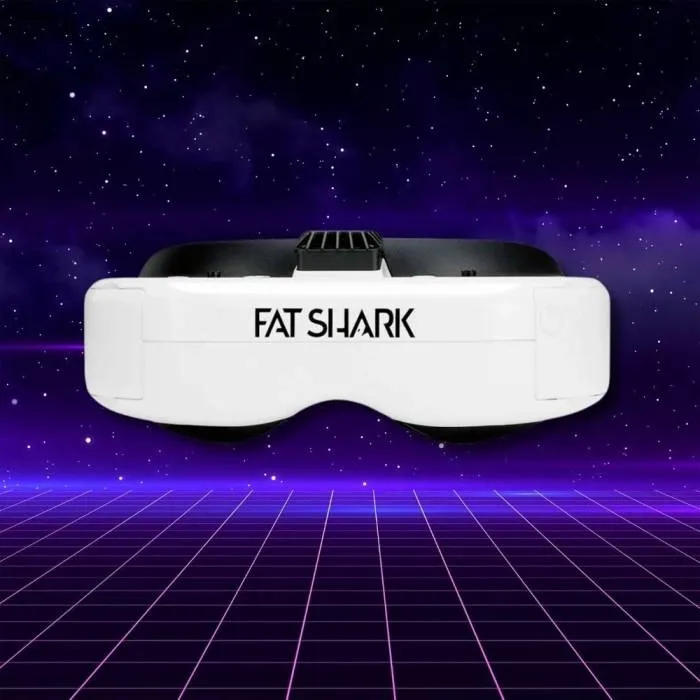

Introducing the Fat Shark Dominator HDO+ FPV Goggles

This new FPV Goggle is designed with a plethora of customizable features, ensuring an unparalleled flight experience tailored to each individual pilot. The HDO+ boasts a larger field of view and a higher resolution OLED panel, providing stunning visual clarity. Additionally, it features a fully updated optical engine that allows for precise focus and interpupillary distance (IPD) adjustments.

Features

• Brightness/Contrast Control
• Coarse Focus Adjustment
• Head Strap and Face Fit
• AV Connector Pin-Out
• Low-Battery Warning
• RX Power Switch
• DVR Operation
• Channel Select
• Compatibility
• Versatility
• Playback

Specifications

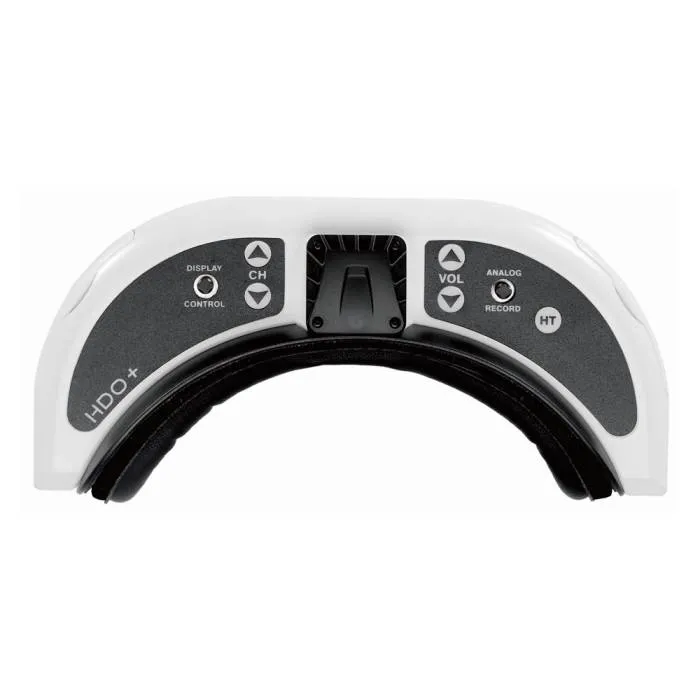

User Controls

• Display Control (Brightness and Contrast)
• Power Button / Fan Control
• Channel Selection
• Volume Control
• Mode Selection
• DVR Control

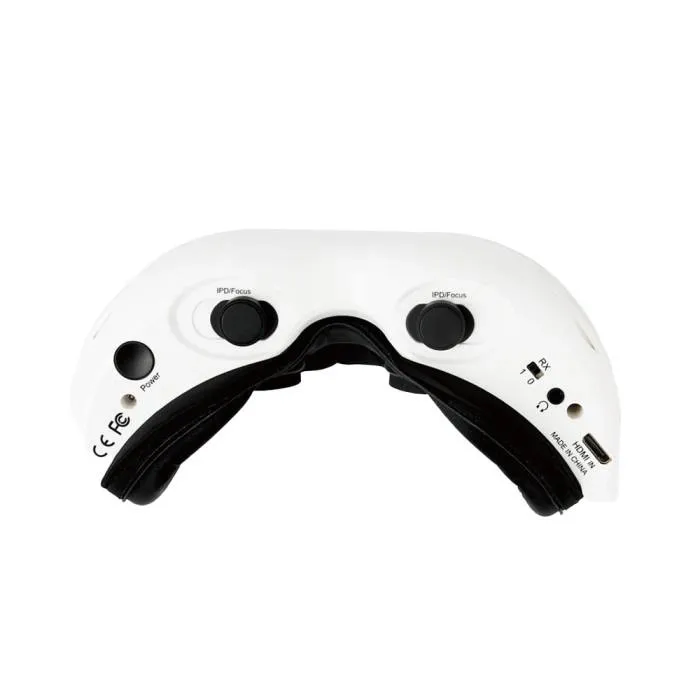

Interface

• 3.5mm 3p earphone port
• 3.5mm AV in/out port
• Power input port
• RF Module Bay
• Power Button
• MicroSD
• Audio: Stereo

Electrical

• Analog DVR: MicroSD support to 32 GB, Upgradeable via SD card
• Record Rate: 6 Mbps (MJPG compression, 30 fps, AVI)
• Power Supply: 7 – 25V input voltage (2S – 6S Supply)
• File playback: Native recording, no codec support

Mechanical

• Headset: Ergonomic molded headset with adjustable headband
• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 235.8 g

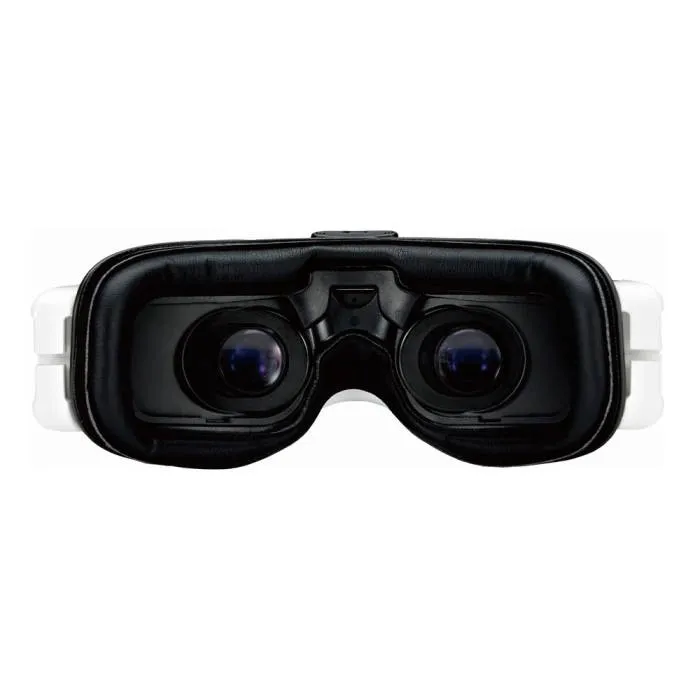

Optics

• IPD (interpupillary distance): 57 to 70 mm (adjustable)
• FOV (Field of View): 50 degrees diagonal
• Focus: +2 to -6 diopters (adjustable)

Display

• OLED Displays: Two seeya 0.49”
• DIGITAL VIDEO IN Mode: 16:9
• Auto-Selecting: NTSC/PAL
• Resolution: 1920 x 1080
• AV Mode: 16:9
• AV Mode: 4:3

Includes

• 1x Fat Shark Dominator HDO+ FPV Goggles
• 1x Lens Cleaning Cloth

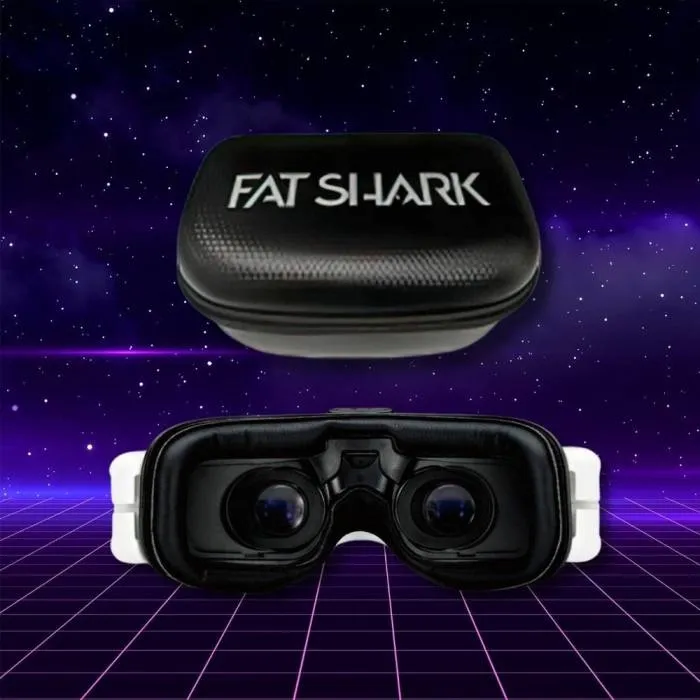

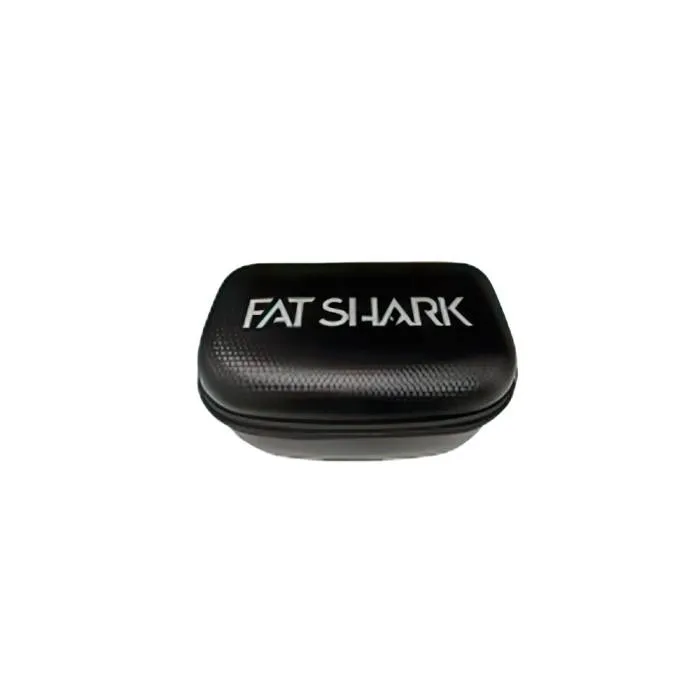

• 1x Carrying Case
