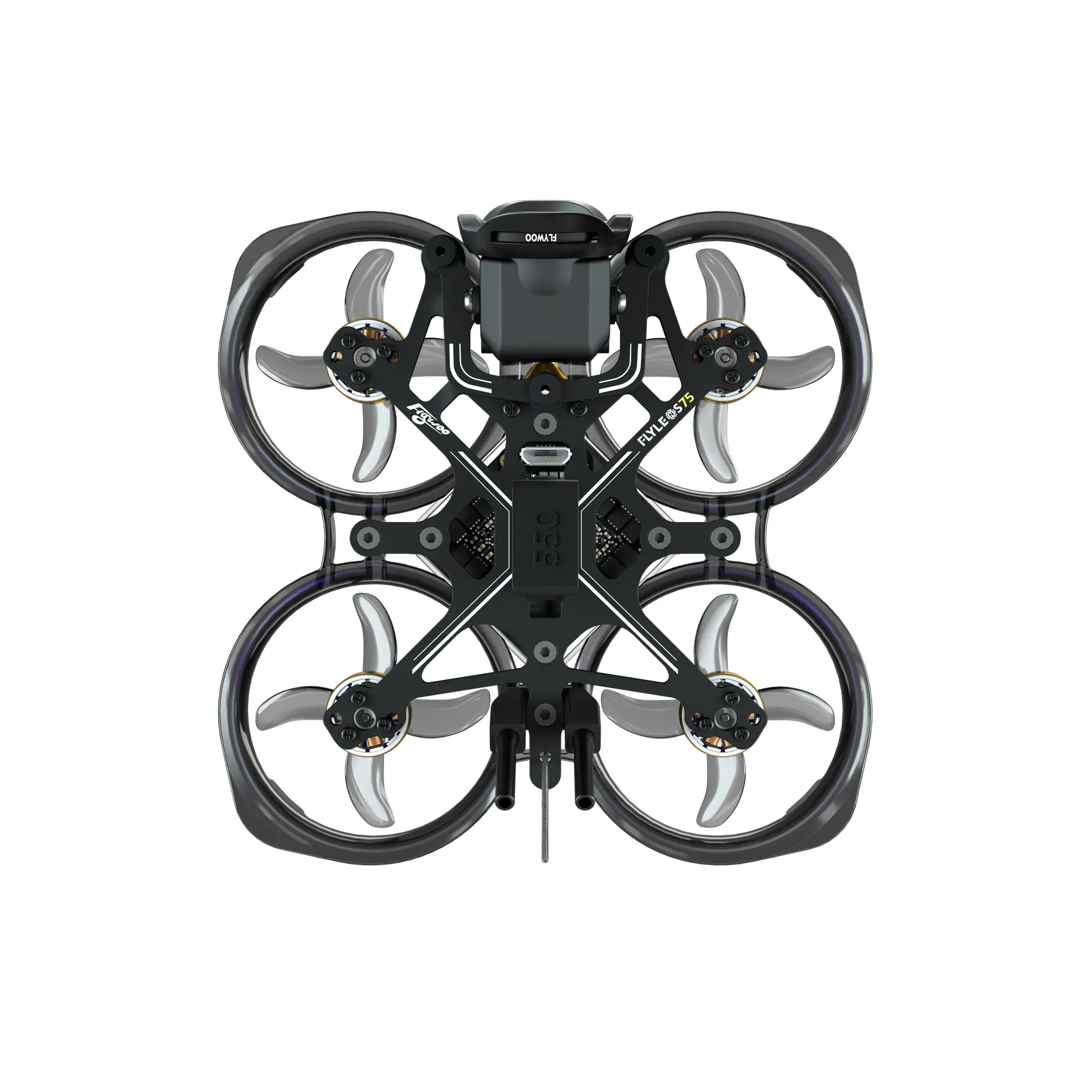

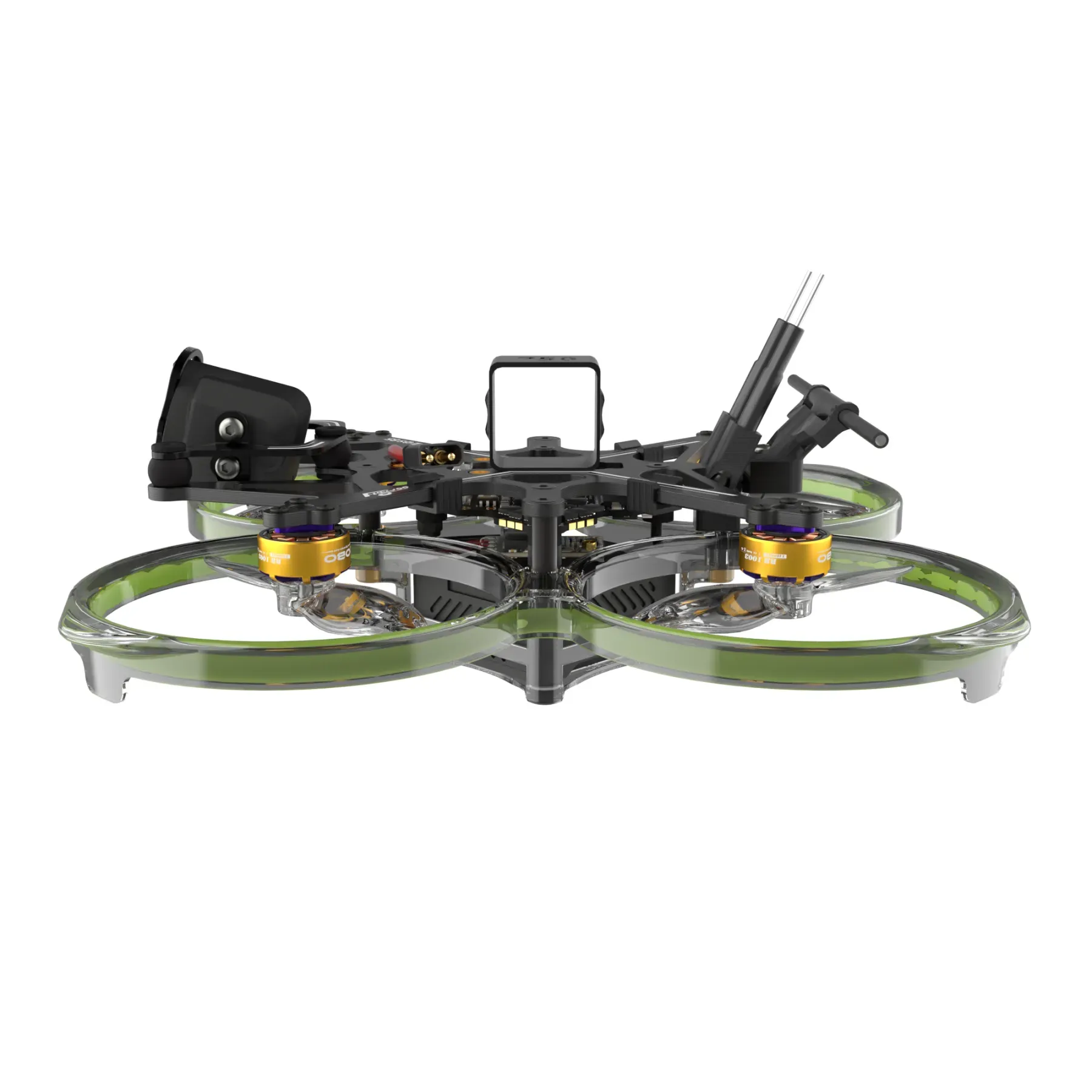

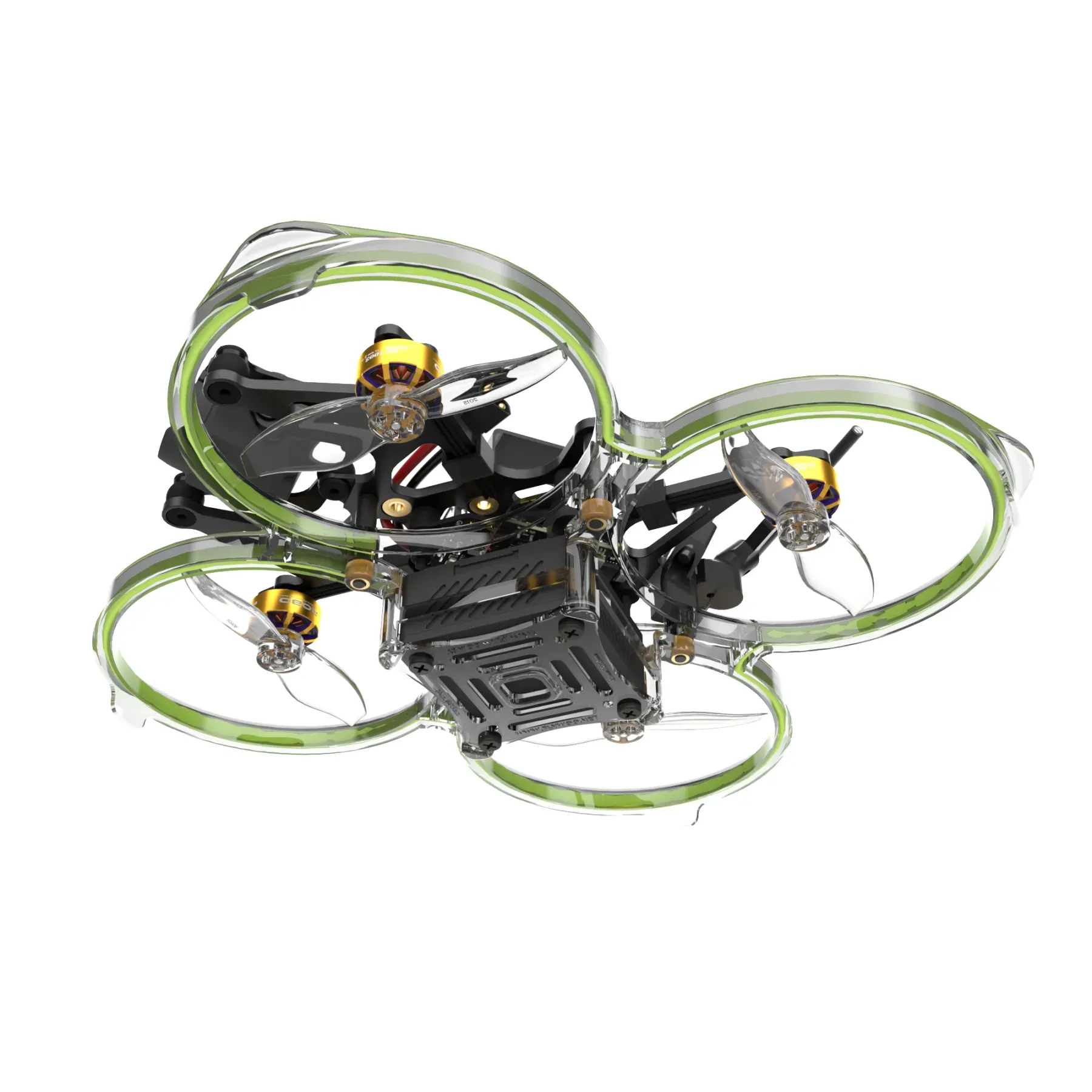

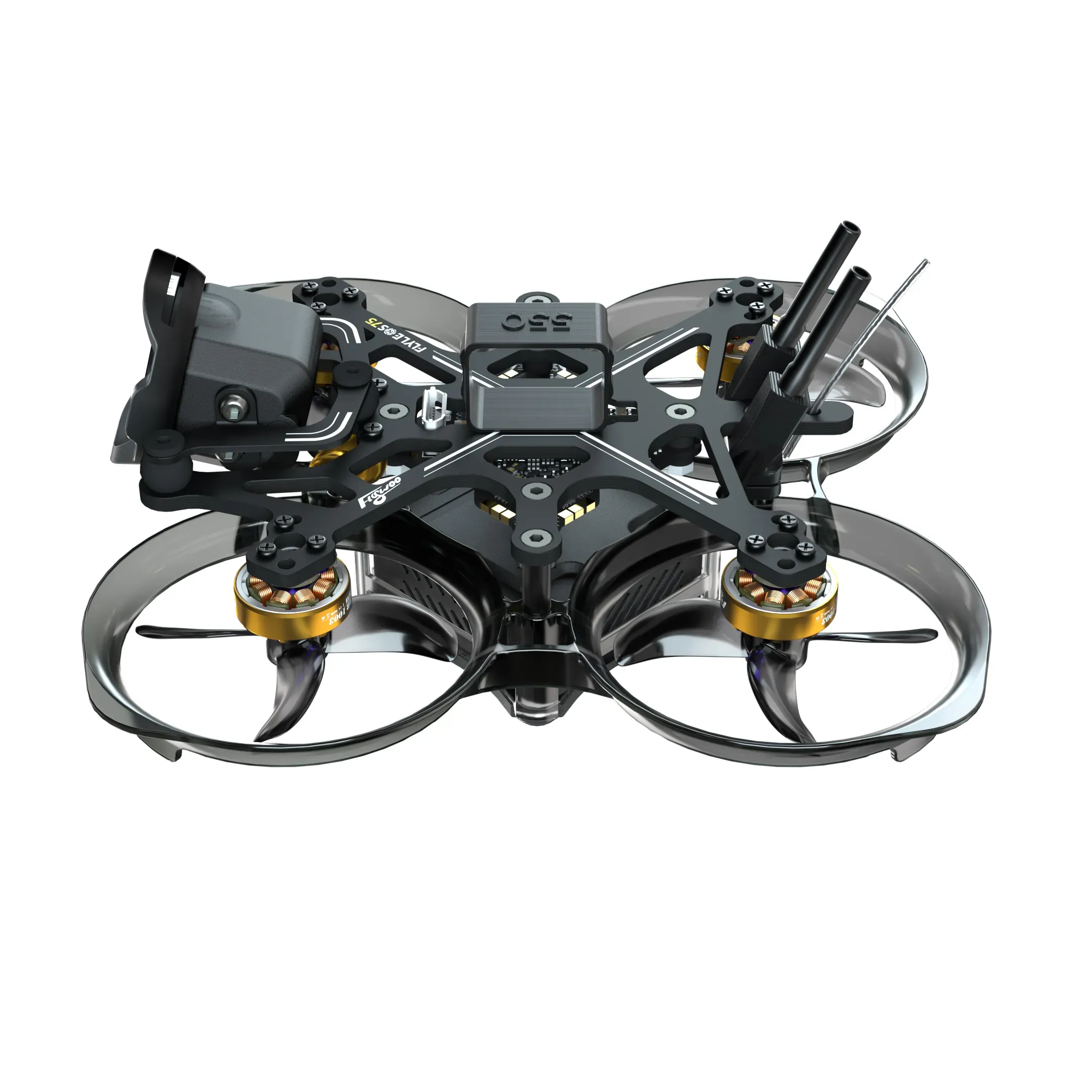

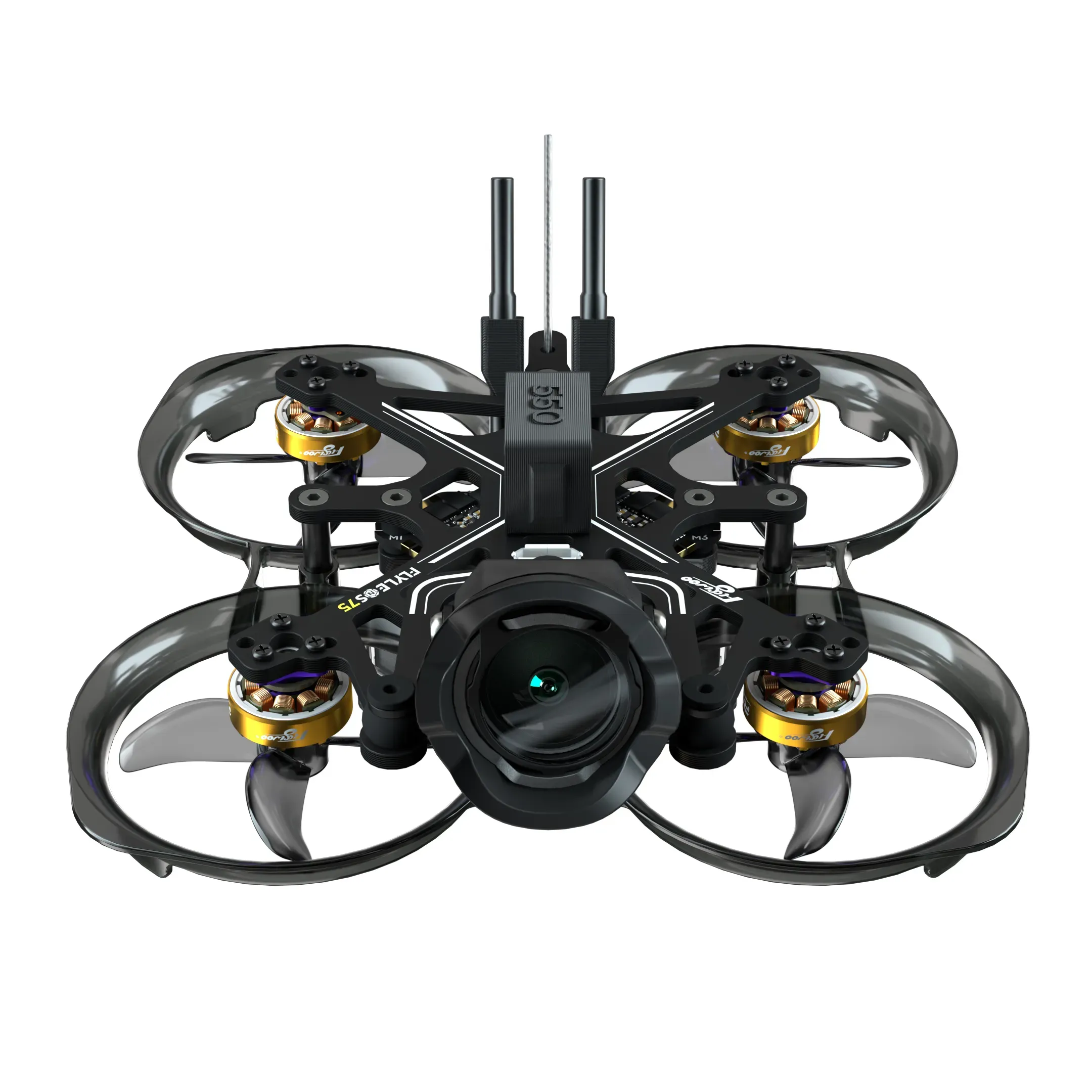

FLYLENS 85 Brushless Whoop

The FLYLENS 85 brushless whoop is an innovative small drone carefully crafted by the FLYWOO team, meeting international regulations. It adopts the latest O3 digital transmission system and is available in an optional O3 LITE version, making it the lightest O3 2-inch drone on the market. In addition to the O3 and O3 Lite versions, the FlyLens 85 offers strong adaptability with options like Walksnail Avatar, HDZero, and Analog, ensuring it meets the needs of all pilots.

Unique Design Features

• Three-point CNC damping platform for the camera
• Bottom-mounted O3 module
• High-strength PC injection-molded protective ring
• Quick-detach structure
• Special carbon black treatment process for the carbon fiber frame
• Reverse push propeller structure:
  • Increases power
  • Reduces noise
  • Allows easy adjustment of the battery's center of gravity position

The drone is lightweight and equipped with a 2S battery, 1003 motor, and 2-inch propeller, providing sufficient power and longer actual endurance. The Analog Version features the new GOKU 1-2S 5IN1 12A AIO, integrating the ELRS 2.4G and inheriting a 400mW VTX. This version pushes the limits of weight control without sacrificing performance.

Specifications

• Model: FlyLens 85 HD O3 2S Brushless Whoop FPV Drone
• Frame: FlyLens 85 Standard Frame kit
• Electronic: GOKU F405 HD 1-2S ELRS AIO V2 (42688)
• Transmission:
  • DJI O3 Air Unit
  • Walksnail Avatar HD System
  • HDZero Digital FPV System
  • Analog FPV System
• Camera:
  • DJI O3 Air Unit Camera Module
  • Walksnail Avatar Camera Module
  • HDZero Camera Module
  • Analog Camera Module
• Propeller: 2015 2-Blade Propeller
• Motor: ROBO 1003 14800KV
• Antenna: Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL
• LED: Flywoo Flexible LED + 3.3V Bec 2.7mm
• Battery: 2S LiPo Battery
• Flight Controller: GOKU F405 HD 1-2S ELRS AIO V2
• ESC: 12A ESC (integrated in AIO)

Highlights

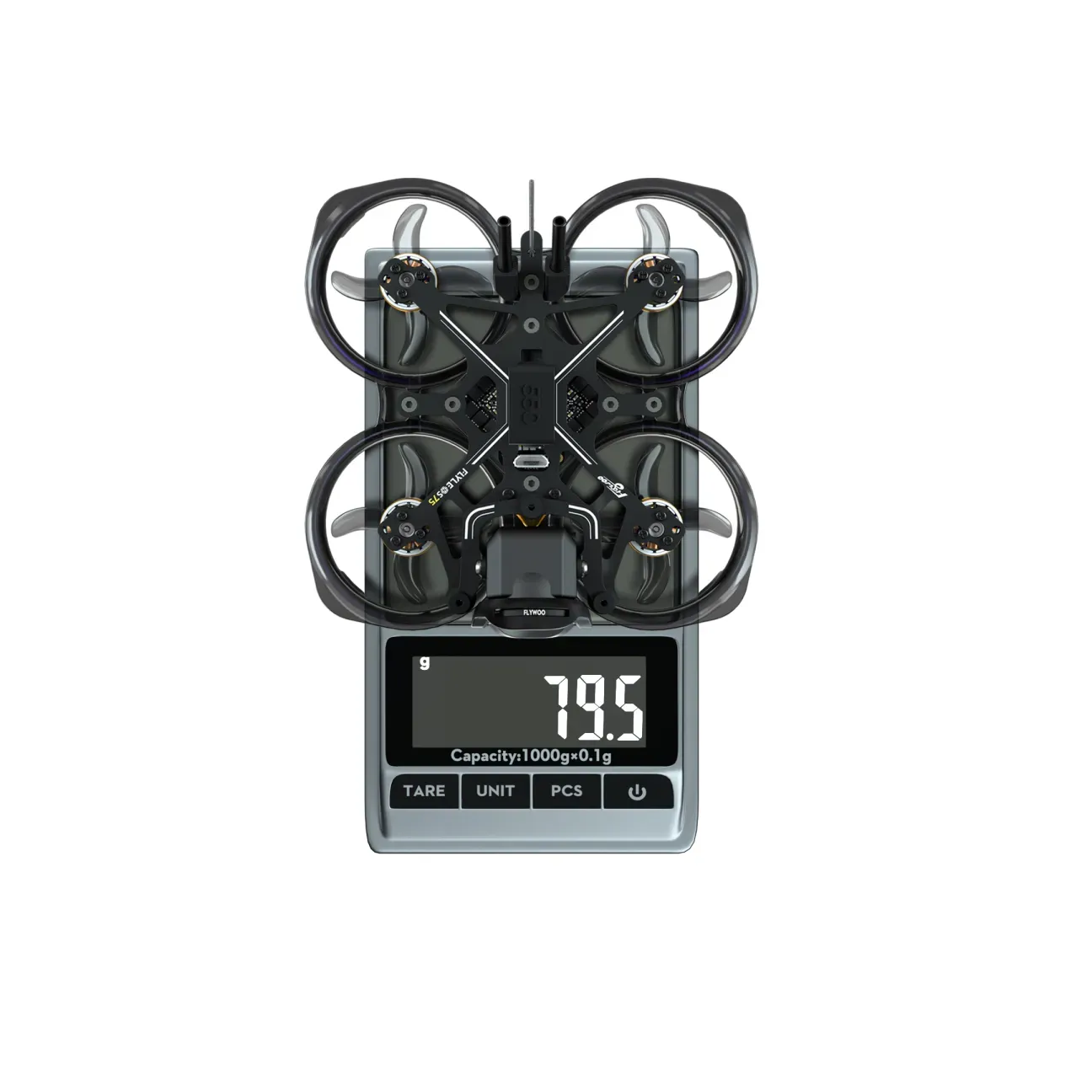

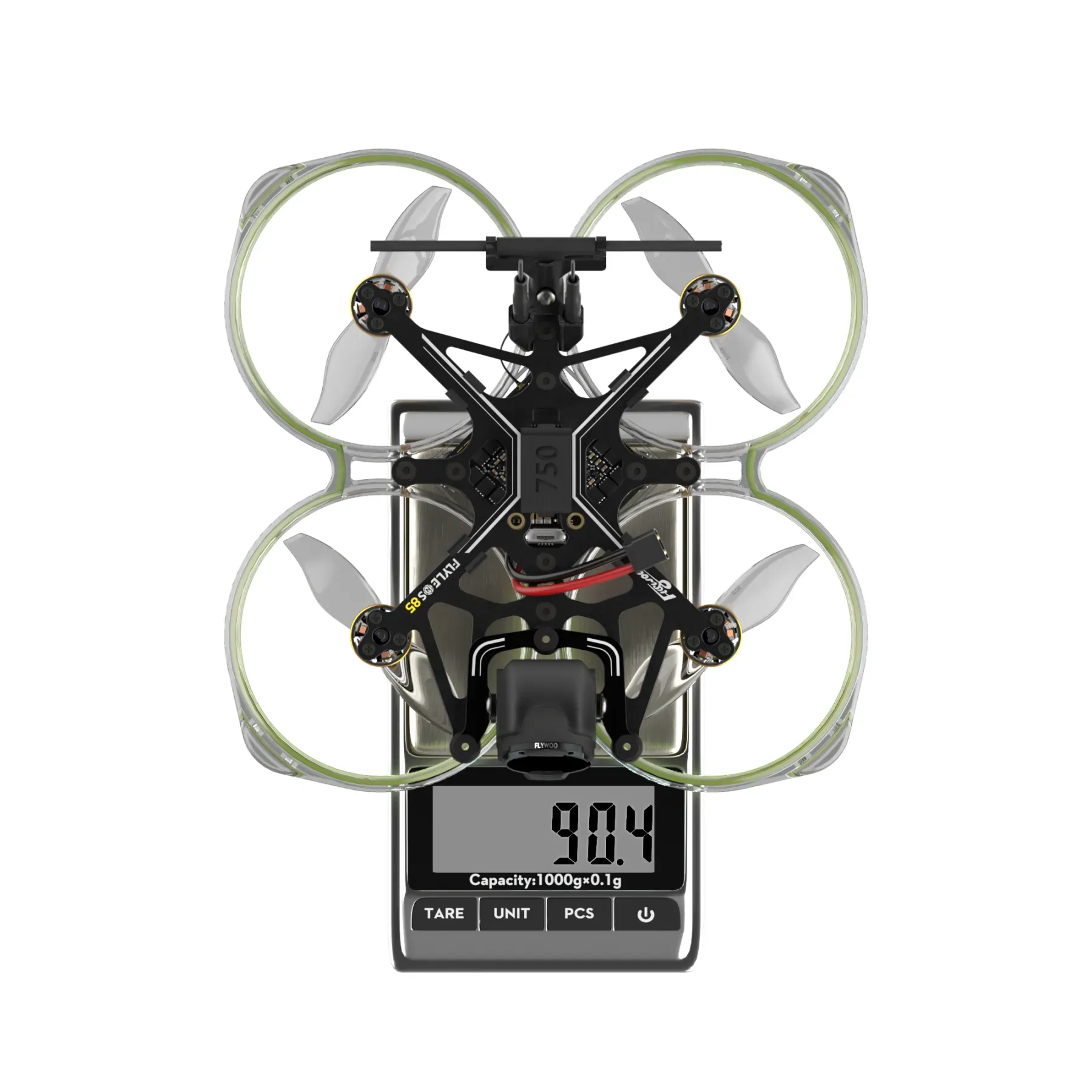

• Small size, lightweight, less than 100g: Lightweight 2-inch drone
• O3 digital transmission system: Long-distance, 4K high-definition, low latency (O3\O3Lite Edition)
• High-strength PC injection-molded protective ring: Enhances the strength and safety of the drone

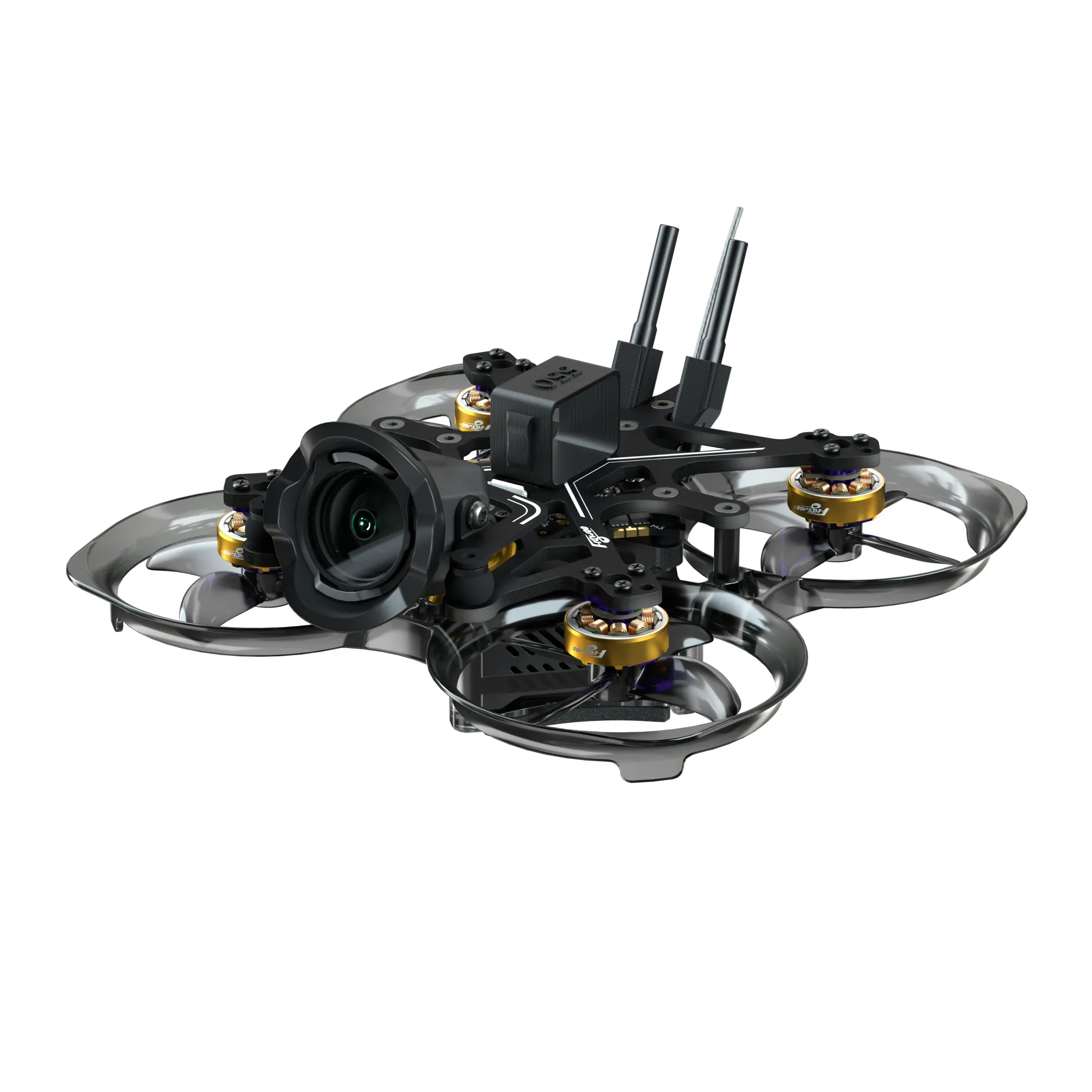

• Unique CNC damping platform for camera: No jelly effect, records high-quality video (O3\O3Lite Edition)

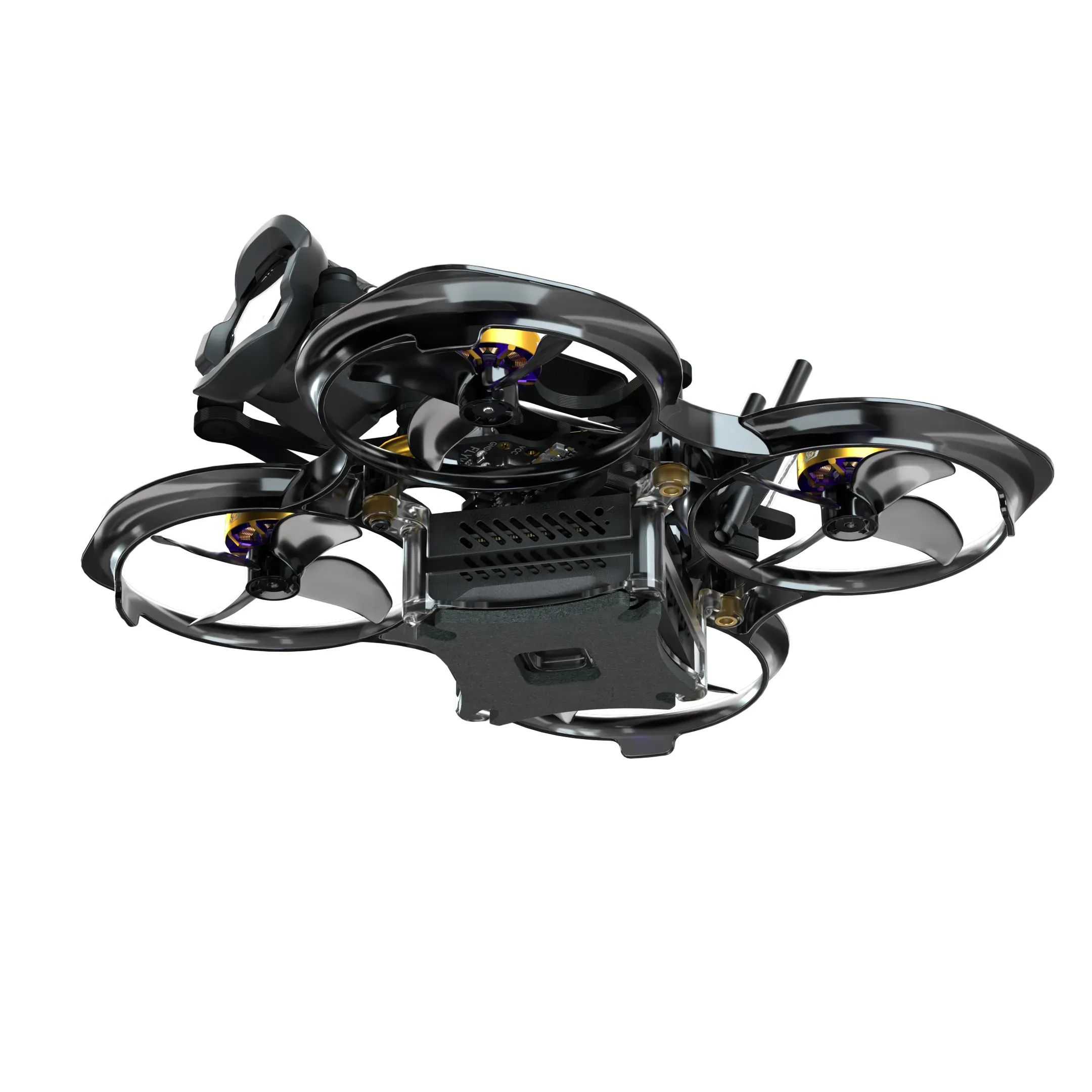

• Bottom-mounted transmission PC placement compartment: Protects and enhances heat dissipation
• Quick-detachable frame: Easy separation of parts
• Reverse push propeller power: Stable flight and longer endurance
• Equipped with wireless control neon light strip: Can carry external devices
• Highly adaptable: Compatible with various digital and analog systems (O3, Walksnail Avatar, HDZero, Analog)

Experience the innovation and adaptability of the FLYLENS 85 brushless whoop, designed to meet the diverse needs of drone pilots.
