CineLog25 v2
GEPRC
Cinewhoop
Name | Value |
---|---|
Weight | 128 |
Price | 189 |
Frame | GEP-CL25 |
Propellers | GEMFAN D63-3 |
Motors | GR1404 4500KV (Upgraded Version) |
Recommended Battery | 4S 450-750mAh or GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery |
GPS | optional |
Flight Controller | F411-35A AIO |
Camera | Caddx Ratel2, Runcam Wasp |
Receiver | BNF-DJI, ELRS 2.4G, Frsky, TBS Crossfire, PNP |
Shops
Banggood
GEPRC Cinelog25 Cinelog 25 V2 HD DJI O3 2.5 Inch 4S RC FPV Racing Drone with TAKER G4 35A AIO ESC Digital HD System
Banggood
GEPRC Cinelog25 Cinelog 25 V2 HD 2.5 Inch 4S RC FPV Racing Drone PNP BNF with TAKER G4 35A AIO ESC Runcam Link WASP Digital System
Description

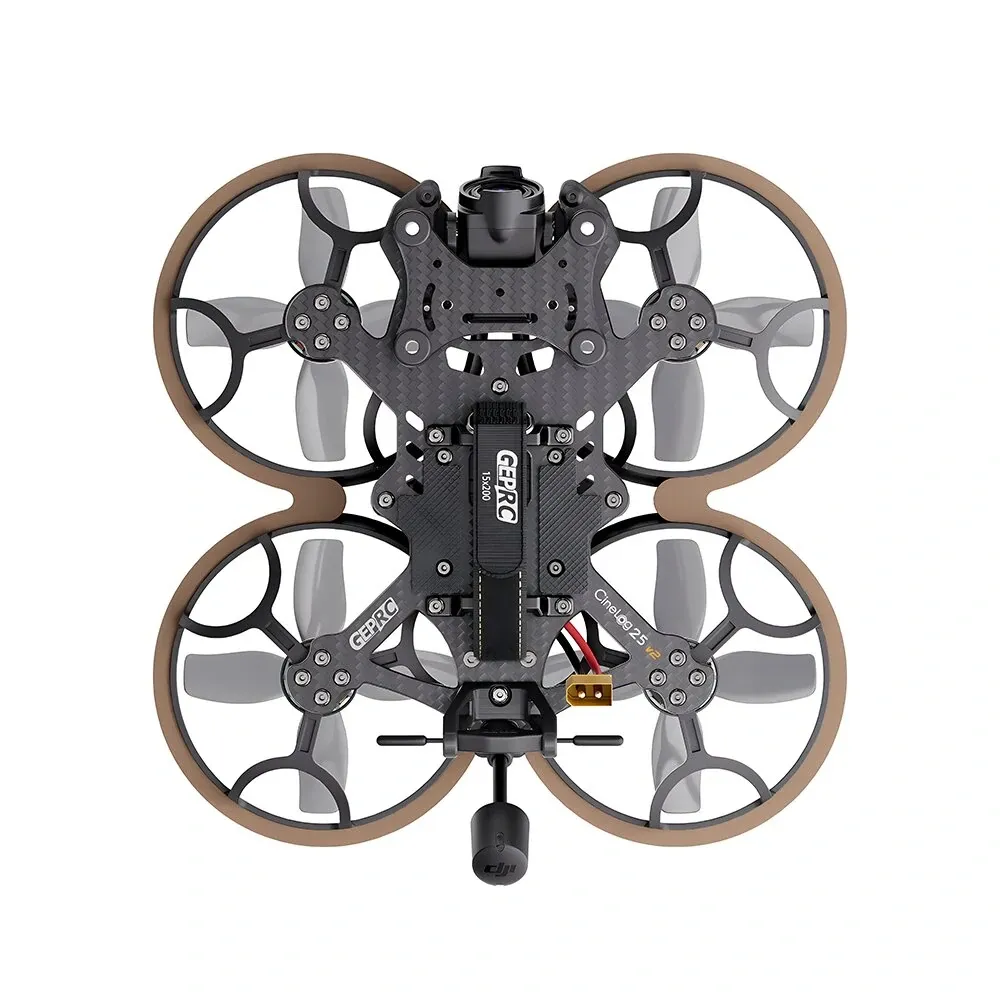

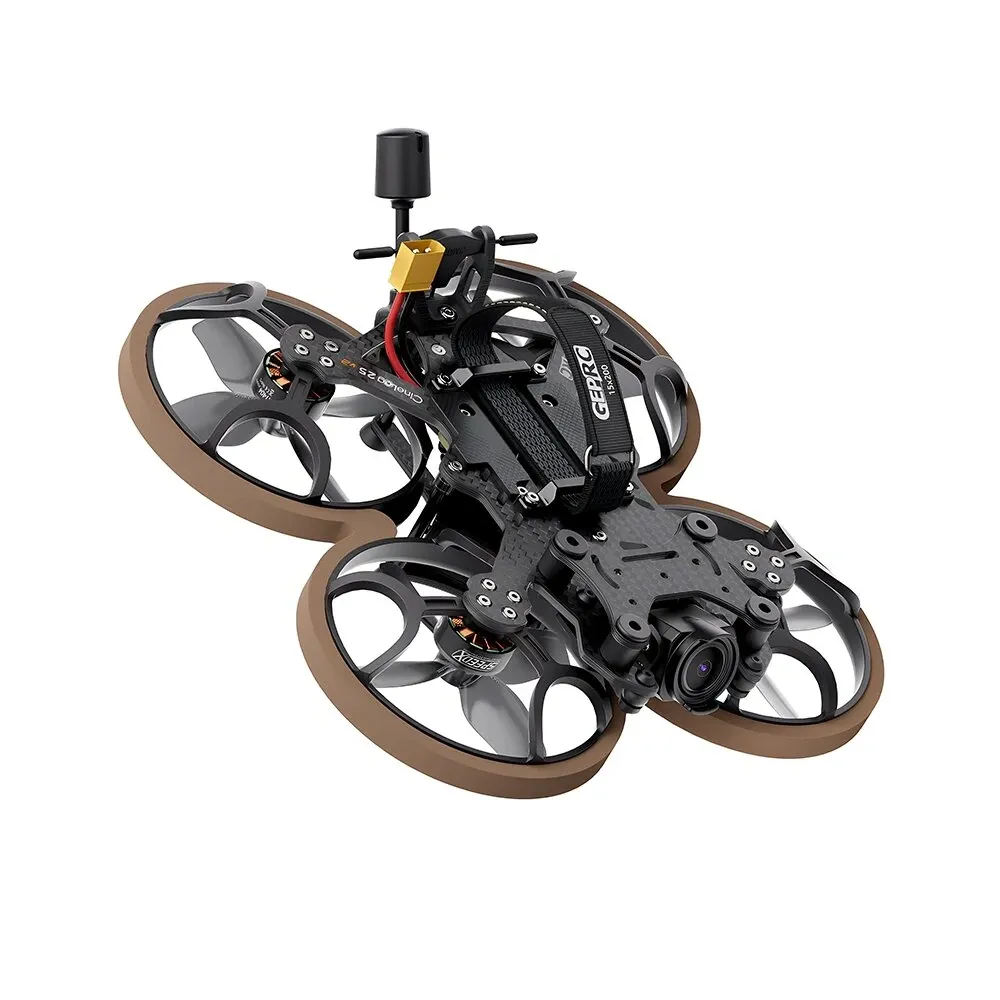

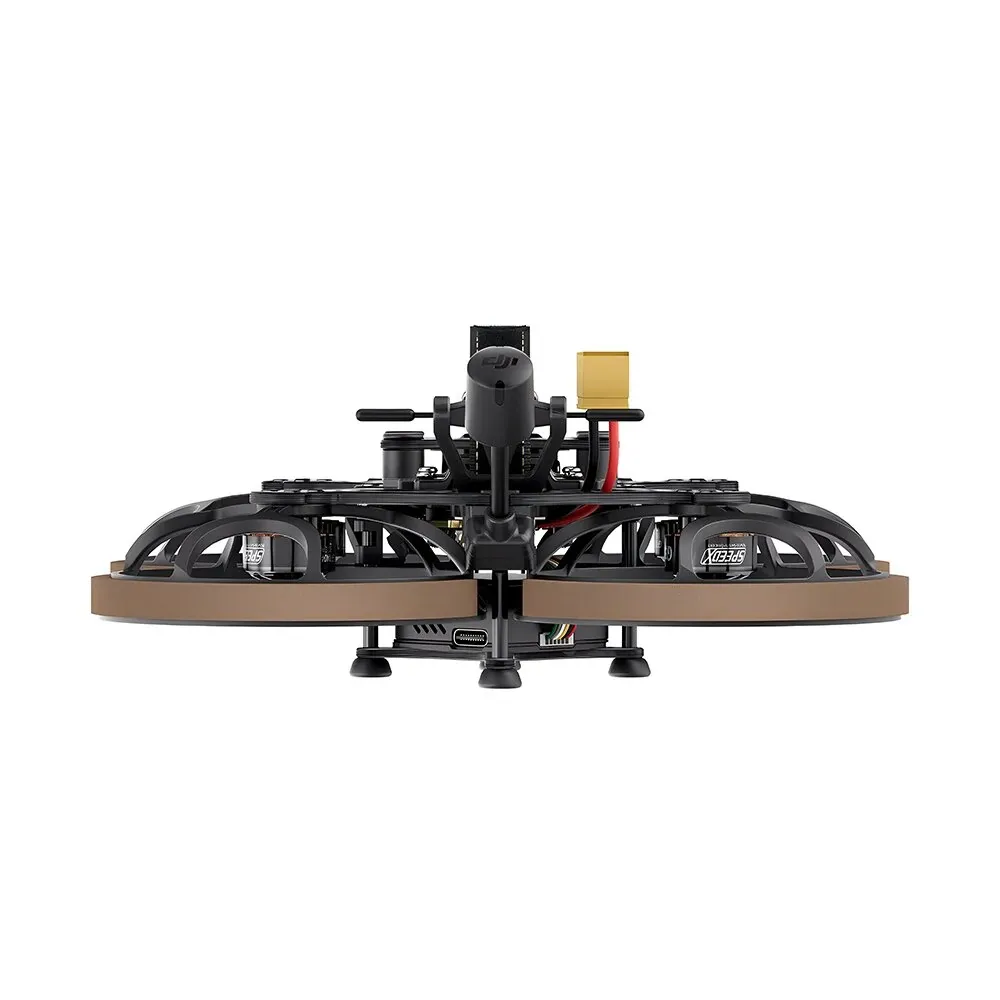

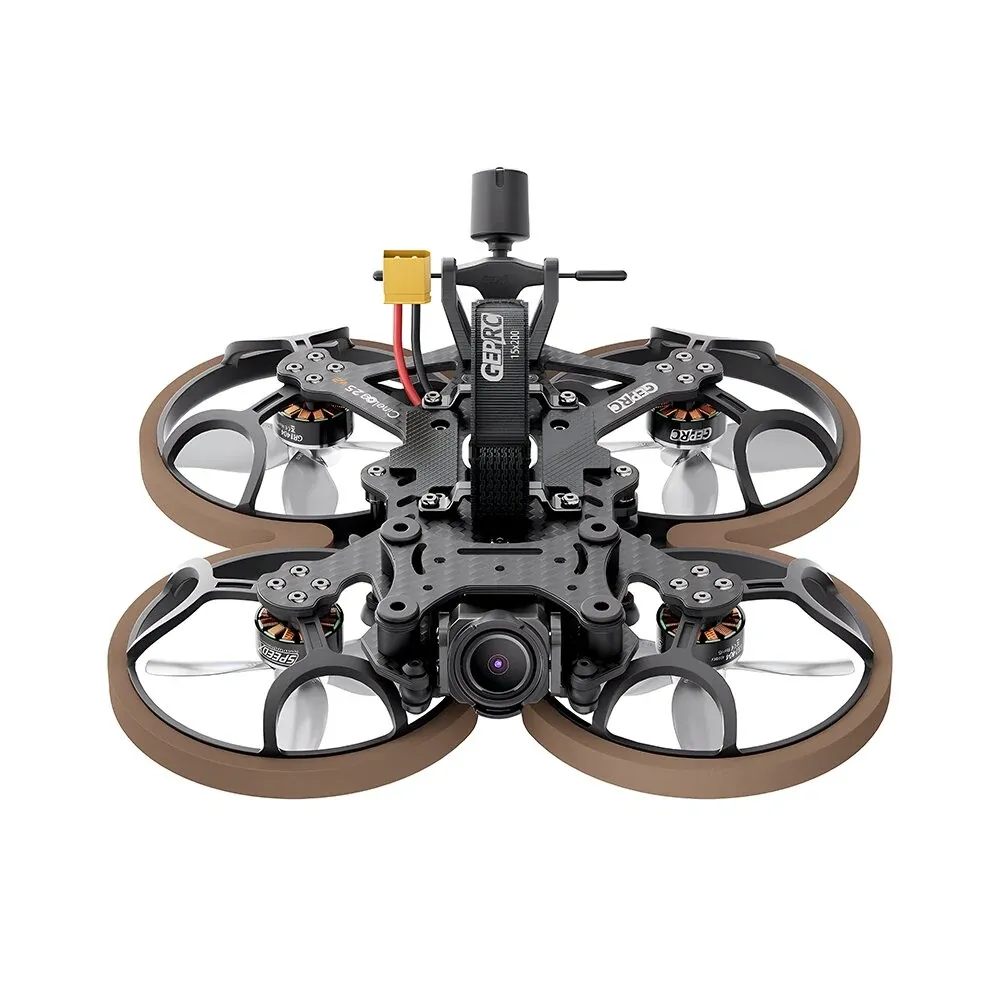

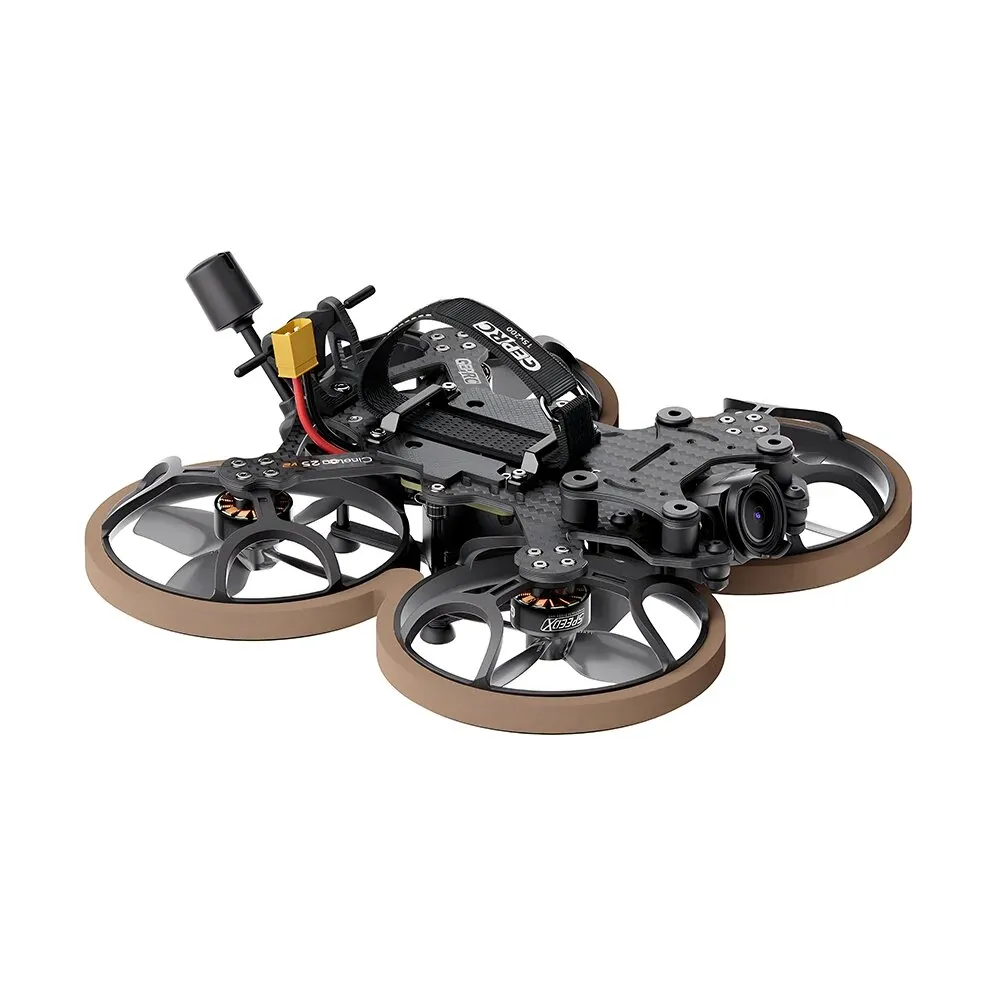

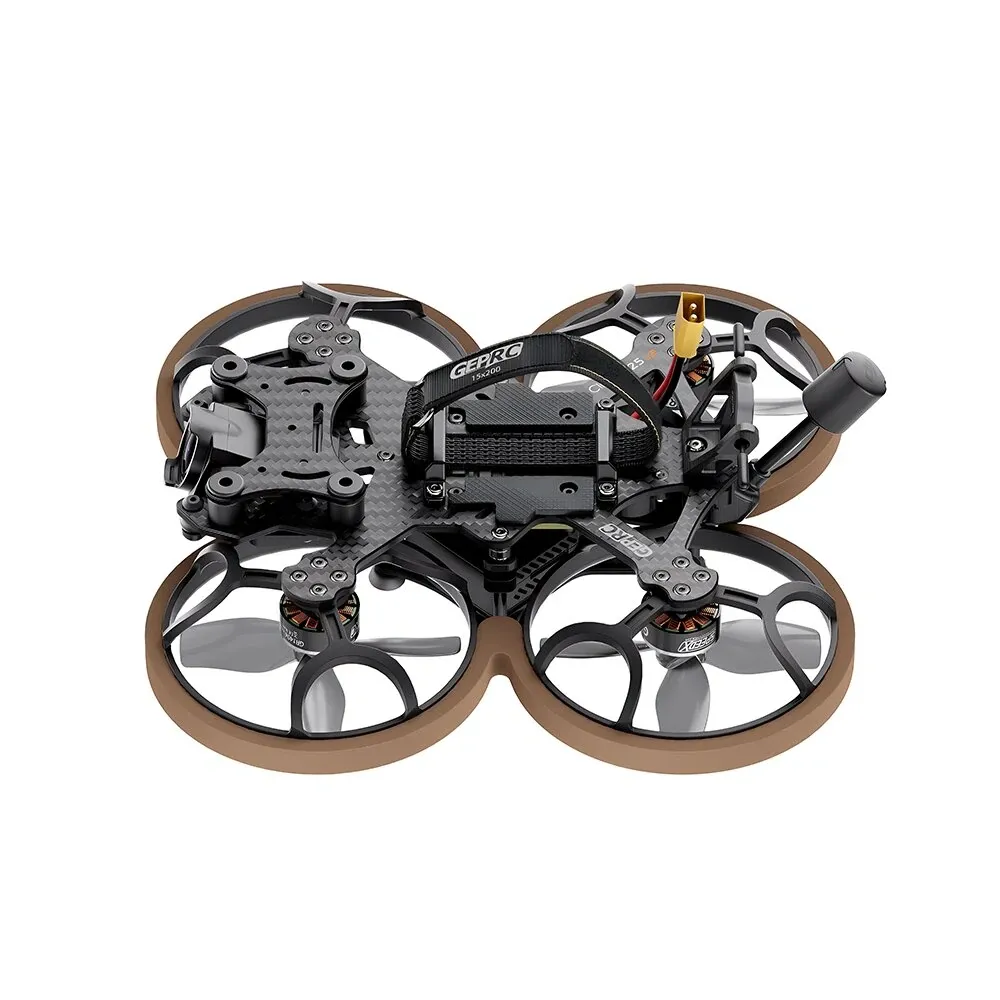

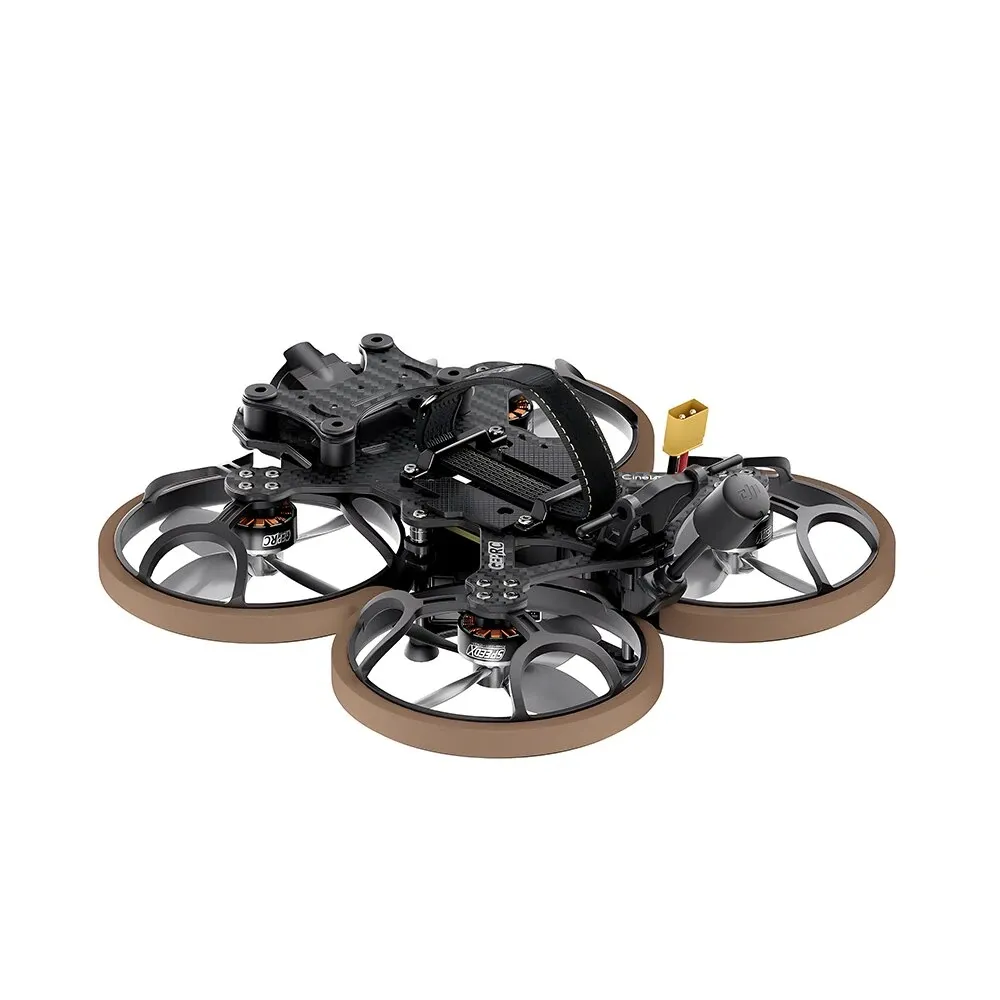

GEPRC CineLog25 CineWhoop Drone
Overview
The GEPRC CineLog25 CineWhoop drone is designed for complex indoor environments and is available in three versions: CineLog25 HD PRO, CineLog25 HD Nano, and CineLog25 Analog. Its most noteworthy feature is its lightweight design, suitable for shooting video with the GP Lite camera. The drone adopts a popular backward push design, enhancing flight efficiency and reducing noise. The VISTA HD is centrally placed to balance the quadcopter's center of gravity. The drone also features a redesigned shock absorption structure for the camera mount, eliminating jello effects and providing stable footage.
Key Features
- New Camera Damping System: Adjustable damping construction to suit various flight states, reducing vibration and noise.
- Brand-new Pusher Frame: Ultra-light carbon plate with increased strength (by 20%) and efficiency (by 15%).
- Low Noise Optimization: Increased air inlet volume with EVA foam cushioning to reduce noise.
- Long Range Flight: Efficient power matching with GR1404 4500KV motors, improving flight time.
- Low Center of Gravity Design: Optimized for air inlet structure, increasing efficiency by at least 15%.
- Camera Compatibility: Compatible with SMO 4K, GP6 Lite, GP8 Lite, etc.
- Adjustable Lens Angle: Camera angle can be adjusted between 0-40 degrees.
- EVA Foam Cushioning: Integrated EVA design for coordinated appearance and strength.
- Optimized Bottom Design: Strengthens landing protection for electronic equipment.
- Camera Power Line Output: Allows camera (GP6 & GP8) power control via remote.
Changelog
- July 13th, 2022: Flight controller changed from GEP-20A-F4 to F411-35A AIO.
Specifications
- Brand: GEPRC
- Frame: GEP-CL25
- Wheelbase: 109mm
- Flight Controller: F411-35A AIO
- MCU: STM32F411
- Gyro: 6-Axis
- OSD: BetaFlight OSD w/ AT7456E chip
- ESC: BLheli_S 20A
- VTX: 5.8G 600mW VTX
- Camera: Caddx EOS2 / Runcam Nano2
- Props: GEMFAN D63-3
- Motors: GR1404 4500KV (Upgraded Version)
- Antenna: GEPRC Momoda 5.8g RHCP
- Weight (Analog): 128g (without battery)
- Battery: Recommended 4S 450-750mAh or GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery
Includes
- 1x CineLog Quadcopter
- 4x D63-3 Props (Pairs)
- 1x GP Lite camera 3D TPU Seat
- 2x EVA Pad
- 2x Battery non-slip mat
- 2x Battery strap
- 1x Screwdriver
