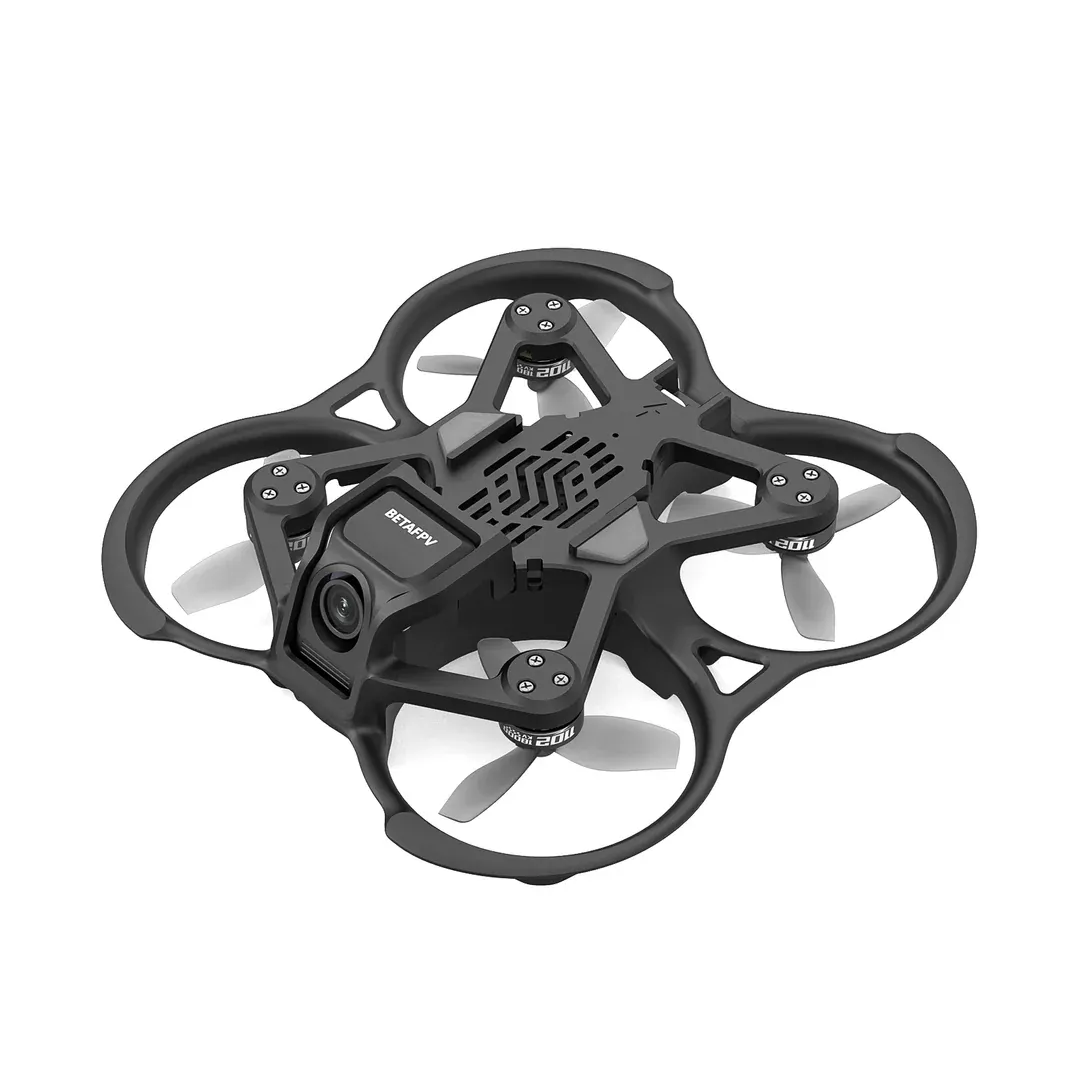

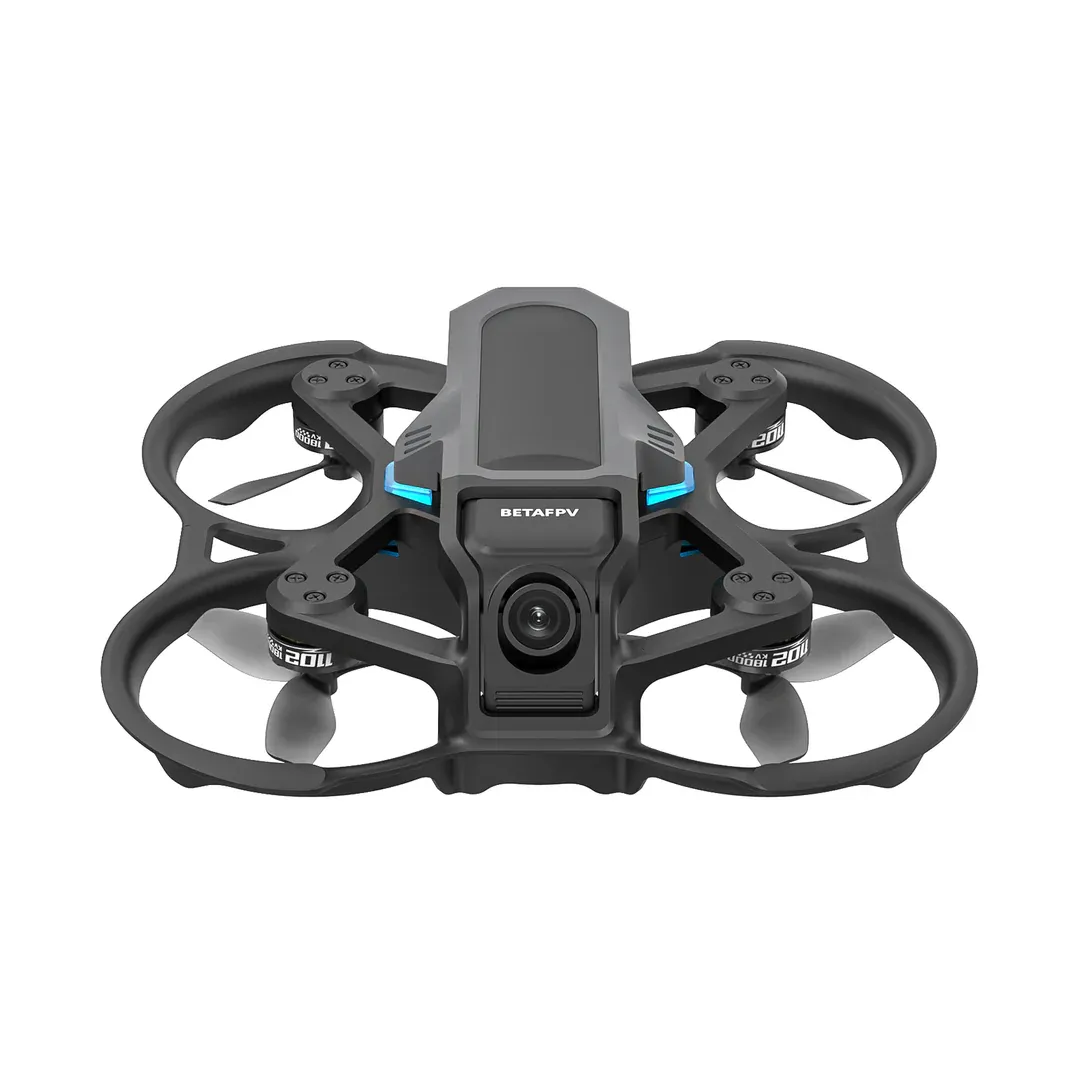

Aquila16 Brushless Quadcopter

Overview

The Aquila16 Brushless Quadcopter is an advanced choice for beginners, featuring an inverted design and modular aerodynamic frame. With a flight time of up to 8 minutes and a maximum distance of 200 meters, it provides stable hovering and enhanced protection, allowing consistent flight practice and better control. Accelerate your FPV learning curve and become a pro with the Aquila16.

Key Features

• Stable Hovering: Excellent hover capability ensures safe and effortless flight, ideal for learning.
• Durable Build: Made with PA12 material, the frame offers excellent impact resistance against drops and impacts.
• Long Flight Time: Equipped with an 1100mAh battery for up to 8 minutes of flight time and 200 meters distance. For freestyle or racing, a 650mAh battery is recommended.
• Easy Installation: The fixed battery configuration port and modular design minimize redundancy, making installation simple and hassle-free.
• Advanced Flight Modes: Offers three flight and speed modes, catering to novices and pros, gradually unlocking advanced skills.

Specifications

• Item: Aquila16 Brushless Quadcopter
• Battery: Aquila16 Exclusive Battery | 1100mAh (Default), 650mAh (Optional)
• Camera: C02
• Camera Angle Adjustment: 15°-30°
• Charger Used: BT2.0 Battery Charger and Voltage Tester V2
• Flight Controller: Aquila16 V1.0
• Flight Modes: N/S/M Mode
• Flight Time (4.35V-3.4V): 8 mins
• Frame Material: Black PA12
• Motors: 1102 | 18000KV
• Power Connector: BT2.0 Connector
• Propellers: Beta-45mm 3-Blade Props
• Receiver: Serial ELRS 2.4G 3.0 Version
• Receiver Binding: Power up 3 times
• Video Transmitter (VTX): Aquila 25-350mW VTX
• VTX Power and Range: 25mW (Range: 80m), 350mW (Range: 200m)
• Wheelbase: 86mm
• Weight (Without Battery): 47.1g

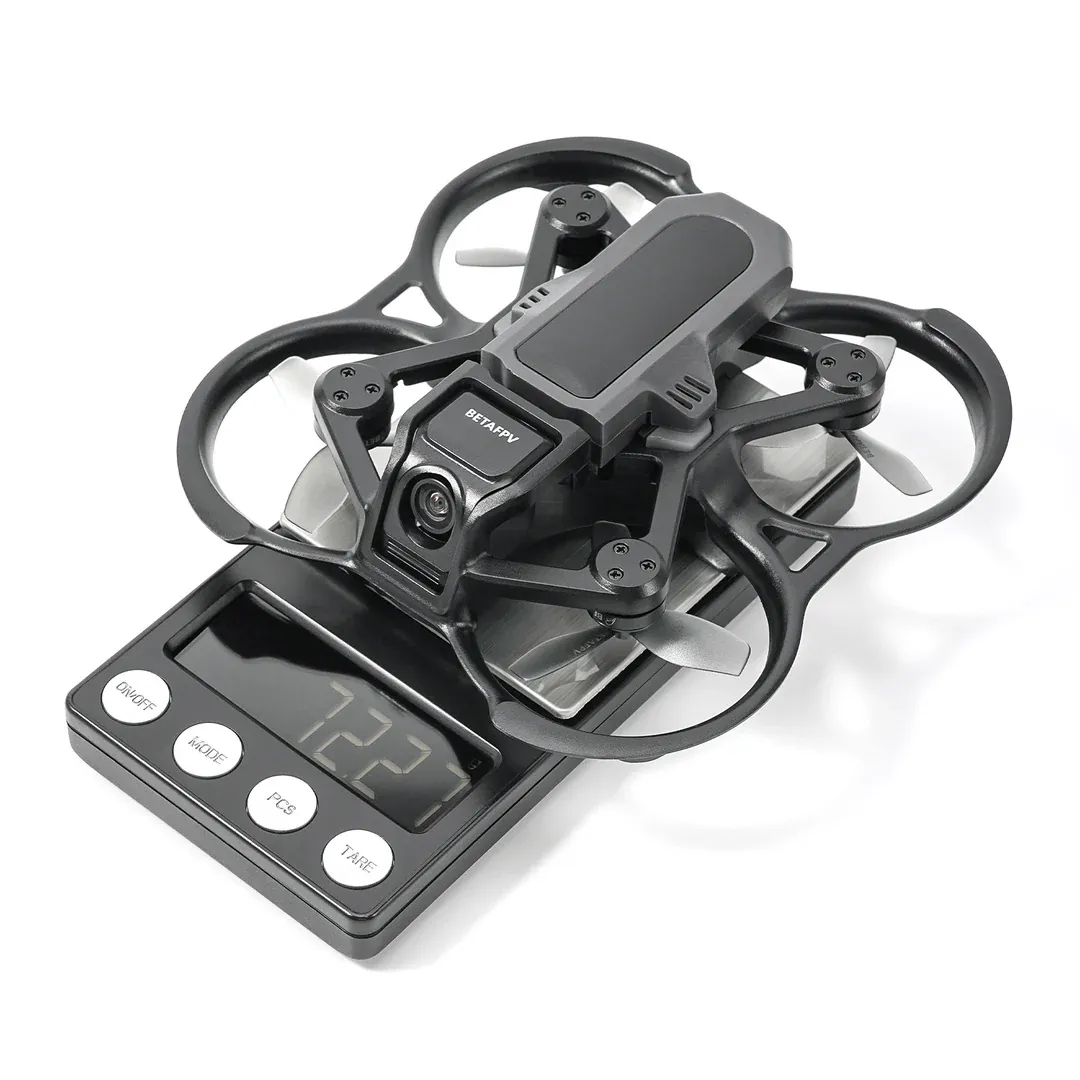

• Takeoff Weight (With 1100mAh Battery): 72.5g

Fly Further, Fly Longer

With an impressive 8 minutes flight time and a 200 meters flight distance, enjoy uninterrupted practice sessions indoors or outdoors. The 350mW video transmission system ensures real-time, stable video transmission up to 200 meters.

Auxiliary Flight Function

The Aquila16 excels in hover capability, ensuring safe and effortless flight with a built-in highly precise barometer. It benefits from position hold mode and auto-hovering, ensuring stability and emergency landing in situations of lost control or low battery. Capture stunning footage with VR03 FPV Goggles.

Designed to Make Flying Easier

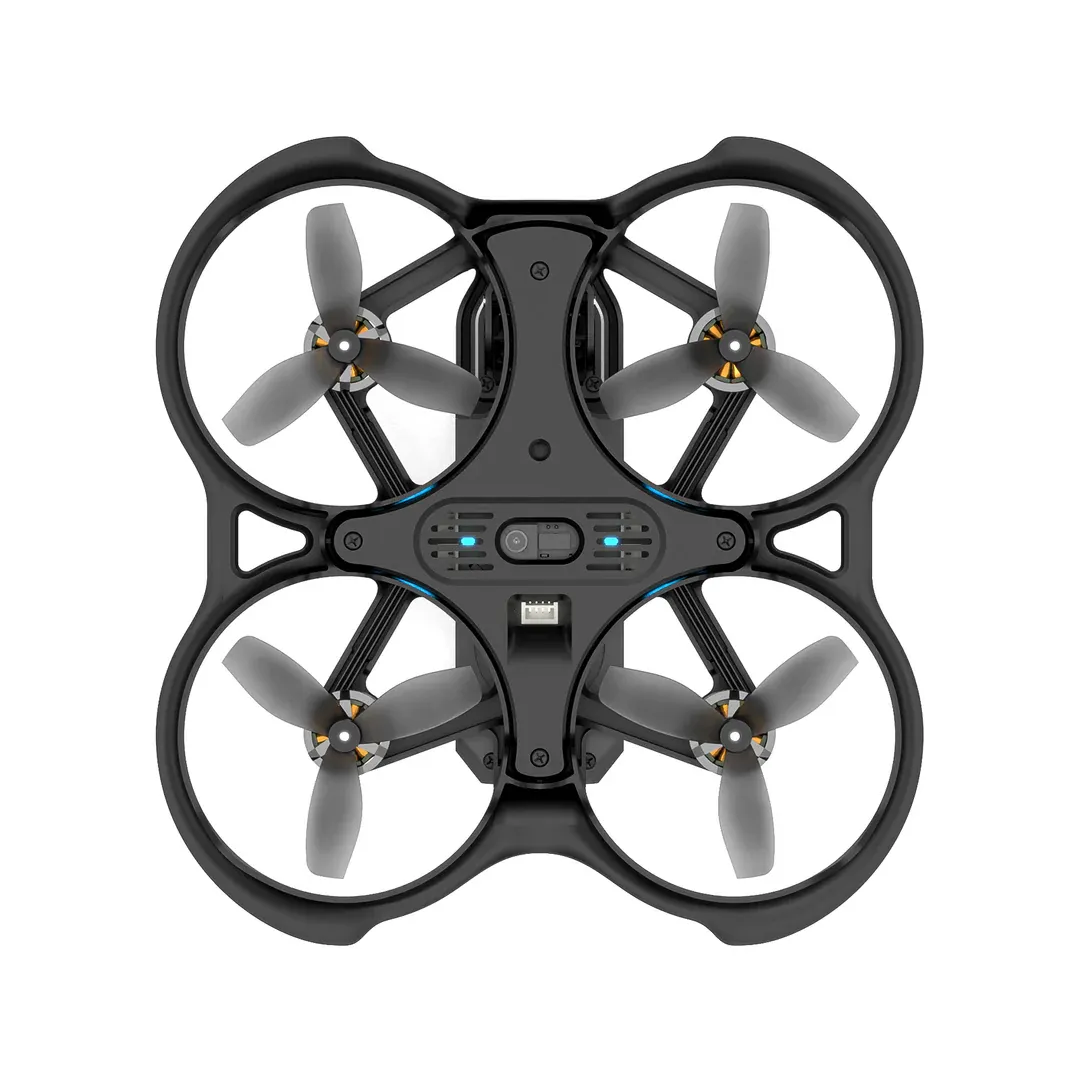

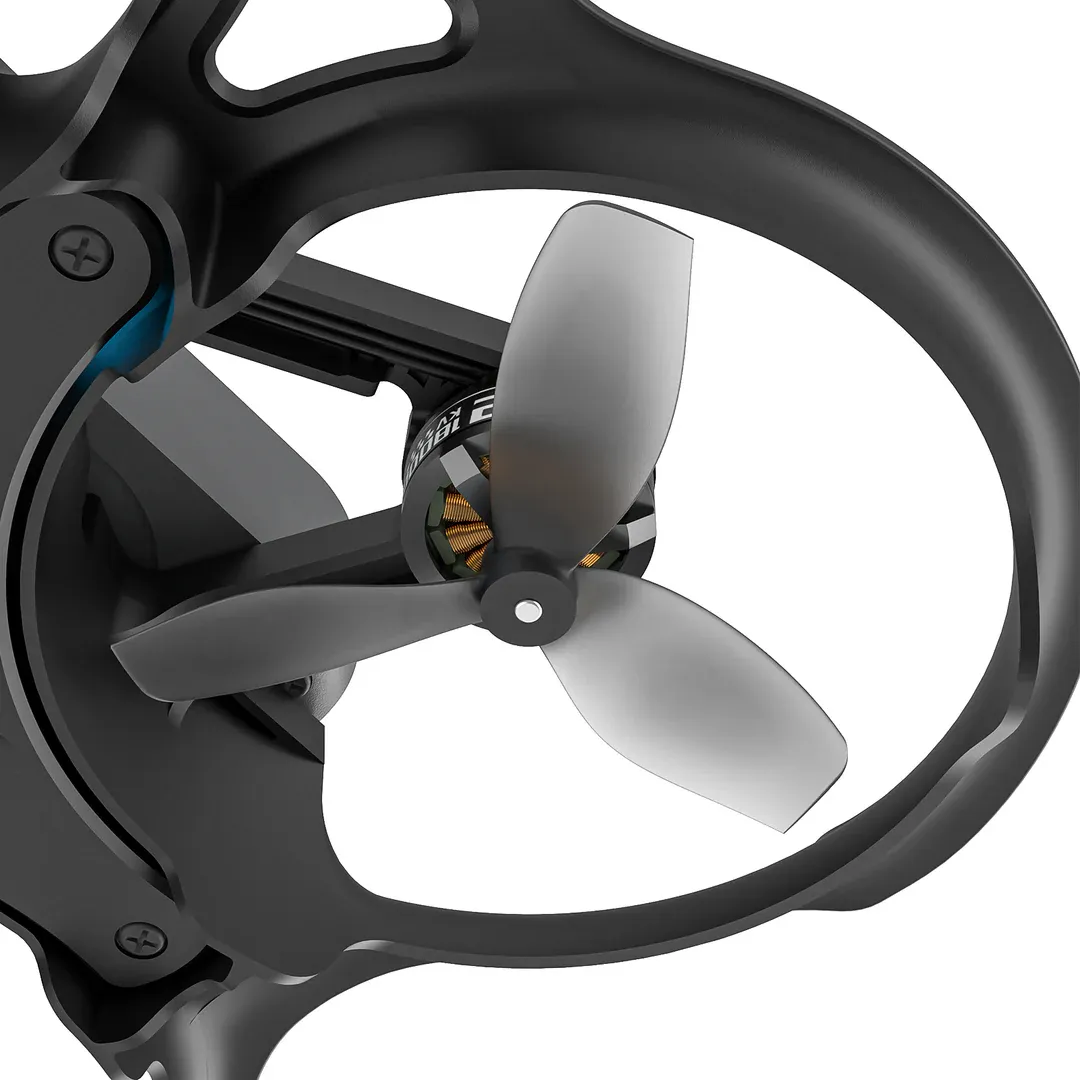

The design includes an inverted duct system for enhanced thrust and stability, fixed configuration port, modular battery for hassle-free installation, and a duct guard design for safe flights.

Fly Indoor and Outdoor

The durable construction and intuitive controls offer precise maneuverability for worry-free indoor and outdoor flying. Capture breathtaking moments with the high-quality camera and enjoy the thrill of real-time FPV.

Various Modes, Accessible to All

The Aquila16 offers N/S/M flight modes and supports three different speeds: Slow, Mid, and Fast. Turtle Mode allows the drone to flip over and resume flying after falling upside down.

Speed Modes under N Mode

Package Includes

• 1 * Aquila16 Brushless Quadcopter
• 4 * Beta-45mm 3-Blades Props (Spare Set)
• 2 * Aquila16 Exclusive Battery | 1100mAh
• 2 * Charging Adapter Cable
• 1 * BT2.0 Battery Charger and Voltage Tester V2
• 1 * 4Pin Adapter Cable
• 1 * Cross Screwdriver
• 1 * Exclusive Screw Set (Spare)
• 1 * Prop Removal Tool
• 1 * USB Type-C Adapter Board (Used in connection with the 4Pin adapter cable for FC configuration)

Recommended Parts

• Radio Transmitter: LiteRadio 2 SE Radio Transmitter
• Goggles: VR03 FPV Goggles
• Battery: Aquila16 Exclusive Battery (2PCS)
• Motor: 1102 | 18000KV Motor

FAQ

• Download the Manual for the Aquila16 Brushless Quadcopter.
• Download the Firmware for the Aquila16 Brushless Quadcopter.
• Learn how to replace the VTX Module of the Aquila16 Brushless Quadcopter.
• Understand the risk of battery detachment during severe crashes.

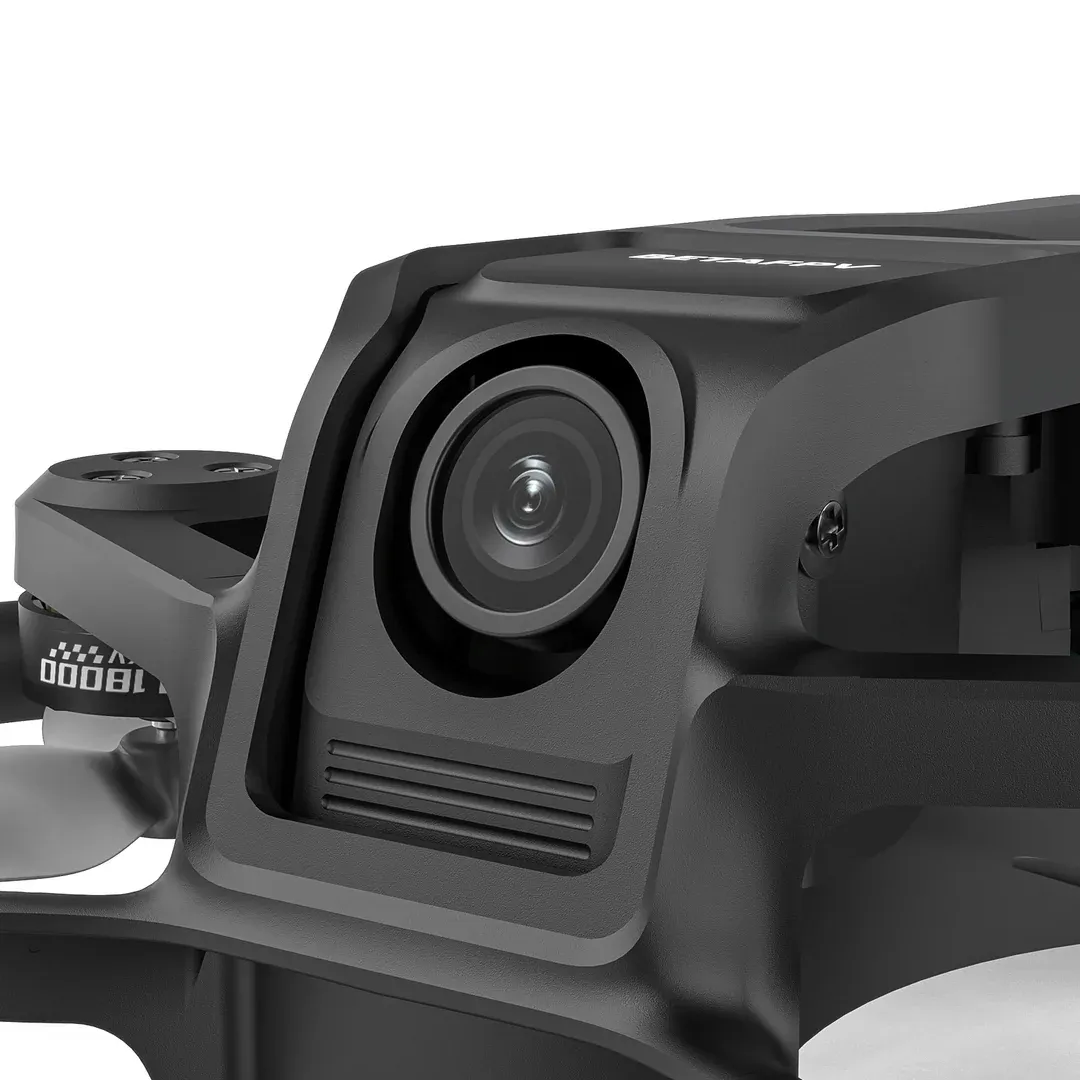

• Adjust the camera angle by loosening or tightening the screws on both sides.
• Learn more about ExpressLRS here.
