Air65

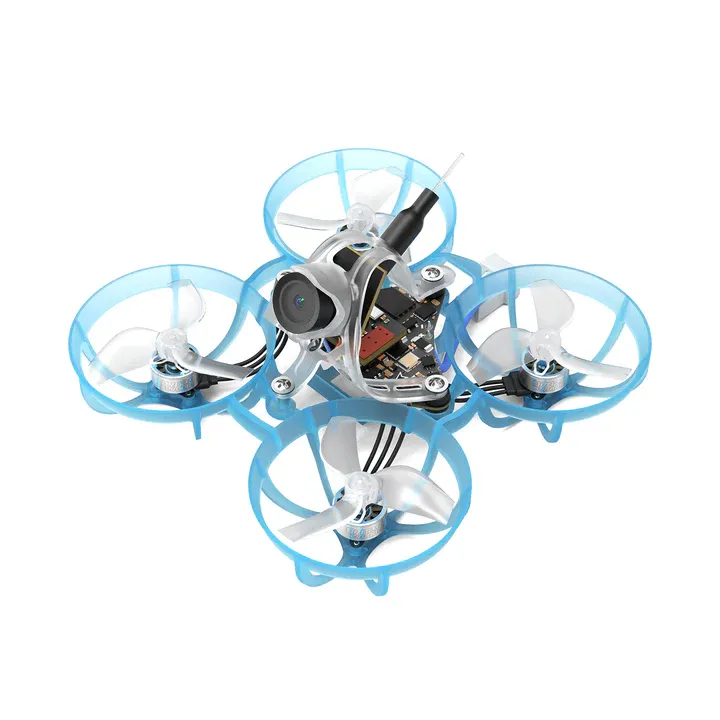

Air65 Brushless Whoop Quadcopter

Defying gravity and embarking on an unforgettable journey with Air65! Prepare for an explosive, now upgraded and more impressive than the Meteor Series. Weighing a mere 17g, yet boasting next-level performance. Equipped with Air Canopy, Air65 Brushless Whoop Frame, Air Brushless Flight Controller (4IN1), and the new optional LAVA 1S 260/300mAh Battery enhances the ultra-lightweight feature. Launching two propulsion system versions: Racing and Freestyle. Whether you crave high-speed agility or smooth, fluent flight, Air65 fulfills every pilot's desires. It reigns as the Ultralight King and Reaction Giant!

Acknowledgements

BETAFPV is immensely grateful to this testing team including "Don Johnson, Tokyo_Dom, BLACKHORSE, wKich, Travis, Coitti FPV, Tdog, Anthony Knight, Issac, Albert, sub250g, Tyranttfpv, Wk Breeze" for valuable ideas in the design of this Air65.

Key Features

• Experience a New Level of Lightweight Racing and Freestyle Version Flying: With our 1S 65mm Indoor Whoop, weighing just 17.1g, it offers an exhilarating and agile flying experience.
• Air Brushless Flight Controller (4IN1): The first 1S FC that uses the G473 processor with superior computing power, equipped with ICM42688P gyroscope. This all-in-one solution seamlessly integrates FC, ESC, OSD, and Onboard 5.8G 25mw~400mw VTX, and offers an optional ELRS receiver, weighing only 2.9g.
• Racing/Freestyle Version Propulsion Systems: Specifically designed for the lightweight 65mm whoop, delivering a thrilling flight experience tailored to the needs of every pilot.
• Discover the Air65: Accompanied by the Z-Folding LAVA Series battery, enabling the ultimate lightweight flight experience with unparalleled agility and weightlessness.
• Express Your Unique Style: Various part options available, from 65mm frames to canopies and propellers, offering a diverse selection of captivating colors. Combine with BETAFPV waterslide decals to effortlessly infuse your whoop drones with a personalized touch.

Specifications

• Item: Air65 Brushless Whoop Quadcopter

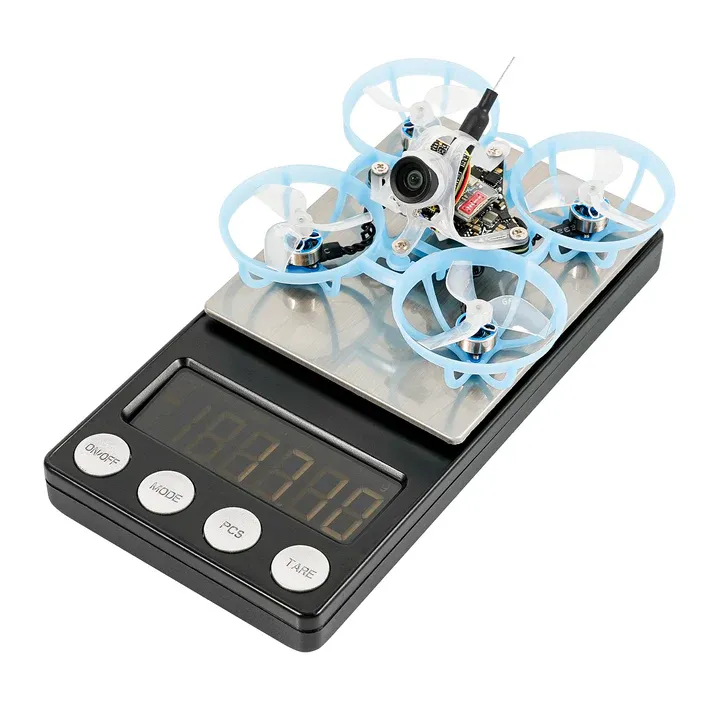

• Weight: 17.1g
• Wheelbase: 65mm
• Frame: Air65
• Canopy: Air Canopy
• FC & ESC: Air Brushless Flight Controller (4IN1 Version)
• VTX: Onboard 5.8G 25mw~400mw VTX
• Camera: C03 Camera
• Motor: 0702SE | 27000KV (Racing Version), 0702SE | 23000KV (Freestyle Version)
• Props: GF 1219S 3B (Racing Version), HQ 31mm Ultralight (Freestyle Version)
• Battery Connector: BT2.0 U Cable Pigtail
• Recommended Battery: LAVA 1S 260/300mAh
• Flight Time (4.35v-3.3v): 4min (LAVA 260mAh)
• RX Version: External ELRS 2.4G Lite

Comparison: Air65 & Meteor65

Detailed Description

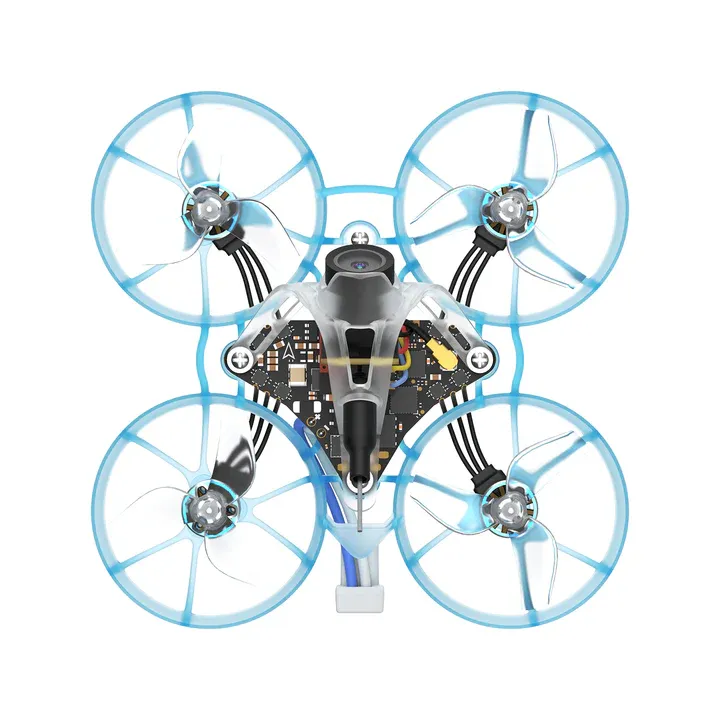

Flight Controller & ESC

The first 1S FC that uses the G473 processor, Air Brushless Flight Controller (4IN1) with balanced performance and lightness, only 2.9g. Powered and Industry-leading ICM42688P gyroscope, powering superior computing power and lightning-fast response times for precise flight execution compared to the F411. With multiple UART port options, it supports various function expansions. This all-in-one solution seamlessly integrates FC, ESC, OSD, and VTX, and even offers an optional ELRS receiver. The micro-sized OSD chip is customed. Immerse yourself effortlessly in the racing and freestyle world of Finger-Tip control, where unparalleled precision and responsiveness of the Air65 await.

Upgraded Air Canopy

Experience high-quality, clear, and sharper images with the lightweight C03 FPV Micro Camera, weighing just 1.45g. We've redesigned the Air Canopy structure to be more flexible, impact-resistant, and durable. The improved bending effect enhances flexibility, reduces the chances of breakage, and greatly enhances explosion resistance for easier installation. Effortlessly accommodates an assortment of Micro and Nano Analog cameras. Supporting angle adjustment from 25° to 50°. With it, Air65 can chase the limit of freestyle and racing victory worry less.

Propulsion System

Whether Freestyle or Racing Version, Air65 can remain agile enough to effortlessly conquer racing tracks, catering to the diverse needs of pilots. Racing Version focuses on high-speed and high-agility flight, utilizing the 0702SE | 27000KV Motors and GF 1219S 3B Props for incredible speed bursts and agile steering. For a smooth and elegant free flight experience, the Freestyle Version features the 0702SE | 23000KV Motors and HQ 31mm Ultralight 3B Props, allowing for timely responses and precise follow-up actions. This winning combo propels the Air65 far beyond any limitations in terms of speed and maneuverability.

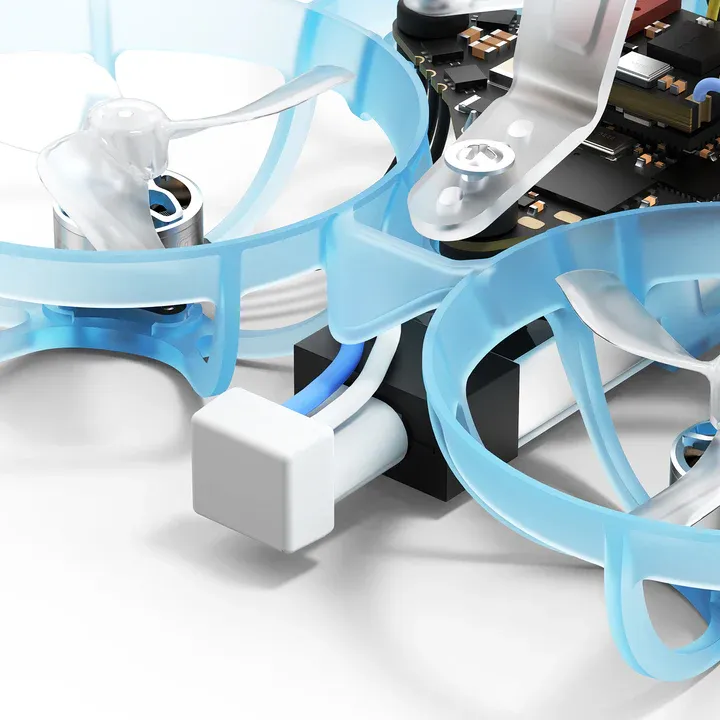

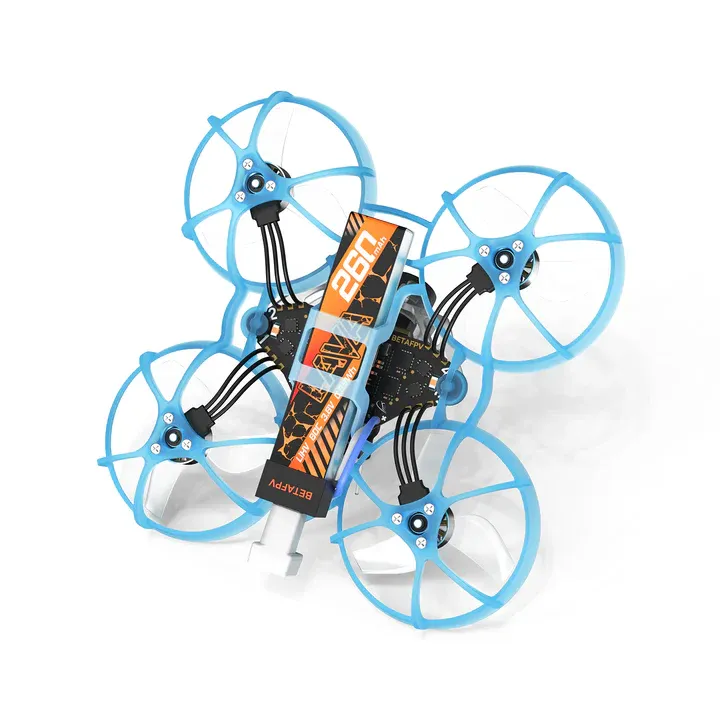

Ultralight LAVA 1S 260/300mAh Battery

A compact premier for Air65. With more concentrated center gravity, it offers crisper response, greater acceleration, and enhanced maneuverability. Featuring the groundbreaking Z-Folding Process, this LiHV battery exceeds conventional capacity and discharge thresholds. Equipped with the BT2.0 U Cable Pigtail, saying goodbye to folding cables, for easy plugging and an extended lifespan. Lighter weight by reducing pigtail length. Achieve the ultimate lightweight choice for drone racing or freestyle.

Air65 Frame

To enhance the flying experience, DIY enthusiasts have diligently worked on reducing the weight of the 65mm whoop drones, especially frames for an ultra-light structure. We upgraded the Meteor65 Micro Frame to the Air65 Frame, which achieves a remarkable weight reduction from 3.64g to 2.67g. It maintains exceptional strength and durability while introducing a new motor fixed slot, and optimizing a low-profile design. Having six color choices, it indisputably emerges as the top topgallant choice for pilots seeking an unparalleled ultra-light Sub18g 65mm 1S Whoop drone and personality.

Recommended Parts

• Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
• Goggles: VR03 FPV Goggles, VR02 FPV Goggles
• FC: Air Brushless Flight Controller (4IN1)
• Receiver: ELRS Lite Receiver, ELRS Nano Receiver
• Battery: LAVA 1S 260mAh 80C Battery, LAVA 1S 300mAh 75C Battery
• Props: HQ 31mm Ultralight 3B Props, GF 1219S 3B Props
• Colorful Frame: Air65 Brushless Whoop Frame
• Colorful Canopy: Air Canopy
• Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
• Sticker: BETAFPV Waterslide Decals

Package Includes

• 1 x Air65 Brushless Whoop Quadcopter
• 1 x Air Canopy
• 4 x GF 1219S 3B Props (Racing Version) / HQ
